ADG901/ADG902
Rev. B | Page 6 of 16

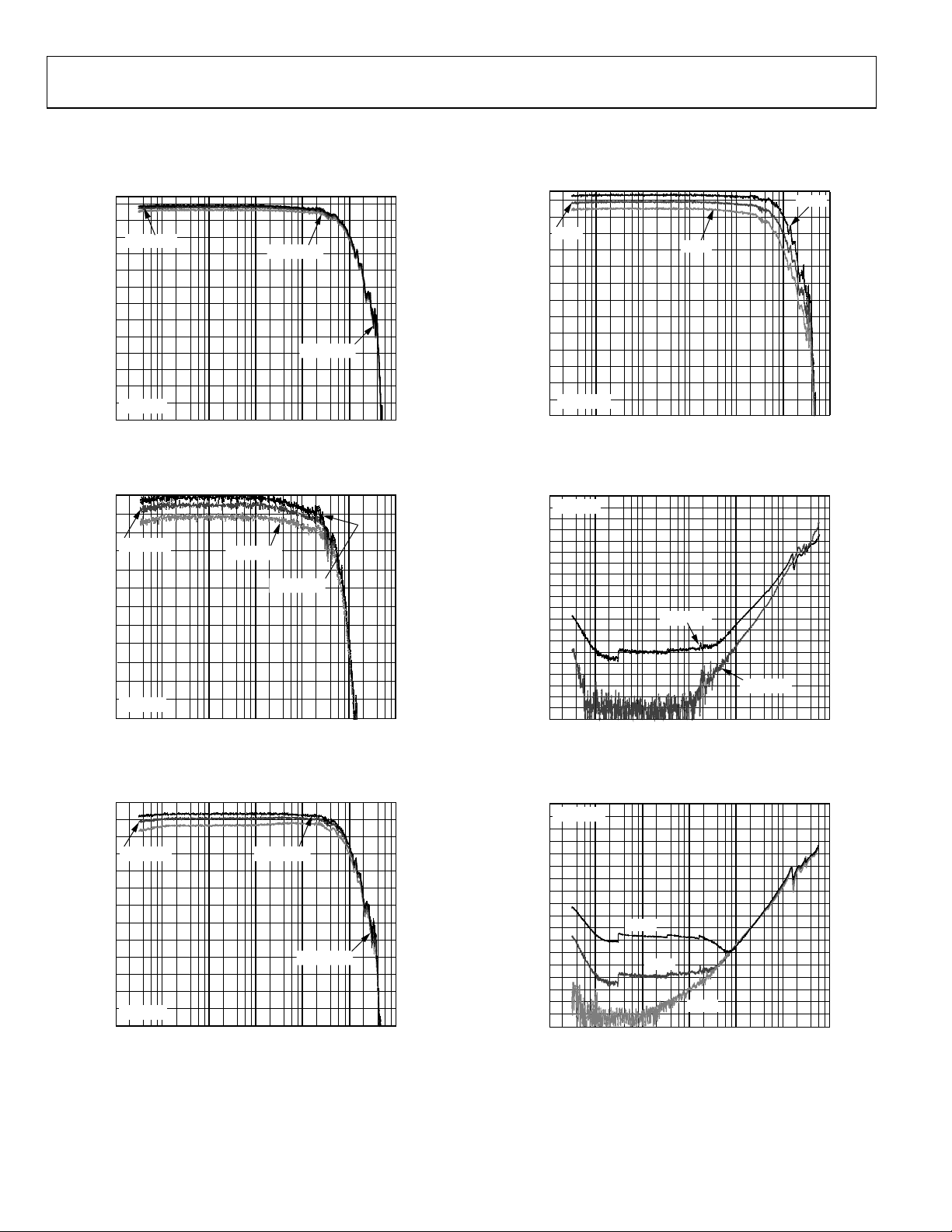

TYPICAL PERFORMANCE CHARACTERISTICS
–0.4
–3.0
–2.2
–2.0
–1.8
–1.6
–1.4
–2.8
–2.6
–2.4
–1.2
–1.0
–0.8
–0.6
10k 100k 100M1M 10M 1G
10G
03336-005
FREQUENCY (Hz)
INSERTION LOSS (dB)
T
A
= 25°C
V
DD
= 2.5V
V
DD
= 2.75V
V
DD
= 2.25V
Figure 5. Insertion Loss vs. Frequency over Supplies (S12 and S21)
–0.40
–1.00
–0.85
–0.80
–0.75
–0.70
–0.65
–0.95
–0.90
–0.60
–0.55
–0.50
–0.45
10k 100k 100M1M 10M 1G
10G
03336-006
FREQUENCY (Hz)
INSERTION LOSS (dB)
V
DD
= 2.75V
V
DD
= 2.25V
V
DD
= 2.5V
T
A
= 25°C
Figure 6. Insertion Loss vs. Frequency over Supplies (S12 and S21)
(Zoomed Figure 5 Plot)
–0.4
–3.0
–2.2
–2.0
–1.8
–1.6
–1.4
–2.8
–2.6
–2.4
–1.2
–1.0
–0.8
–0.6
10k 100k 100M1M 10M 1G
10G
03336-007
FREQUENCY (Hz)
INSERTION LOSS (dB)
V
DD
= 1.8V
V
DD
= 1.95V
V
DD
= 1.65V
T
A
= 25°C
Figure 7. Insertion Loss vs. Frequency over Supplies (S12 and S21)
–0.4
–3.0
–2.2
–2.0
–1.8
–1.6
–1.4
–2.8
–2.6
–2.4
–1.2
–1.0
–0.8
–0.6
10k 100k 100M1M 10M 1G
10G
03336-008
FREQUENCY (Hz)
INSERTION LOSS (dB)
+25°C
+85°C
–40°C
V
DD
= 2.5V
Figure 8. Insertion Loss vs. Frequency over Temperature (S12 and S21)
0
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
–95
–85
–75
–65
–55
–45
–35
–25
–15
–5
10k 100k 100M1M 10M 1G
10G
03336-009
FREQUENCY (Hz)
ISOLATION (dB)
V
DD
= 2.5V
V
DD
= 1.8V
T
A
= 25°C
Figure 9. OFF Isolation vs. Frequency over Supplies (S12 and S21)
0
–90
–80
–70
–60
–50
–40
–30
–20
–10
–85
–75
–65
–55
–45
–35
–25
–15
–5
10k 100k 100M1M 10M 1G
10G
03336-010
FREQUENCY (Hz)
ISOLATION (dB)
+85°C
+25°C
–40°C
V
DD
= 2.5V
Figure 10. Off Isolation vs. Frequency over Temperature (S12 and S21)
