ADC0808S125_ADC0808S250_4 © IDT 2012. All rights reserved.
Product data sheet Rev. 04 — 2 July 2012 2 of 22
Integrated Device Technology
ADC0808S125/250
Single 8-bit ADC, up to 125 MHz or 250 MHz
Optical networking
Wir
eless Local Area Network (WLAN) infrastructure
T
ape drive applications
4. Ordering information
Table 1. Ordering information
Type number Sampling frequency
(MHz)
Package
Name Description Version
ADC0808S125HW-C1 125 HTQFP48 plastic thermal enhanced thin quad flat package;
48 leads; body 7 7 1 mm; exposed die pad
SOT545-2
ADC0808S250HW-C1 250
5. Block diagram
8 8
001aai267
TRACK
AND
HOLD
ADC
CORE
LATCH
LATCH
RESISTOR
LADDERS
CLOCK DRIVER
OUTPUTS
ENABLE
CMADC
REFERENCE
INTERNAL
REFERENCE
ADC0808S
U/I
INN
IN
DEL0
DEL1
CCS
17
39
38
1929
33
32
30
FSIN/
REFSEL
3736
40
26
21
20
CCSSEL
D0 to D7
OTC
IR
CMADC
CLKSEL
CLK+ CLK−
CE_N
LATCH

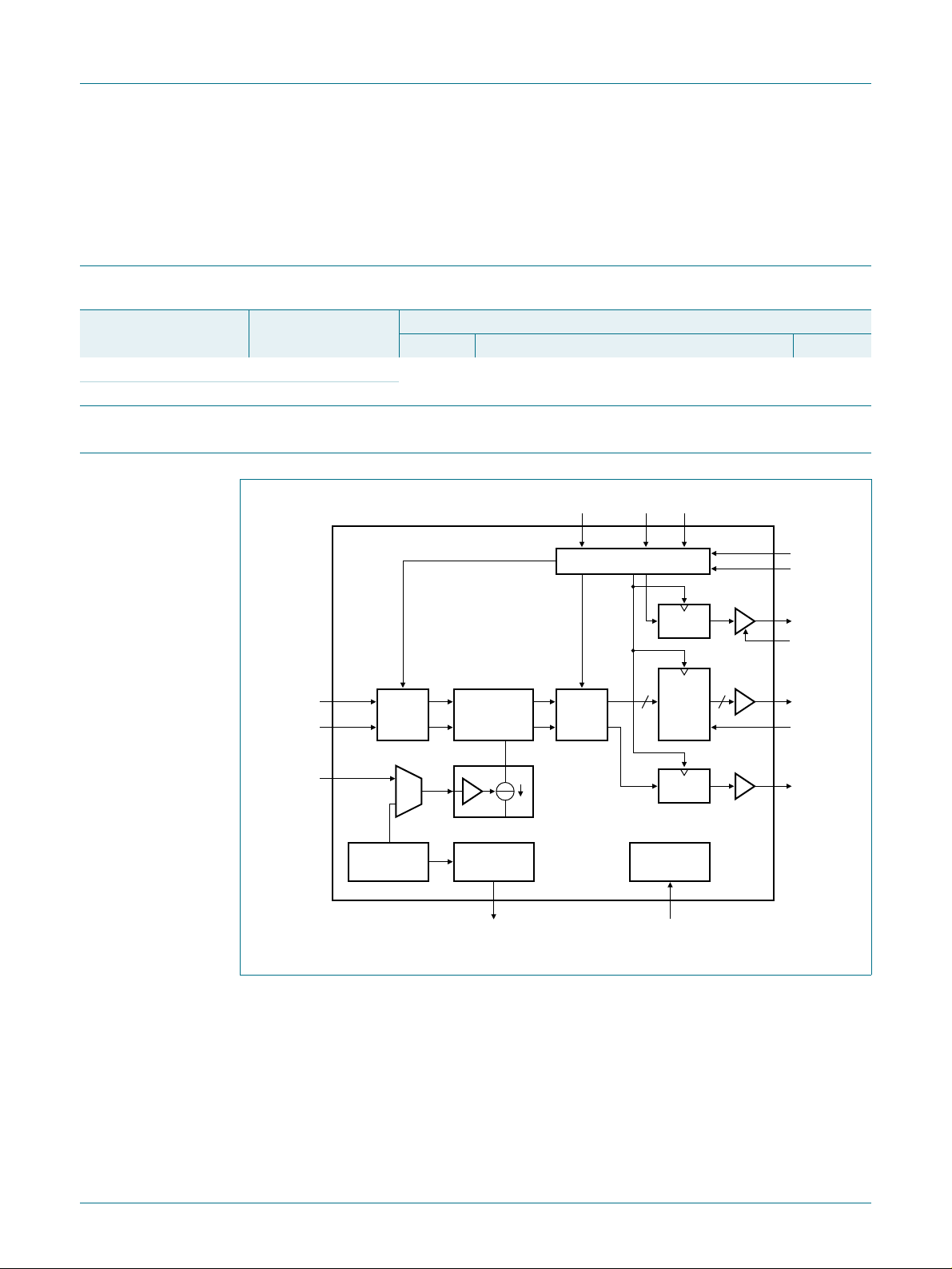

Fig 1. Block diagram
