Product data sheet Rev. 03 — 25 August 2009 5 of 76
NXP Semiconductors
P89CV51RB2/RC2/RD2
80C51 with 1 kB RAM, SPI
5.2 Pin description

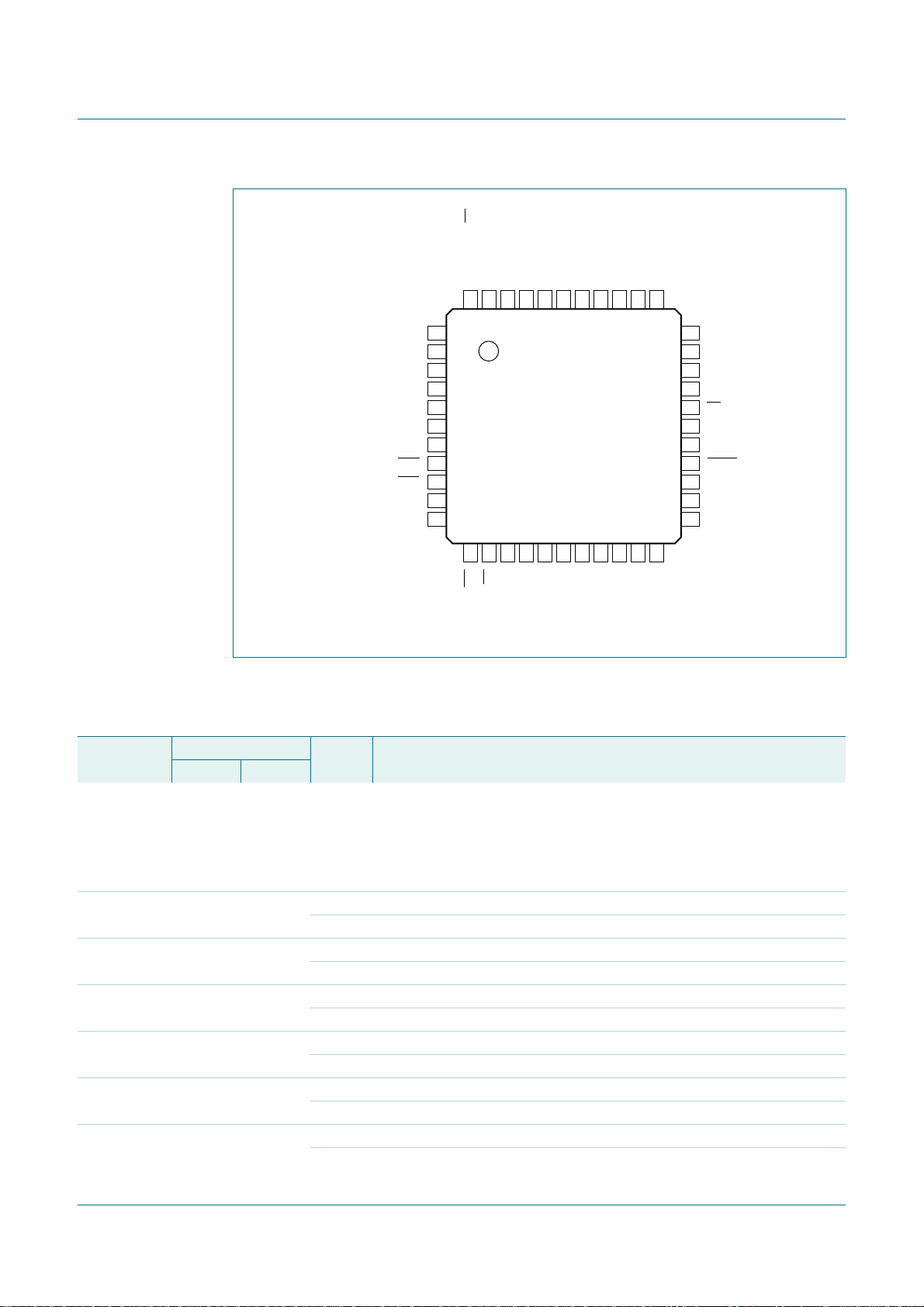

Fig 3. TQFP44 pin configuration
P89CV51RB2/RC2/RD2
P1[5]/CEX2/MOSI P0[4]/AD4
P1[6]/CEX3/MISO P0[5]/AD5
P1[7]/CEX4/SPICLK P0[6]/AD6
RST P0[7]/AD7
P3[0]/RXD
n.c.
P3[1]/TXD
P2[7]/A15
P3[4]/T0 P2[6]/A14
P3[5]/T1 P2[5]/A13
P1[4]/CEX1/SS
P1[3]/CEX0
XTAL2 P1[2]/ECI
XTAL1 P1[1]/T2EX
V
SS
P1[0]/T2
n.c. n.c.
P2[0]/A8 V
DD
P2[1]/A9 P0[0]/AD0
P2[2]/A10 P0[1]/AD1
P2[3]/A11 P0[2]/AD2
P2[4]/A12 P0[3]/AD3
002aac961
EA
ALE
PSEN
P3[6]/WR
P3[7]/RD
P3[3]/INT1
P3[2]/INT0
n.c.
1
2
3
4
5
6
7
8
9
10
11
33
32
31
30
29
28
27
26
25
24
23
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
Table 3. P89CV51RB2/RC2/RD2 Pin description
Symbol Pin Type Description
PLCC44 TQFP44
P0[0] to P0[7] I/O Port 0: Port 0 is an 8-bit open-drain bidirectional I/O port. Port 0 pins that
have 1s written to them float, and in this state can be used as
high-impedance inputs. Port 0 is also the multiplexed low-order address
and data bus during accesses to external code and data memory. In this
application, it uses strong internal pull-ups when transitioning to 1s.
External pull-ups are required when used as a general purpose I/O port.
P0[0]/AD0 43 37 I/O P0[0] — Port 0 bit 0.
I/O AD0 — Address/data bit 0.
P0[1]/AD1 42 36 I/O P0[1] — Port 0 bit 1.
I/O AD1 — Address/data bit 1.
P0[2]/AD2 41 35 I/O P0[2] — Port 0 bit 2.
I/O AD2 — Address/data bit 2.
P0[3]/AD3 40 34 I/O P0[3] — Port 0 bit 3.
I/O AD3 — Address/data bit 3.
P0[4]/AD4 39 33 I/O P0[4] — Port 0 bit 4.
I/O AD4 — Address/data bit 4.
P0[5]/AD5 38 32 I/O P0[5] — Port 0 bit 5.
I/O AD5 — Address/data bit 5.
