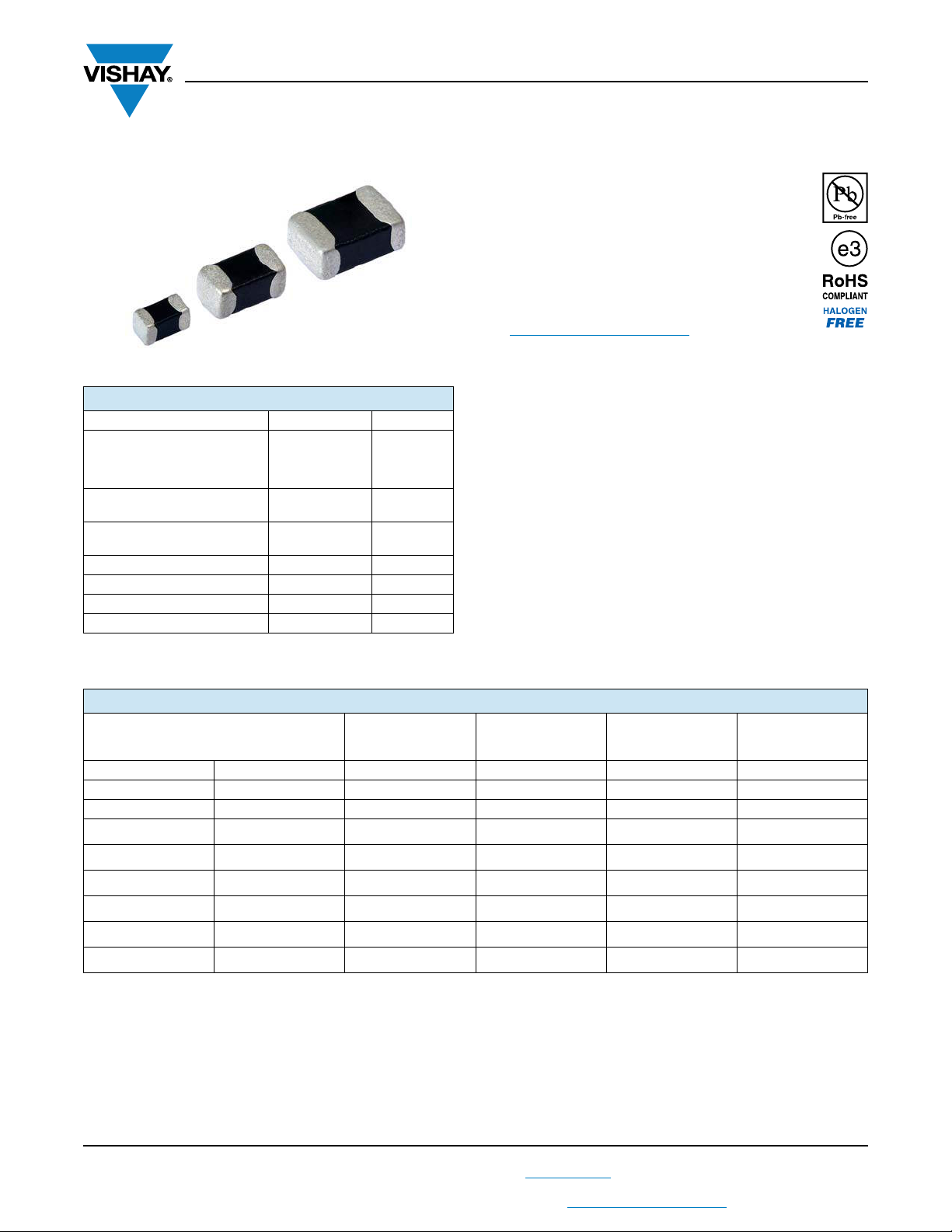

MLV0603E3
www.vishay.com
Vishay BCcomponents
Revision: 22-Apr-15
1
Document Number: 29108
For technical questions, contact: nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SMD 0603 Multilayer Varistor
FEATURES
• Surface mount multilayer surge suppressor
• Inherent bidirectional clamping
• Excellent energy/volume ratio
• Suitable for reflow soldering
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Over-voltage and transient voltage protection:
• Data lines and I/O port protection
• Protection against ESD transients
• On-board protection of IC’s and transistors
• Modem protection
• LCD protection
DESCRIPTION
Size 0603 (1608M) multilayer chip varistor with NiSn
terminations.
PACKAGING
Available in 8 mm paper tape, component pitch 4 mm on
180 mm reels containing 4000 pieces.
Notes
• Sinusoidal voltage assumed as normal operating condition.
If a non-sinusoidal voltage is present, the crest voltage x 0.707 should be used for type selection.
• Breakdown voltage at a current of 1 mA, measured according to 4.5 of IEC 61051-1.
• Parts are not recommended for automotive applications.
QUICK REFERENCE DATA
PARAMETER VALUE UNIT
Maximum continuous voltage
DC 5.6 to 30.0 V
AC 4.0 to 25.0 V
Maximum clamping voltage
at 1 A
15.5 to 65 V
Capacitance range
(at 1 MHz)
150 to 825 pF
Maximum energy (10/1000 μs) 0.1 J
Maximum peak current 30 A
Operating temperature range -55 to 125 °C
Weight ± 0.005 g
ELECTRICAL DATA AND ORDERING INFORMATION
WORKING VOLTAGE
BREAKDOWN
VOLTAGE
MAXIMUM
CLAMPING
VOLTAGE
TYPICAL
CAPACITANCE
PART NUMBER
V
RMS
V
DC
V
b
V
C
CSAP
V V V V pF MLV0603E3
< 10 μA 1 mA 1 A, 8/20 μs 1 MHz
4.0 5.6 7.1 to 9.3 15.5 825 0403T
7.0 9.0 11.0 to 14.0 20.0 550 0703T
11.0 14.0 16.0 to 20.0 30.0 425 1103T
14.0 18.0 23.0 to 28.0 40.0 225 1403T
20.0 26.0 31.0 to 38.0 58.0 160 2003T
25.0 30.0 37.0 to 46.0 65.0 150 2503T
