Core Independent Peripherals for 8-bit PIC Microcontrollers
Configurable Logic Cell (CLC)
Easily Create Custom Combination and Sequential Logic
Key Features
■ User configurable real time logic control
• CLC configuration GUI for quick turn development
■ Combinational Logic Functions
• AND/OR/XOR/NOT/NAND/NOR/XNOR
■ State Functions/Clock
• D Flip-Flop, JK Flip-Flop D Latch, SR Latch
■ Input sources
• Pins
• Peripherals
■ Output available to:
• External pins
• Other peripherals
■ Operation while in Sleep

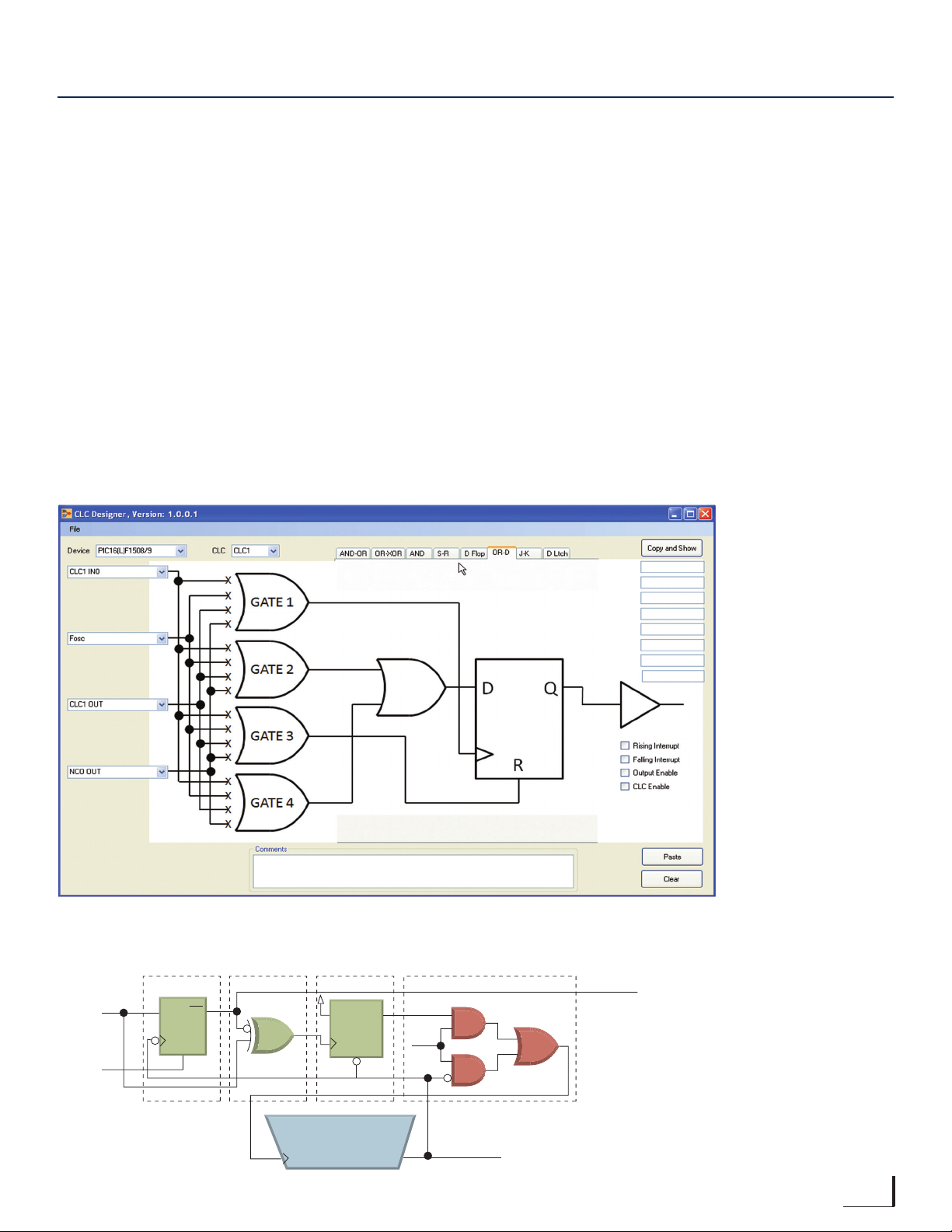

CLC Designer: GUI to Simplify Design
Example: Phase Shifted Data Modulator
Combinational and Sequential logic can easily be designed using on-chip hardware.
CLC1
S
Q1
R
D
Q2
S
R
D
CLC2
Data Output
Code Rese
t
Data Input
CLC3 CLC4
FOSC
Clock Out
NCO
NCO
CLK NCOOUT
8-bit Peripheral Highlights
Benefits
■ Increases on chip interconnection of peripherals
and I/O
■ Integrates hardware functions and saves board space
■ Software control of Combinational/Sequential Logic
■ Saves program code space and frees up CPU cycles
Example Applications
■ Data modulation
■ Power sequencing
■ Manchester/IrDA encoder
■ Event sequencing
■ Conditional signaling
■ General purpose logic
■ Customizable circuitry
