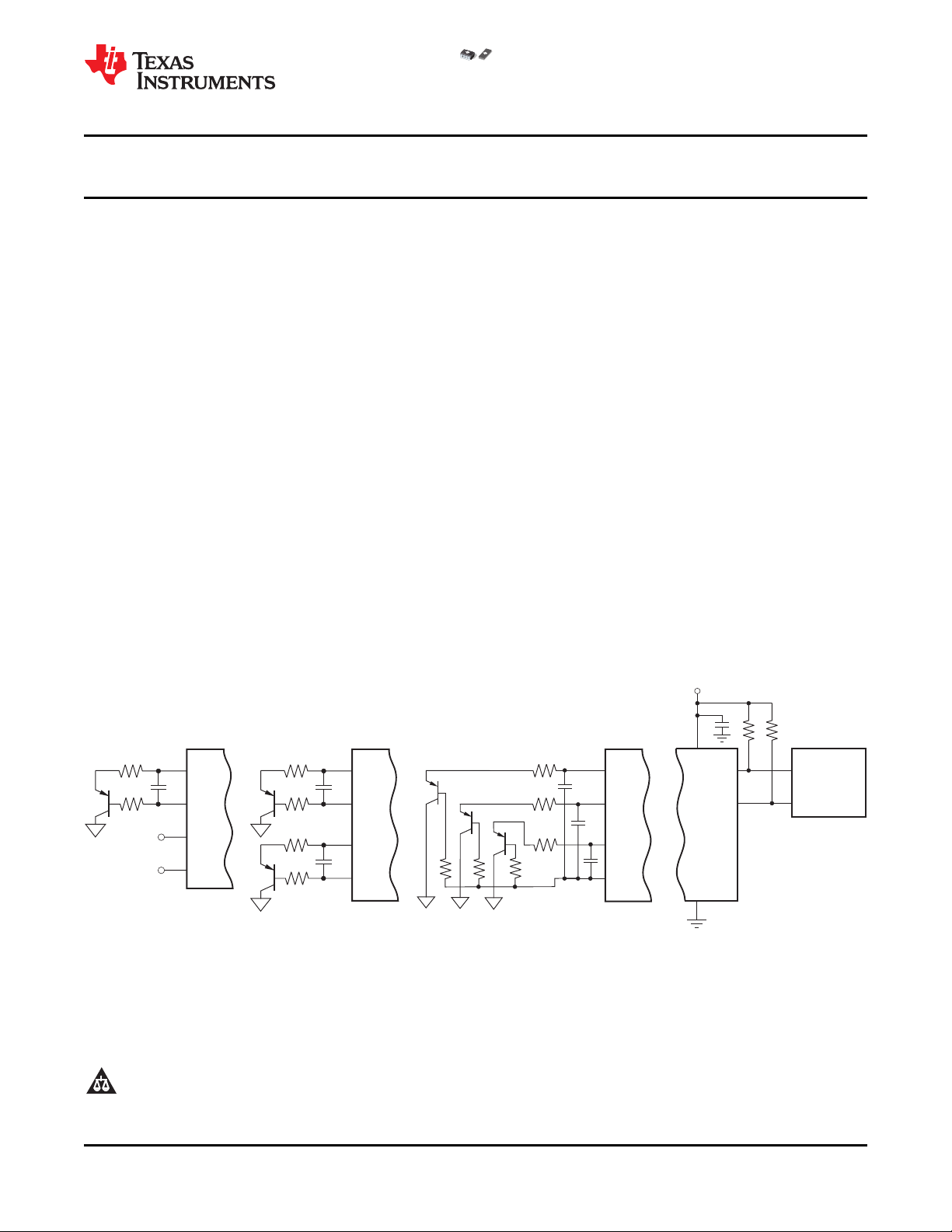

+5V
SCL
GND
SDA
V+
SMBus
Controller
8
5
7
6
TMP421
DXP
DXN
A1
A0
1
2
3
4
1ChannelLocal
1ChannelRemote
TMP422
DX1
DX2
DX3
DX4
1
2
3
4
1ChannelLocal
2ChannelsRemote
TMP423
DXP1
DXP2
DXP3
DXN
1
2
3
4
1ChannelLocal
3ChannelsRemote
TMP421
TMP422
TMP423
www.ti.com
SBOS398C –JULY 2007–REVISED MAY 2012
±1°C Remote and Local TEMPERATURE SENSOR
Check for Samples: TMP421, TMP422, TMP423
1
FEATURES
DESCRIPTION
The TMP421, TMP422, and TMP423 are remote
234
• SOT23-8 and DSBGA (WCSP) PACKAGES
temperature sensor monitors with a built-in local
• ±1°C REMOTE DIODE SENSOR (MAX)
temperature sensor. The remote temperature sensor
• ±1.5°C LOCAL TEMPERATURE SENSOR (MAX)
diode-connected transistors are typically low-cost,
NPN- or PNP-type transistors or diodes that are an
• SERIES RESISTANCE CANCELLATION
integral part of microcontrollers, microprocessors, or
• n-FACTOR CORRECTION
FPGAs.
• TWO-WIRE/ SMBus™ SERIAL INTERFACE
Remote accuracy is ±1°C for multiple IC
• MULTIPLE INTERFACE ADDRESSES
manufacturers, with no calibration needed. The two-
• DIODE FAULT DETECTION
wire serial interface accepts SMBus write byte, read
byte, send byte, and receive byte commands to
• RoHS COMPLIANT AND NO Sb/Br
configure the device.
APPLICATIONS
The TMP421, TMP422, and TMP423 include series
resistance cancellation, programmable non-ideality
• PROCESSOR/FPGA TEMPERATURE
factor, wide remote temperature measurement range
MONITORING
(up to +150°C), and diode fault detection.
• LCD/ DLP
®
/LCOS PROJECTORS
The TMP421, TMP422, and TMP423 are all available
• SERVERS
in a SOT23-8 package. The TMP421C is also
• CENTRAL OFFICE TELECOM EQUIPMENT
available in a DSBGA (WCSP) package.
• STORAGE AREA NETWORKS (SAN)
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2DLP is a registered trademark of Texas Instruments.
3SMBus is a trademark of Intel Corporation.
4All other trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2007–2012, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
