XC6210 Series
High Current, High Speed LDO Regulators
■
FEATURES
Maximum Output Current : More than 700mA
(800mA limit, TYP.)
(1.6V<
VOUT(T)<5.0V)
Dropout Voltage : 50mV @ 100mA
: 100mV @ 200mA
Operating Voltage Range : 1.5V ~ 6.0V
Output Voltage Range : 0.8V ~ 5.0V (0.05V increments)
Highly Accurate : +
2%(The setting voltage accuracy)
Low Power Consumption : 35μA (TYP.)
High Ripple Rejection : 60dB @1kHz
Operational Ambient Temperature
: - 40℃ ~ 85℃
CMOS
Low ESR Capacitor Compatible
Packages : SOT-25
SOT-89-5
USP-6B
Environmentally Friendly : EU RoHS Compliant, Pb Free
■
GENERAL DESCRIPTION
The XC6210 series are precise, low noise, high current, positive voltage low dropout regulators. They are fabricated using
Torex’s CMOS process.
The series features a voltage reference, an error amplifier, a current limiter, and a phase compensation circuit plus a driver transistor.
With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and
can accordingly be used for a longer time.
The series is also compatible with low ESR ceramic capacitors which give added output stability.
The output voltage of the LDO is selectable in 0.05V increments within the range of 0.8V to 5.0V.
The current limiter's foldback circuit also operates as the output current limiter and the output pin protection.
The IC's internal regulator circuit can be placed in stand-by mode via the CE function. In the stand-by mode, power
consumption is greatly reduced.
■APPLICATIONS
●CD-ROMs, CD-R / RW drive
●DVD drive
●HDD drive
●Cameras, Video recorders
●Portable AV equipment
●Battery powered equipment

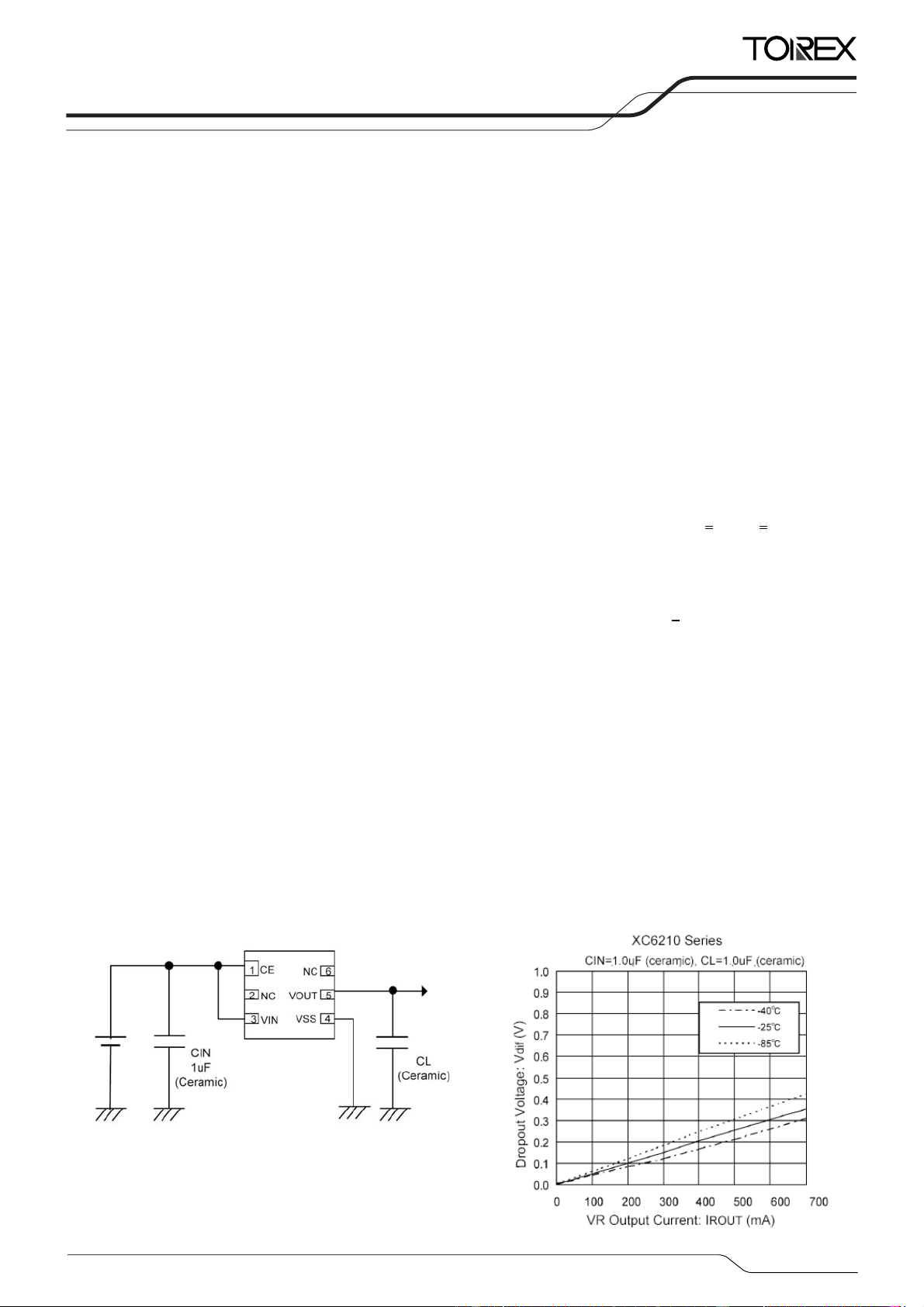

■TYPICAL APPLICATION CIRCUIT
■
TYPICAL PERFORMANCE
CHARACTERISTICS
●Dropout Voltage vs. Output Current
ETR0317_004
