8 MicroSteps8 MicroSteps
1 Step1 Step
PHASE A
PHASE B
VREF A
VREF B
Current A
Current B
1 Step
1
2
3
The Micro Step
www.ti.com

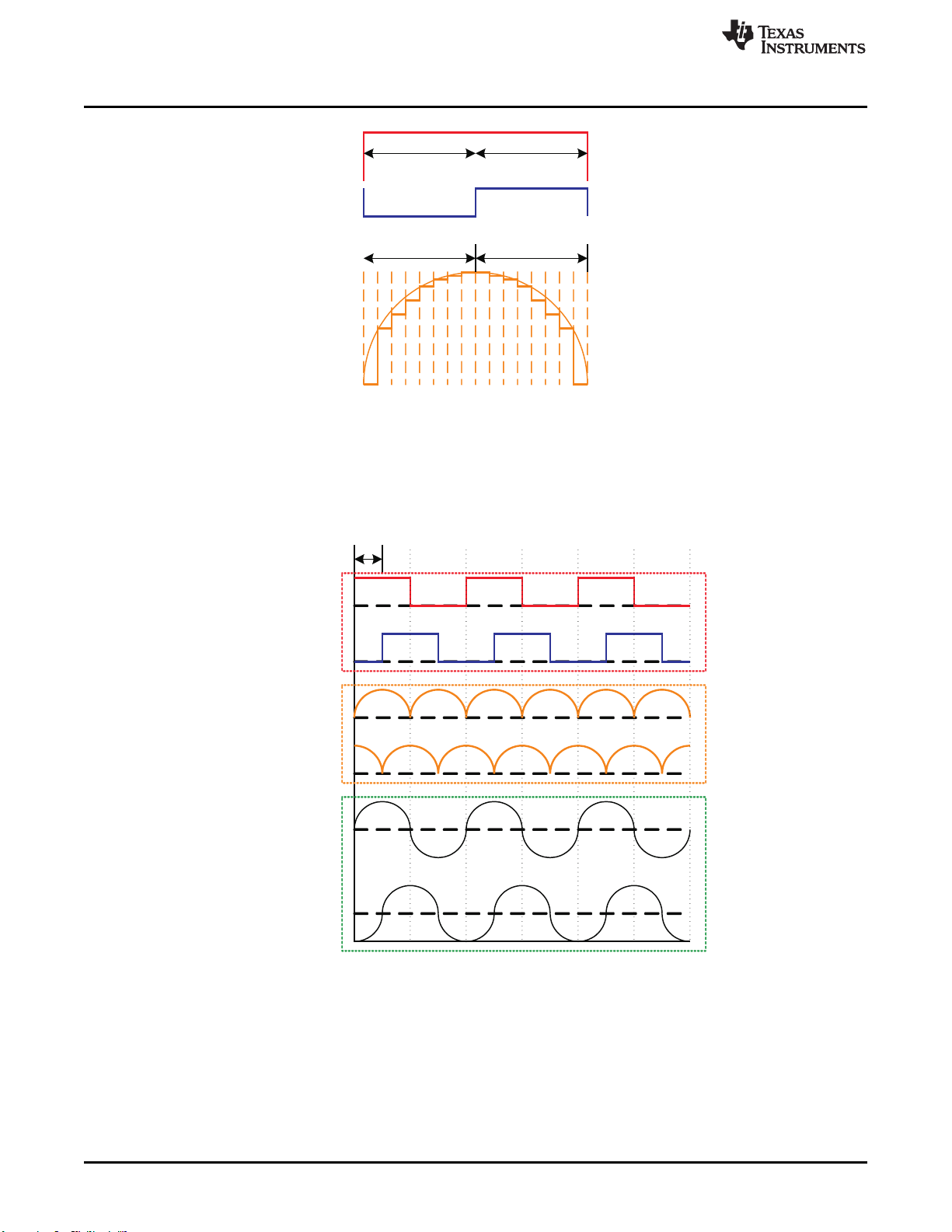

Figure 2. Micro Step
Because the DRV8812 has the capability to regulate winding current, and said current is directly
proportional to the VREF input, it is possible to embed the prospective waveform at the current side.
Figure 3 shows the result of embedding said waveform into the winding current, which is the concept
behind this application note.
Figure 3. Embedded Waveform Into Winding Current
A microcontroller, such as the MSP430F1612 and utilizing GPIO outputs, will drive the DRV8812’s PHASE
inputs in the alternating fashion we saw on previous figures. However, and at the same time, the VREF
pins will be modulated by using the two DAC outputs to superimpose a sine wave crest.
As a result, the motor windings see a full sine wave of current being applied to them. Because the current
is segmented in smaller steps, the rotor also moves in smaller steps.
4
High Resolution Microstepping Driver With the DRV88xx Series SLVA416–September 2010
Submit Documentation Feedback
Copyright © 2010, Texas Instruments Incorporated
