© Semiconductor Components Industries, LLC, 2015
November, 2015 − Rev. 0
1 Publication Order Number:
KAI−47051/D
KAI-47051
8856 (H) x 5280 (V) Interline
CCD Image Sensor
Description
The KAI−47051 Image Sensor is a 47−megapixel CCD designed for
the most demanding inspection and surveillance applications. Based
on an advanced 5.5−micron Interline Transfer CCD Platform, the
sensor features broad dynamic range and excellent imaging
performance and uniformity. Full resolution readout of up to 7 frames
per second is enabled through a multi−tap output architecture, and a
vertical overflow drain structure suppresses image blooming and
enables electronic shuttering for precise exposure control.
The sensor is electrically similar to other devices in the 5.5−micron
Interline Transfer CCD Platform, allowing cameras designed for that
platform to be leveraged in support of this high−resolution device.
Table 1. GENERAL SPECIFICATIONS
Parameter Typical Value
Architecture Interline CCD, Progressive Scan
Total Number of Pixels 8880 (H) × 5392 (V)
Number of Effective Pixels 8880 (H) × 5304 (V)
Number of Active Pixels 8856 (H) × 5280 (V)
Pixel Size
5.5 mm (H) × 5.5 mm (V)
Active Image Size 48.7 mm (H) × 29.0 mm (V)
56.7 mm (diagonal)
Aspect Ratio 5:3
Number of Outputs 8 or 16
Charge Capacity 20,000 electrons
Output Sensitivity
38 mV/e
−
Quantum Efficiency
Pan (−AXA, −QXA)
R, G, B (−FXA, −QXA)
43%
28%, 35%, 38%
Read Noise (f = 40 MHz) 10 e
−
rms
Dark Current
Photodiode / VCCD
7 / 140 e
−
/s
Dark Current Doubling Temp
Photodiode / VCCD
7°C / 9°C
Dynamic Range 66 dB
Charge Transfer Efficiency 0.999999
Blooming Suppression > 300 X
Smear −100 dB
Image Lag < 10 electrons
Maximum Pixel Clock Speed 40 MHz
Maximum Frame Rate
8 Outputs / 16 Outputs
3.5 fps / 7.0 fps
Package Options 201 Pin PGA
Cover Glass AR Coated, 2-Sides
NOTE: All Parameters are specified at T = 40°C unless otherwise noted.
Features
• Bayer Color Pattern, Sparse Color Filter
Pattern, and Monochrome Configurations
• Progressive Scan Readout
• Flexible Readout Architecture
• High Frame Rate
• High Sensitivity
• Low Noise Architecture
• Excellent Smear Performance
Applications
• Industrial Imaging and Inspection
• Aerial Surveillance
• Security
www.onsemi.com

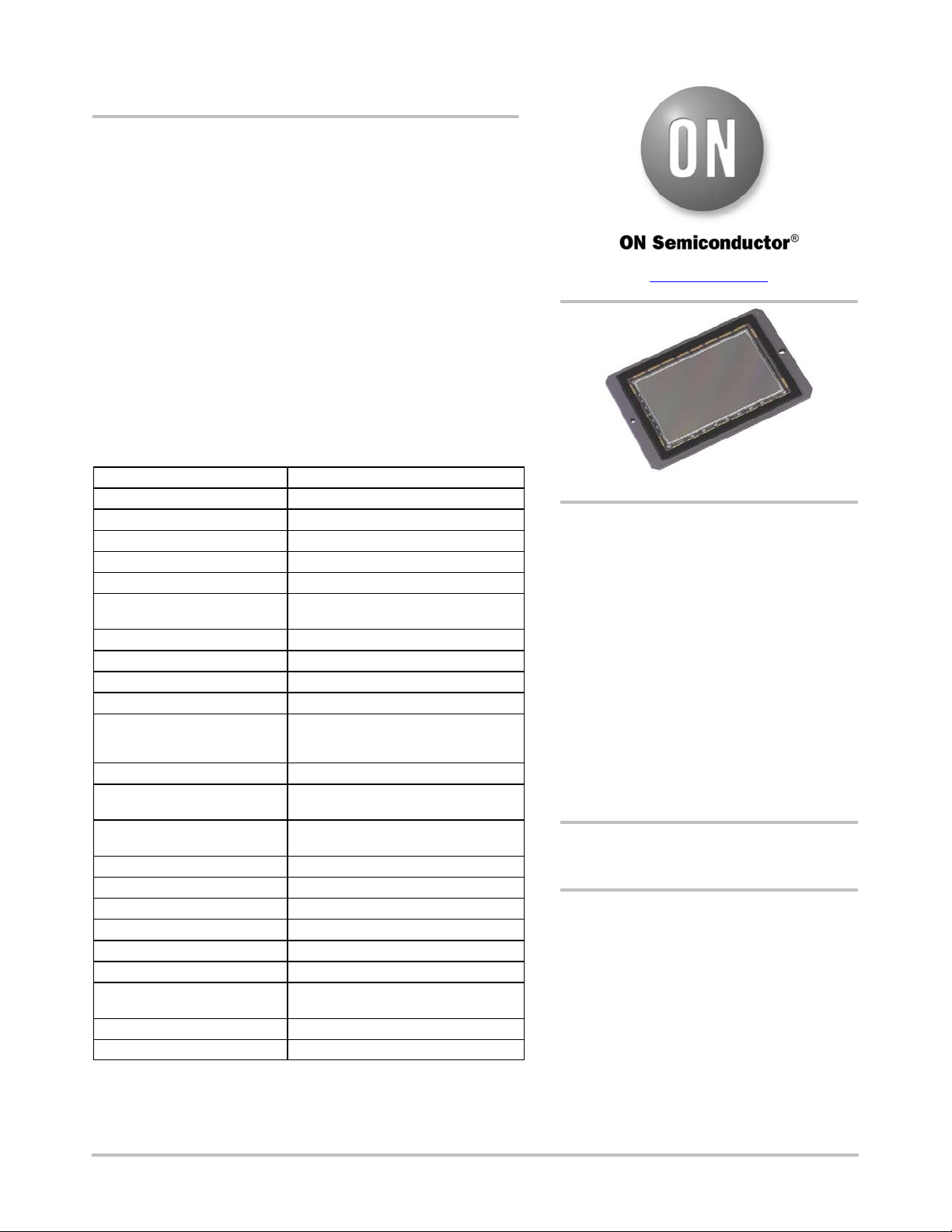

Figure 1. KAI−47051 Image Sensor
See detailed ordering and shipping information on page 2 of
this data sheet.
ORDERING INFORMATION
