1
www.pericom.com PI6C49X0206T Rev B 10/05/2015
PI6C49X0206T

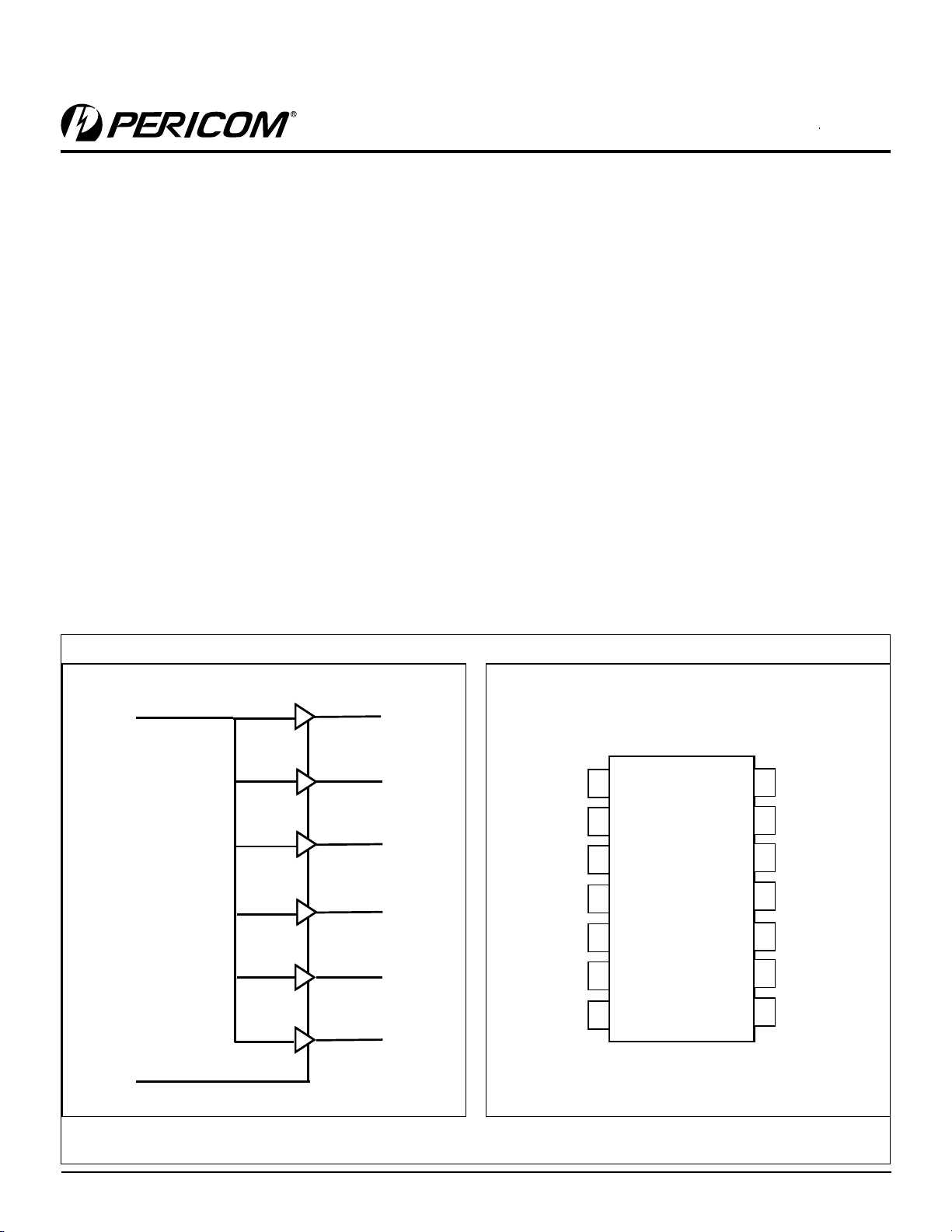

Block Diagram
Description
The PI6C49X0206T is a low skew, 1-to-6 LVCMOS/LVTTL
High Performance Fanout Buffer. The PI6C49X0206T has a
single ended clock input. The single ended clock input accepts
LVCMOS or LVTTL input levels. The PI6C49X0206T features a
pair of LVCMOS/LVTTL outputs. Guaranteed output and part-to-
part skew characteristics make the PI6C49X0206T ideal for clock
distribution applications demanding well dened performance
and repeatibility.
Low Skew, 1-To-6 LVCMOS / LVTTL Fanout Buffer
Features
6 LVCMOS / LVTTL outputs
LVCMOS / LVTTL clock input accepts LVCMOS or LVTTL
input levels
Maximum output frequency: 250MHz
Part-to-part skew: 250ps (typical)
Full 3.3V, 2.5V, 1.8V operation mode, or 3.3V/ 2.5V/ 1.8V
core with 2.5V, 1.8V, 1.5V supply modes
-40°C to 85°C ambient operating temperature
Lead-Free package fully RoHS compliant
Q0
CLK
Q1
Q2
Q3
Q4
Q5
OE
Pin Assignment
1CLK
11
12
13
14
4
3
2
Q2
VDDO
Q3
Q1
GND
Q0
OE
7
6
5
GND
Q4
VDD
8
9
10
VDDO
Q5
GND
15-0131
