AN4207 Basics of sigma-delta converters
Doc ID 023945 Rev 1 5/28
1 Basics of sigma-delta converters
Sigma-delta converters, also known as oversampling converters, consist of two basic
circuits: a modulator and a digital filter (Figure 1). In the modulator, the input signal is added
to the negative feedback signal from the digital to analog converter (DAC). The signal’s
difference, after passing through the integrating circuit, reaches the input of the comparator
(1-bit ADC), where it is compared to the reference voltage (the comparator works as a 1-bit
quantizer). The input signal from the comparator (1-bit ADC) controls the 1-bit converter and
reaches the input of the digital filter, which decreases flowability and transforms the 1-bit
stream into 16-bit words. The used filter topology that ensures the low-pass stage is Sinc³.

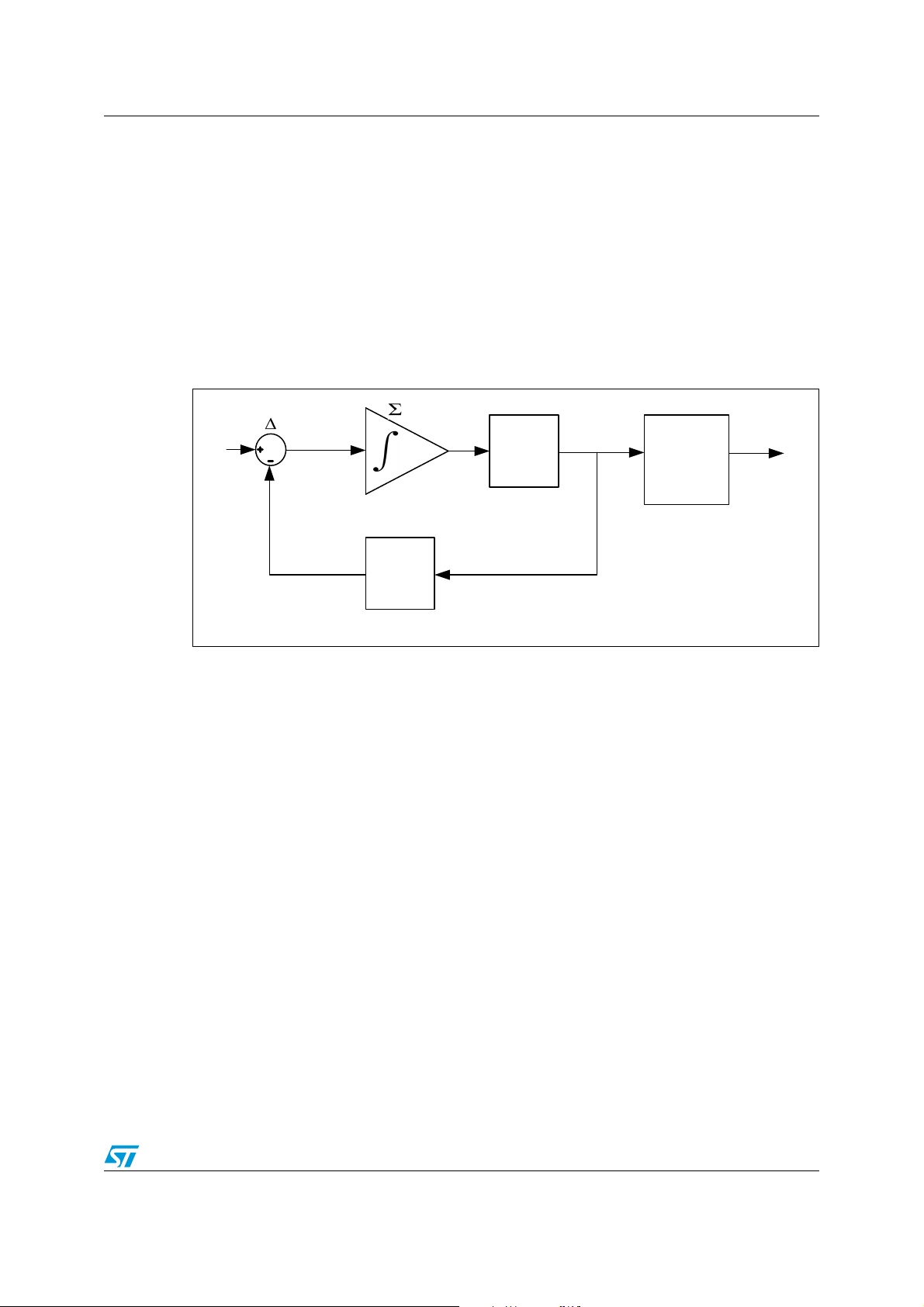

Figure 1. Block diagram of a sigma-delta analog to digital converter
1-bit ADC
1-bit DAC
Digital filter
&
Decimator
Vin
1-bit stream
MSv31135V1
16-bit data
