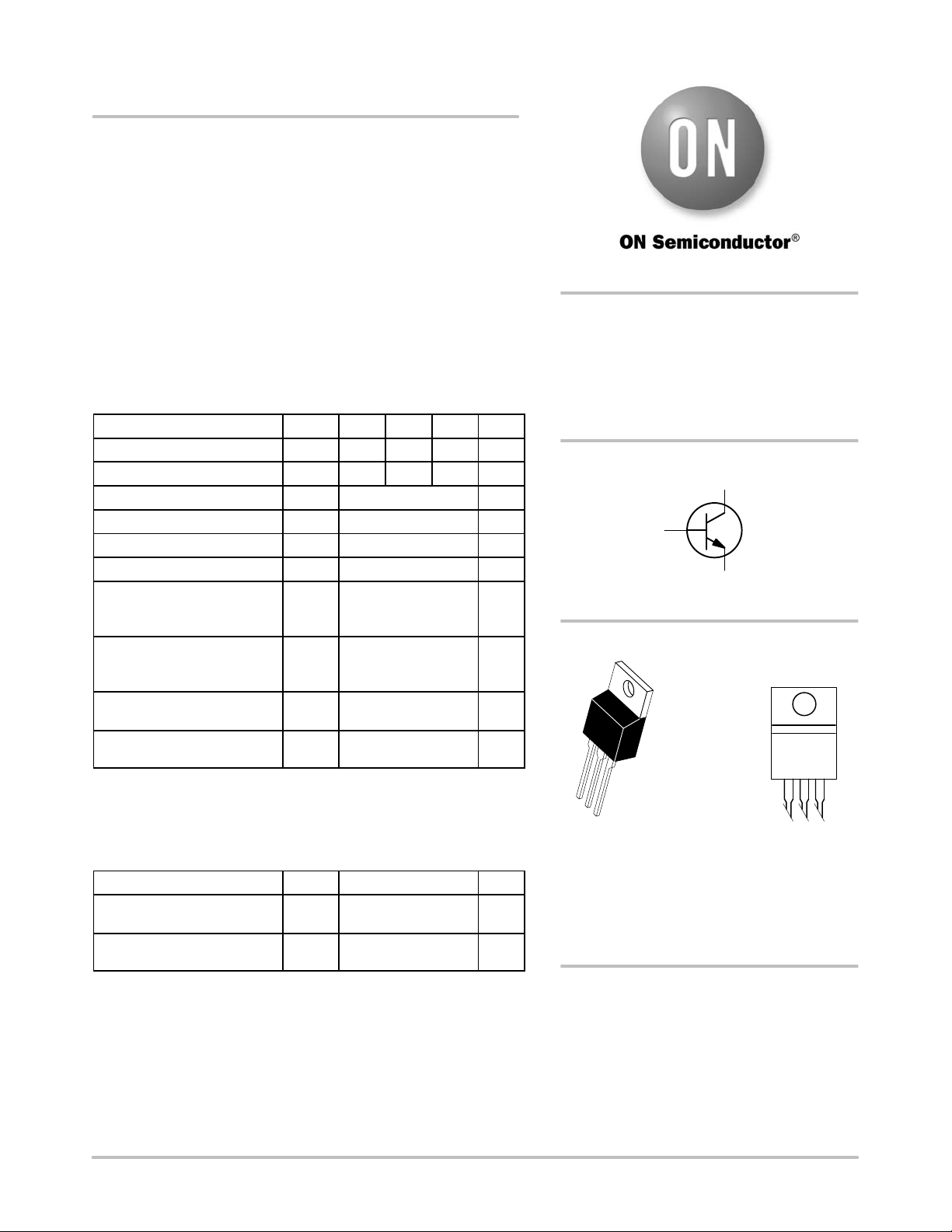

© Semiconductor Components Industries, LLC, 2013
August, 2013 − Rev. 10
1 Publication Order Number:
TIP47/D
TIP47G, TIP48G, TIP50G
High Voltage NPN Silicon
Power Transistors
This series is designed for line operated audio output amplifier,
SWITCHMODE power supply drivers and other switching
applications.
Features
• Popular TO−220 Plastic Package
• These Devices are Pb−Free and are RoHS Compliant*
• Complementary to the MJE5730 and MJE5731 Series
MAXIMUM RATINGS
Rating Symbol TIP47 TIP48 TIP50 Unit
Collector − Emitter Voltage V
CEO
250 300 400 Vdc
Collector − Base Voltage V
CB
350 400 500 Vdc
Emitter − Base Voltage V
EB
5.0 Vdc
Collector Current − Continuous I
C
1.0 Adc
Collector Current − Peak I
CM
2.0 Adc
Base Current I
B
0.6 Adc
Total Power Dissipation
@ T
C
= 25_C
Derate above 25_C
P
D
40
0.32
W
W/_C
Total Power Dissipation
@ T
C
= 25_C
Derate above 25_C
P
D
2.0
0.016
W
W/_C
Unclamped Inducting Load
Energy (See Figure 8)
E 20 mJ
Operating and Storage
Junction Temperature Range
T
J
, T
stg
−65 to +150
_C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance,
Junction−to−Case
R
q
JC
3.125 °C/W
Thermal Resistance,
Junction−to−Ambient
R
q
JA
62.5 °C/W
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
1.0 AMPERE
POWER TRANSISTORS
NPN SILICON
250−300− 400 VOLTS
40 WATTS
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
TO−220AB
CASE 221A
STYLE 1
MARKING
DIAGRAM
1
2
3
4
TIPxx = Device Code
xx = 47, 48, or 50
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
TIPxxG
AYWW
1
BASE
3
EMITTER
COLLECTOR
2,4
