• All specifications are subject to change without notice.
(1/7)
001-02 / 20110928 / e9713_acm
Common Mode Filters
For Power Line
ACM Series ACM4520
FEATURES
• Several large current products are prepared to correspond to the
various applications.
• Low profile and compact shape, it is suited for surface mounting.
• It shows high common mode impedance despite of its compact
shape.
APPLICATIONS
Radiation noise suppression for power line (DVC, DVD cam, DSC,
etc.)
TEMPERATURE RANGES
PACKAGING STYLE AND QUANTITIES
PRODUCT IDENTIFICATION
(1) Series name
(2) Dimensions W×T
4520: 4.5×2.0mm
(3) Impedance [at 100MHz]
901: 900Ω
(4) Numbers of lines
2P: 2-line
(5) Packaging style
T: ø180mm reel taping
TL: ø330mm reel taping
(6) TDK internal code

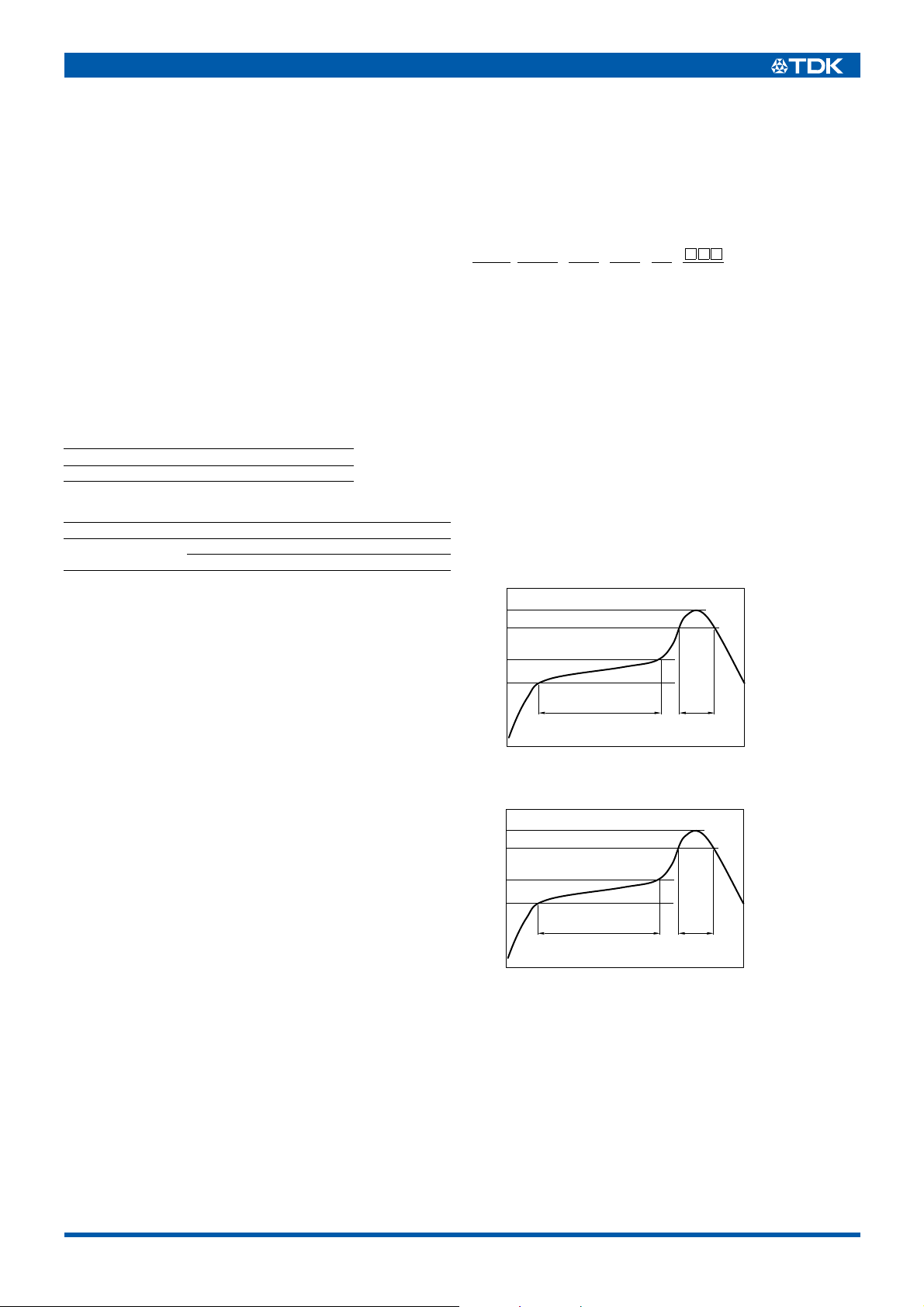

RECOMMENDED SOLDERING CONDITIONS
RECOMMENDED TEMPERATURE PROFILE
FOR LEAD-FREE SOLDER
REFLOW PROFILE FOR SOLDER HEAT RESISTANCE
Conformity to RoHS Directive
Operating
–40 to +85°C
Storage(After mount) –40
to +85°C
Packaging style Reel Quantity
Taping
ø180mm 800 pieces/reel
ø330mm 2500 pieces/reel
ACM 4520 - 901 - 2P - T -
(1) (2) (3) (4) (5) (6)
150˚C
180˚C
Peak 245˚C max.
230˚C
60 to 120s 10 to 30s
Natural
cooling
Time
(
s
)
150˚C
180˚C
Peak 260˚C max.
230˚C
60 to 120s 40s max.
Natural
cooling
Time
(
s
)
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
