(1/5)
001-03 / 20110928 / e9712_acm.fm
• All specifications are subject to change without notice.
Common Mode Filters
For High-speed Differential Signal Line / General Signal Line
ACM Series ACM2012, 2520, 3225, 4532
FEATURES
• Although greatly miniaturized, this wire-wound chip-type filter
maintains the characteristics needed for a common mode filter.
Common mode impedance is 1000Ω [at 100MHz], so this filter is
greatly effective in supporting noise.
• Almost no affect upon even high speed signals since differential
mode impedance is kept low.
• This series includes both 2-line and 3-line types. They are used
for various types of circuits and noise.
APPLICATIONS
• Used for radiation noise suppression for any electronic devices.
• Used to counter common mode noise affecting signals within
high-speed lines.
• USB line for personal computers and peripheral equipment.
• IEEE1394 line for personal computers, DVC, STB, etc.
• LVDS, panel link line for liquid crystal display panels.
TEMPERATURE RANGES
PACKAGING STYLE AND QUANTITIES
PRODUCT IDENTIFICATION
(1) Series name
(2) Dimensions L×W
2012: 2.0×1.2mm
(3) Impedance[at 100MHz]
900: 90Ω
(4) Number of line
2P: 2-line
3P: 3-line
(5) Packaging style
T: ø180mm reel taping
TL: ø330mm reel taping
(6) TDK internal code

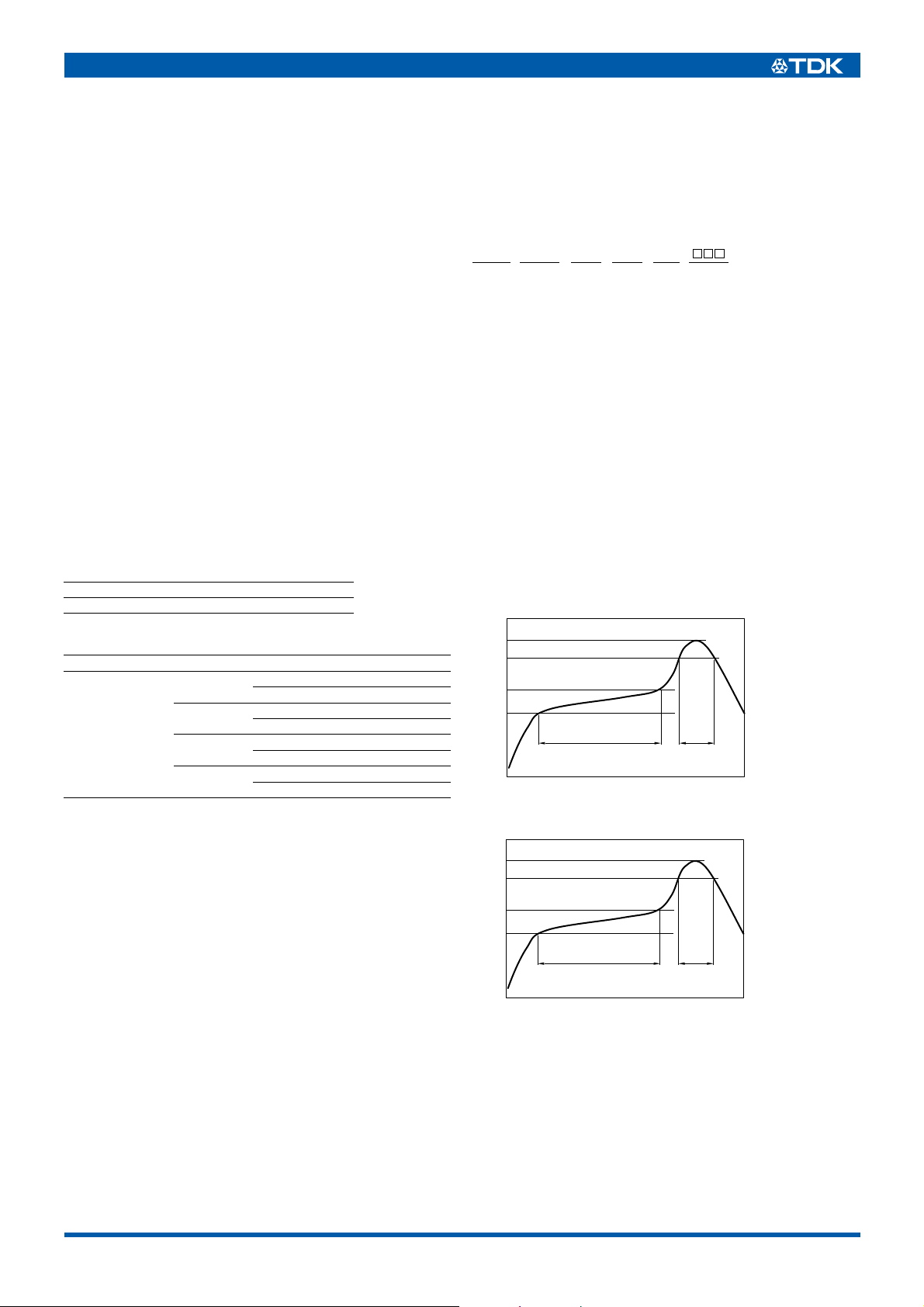

RECOMMENDED SOLDERING CONDITIONS
RECOMMENDED TEMPERATURE PROFILE
FOR LEAD-FREE SOLDER
REFLOW PROFILE FOR SOLDER HEAT RESISTANCE
Conformity to RoHS Directive
Operating –25 to +85°C
Storage(After mount) –25 to +85°C
Packaging style Type Reel Quantity
Taping
ACM2012
ø180mm 2000 pieces/reel
ø330mm 10000 pieces/reel
ACM2520
ø180mm 2000 pieces/reel
ø330mm 10000 pieces/reel
ACM3225
ø180mm 1000 pieces/reel
ø330mm 5000 pieces/reel
ACM4532
ø180mm 500 pieces/reel
ø330mm 2000 pieces/reel
ACM 2012 - 900 - 2P - T
(1) (2) (3) (4) (5) (6)
150˚C
180˚C
Peak 245˚C max.
230˚C
60 to 120s 10 to 30s
Natural
cooling
Time
(
s
)
150˚C
180˚C
Peak 260˚C max.
230˚C
60 to 120s 40s max.
Natural
cooling
Time
(
s
)
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
