• All specifications are subject to change without notice.
(4/7)
001-02 / 20110928 / e9713_acm
Common Mode Filters
For Power Line
ACM Series ACM3225, 4532, 7060, 9070, 1211, 1513
FEATURES
• A chip-type common mode filter for large current applications.
Common mode impedance surpasses 300 to 1000
Ω
at 100MHz.
Noise is greatly suppressed.
• Capable of handling the highest current (up to 10A) of any chip-
type common mode filter.
• Height and size have been considered, resulting in a compact
and light-weight choke coil. Applicable for the miniaturization
required to reduce the size and weight of portable equipment.
• The products contain no lead and also support lead-free
soldering.
• This product does not contain regulated substances that are
slated to be included in RoHS.
APPLICATIONS
Used for power line noise suppression for any electronic devices
Used to counter adapter/battery line noise for relatively large elec-
tronic devices such as notebook PCs, stand-alone word proces-
sors, etc
TEMPERATURE RANGES
PACKAGING STYLE AND QUANTITIES
PRODUCT IDENTIFICATION
(1) Series
(2) Dimensions L×W
7060: 7.0×6.0mm
(3) Impedance[at 100MHz]
701: 700Ω
(4) Number of lines
2PL: 2-line
(5) Packaging style
T: ø180mm reel taping
TL: ø330mm reel taping
(6) TDK internal code

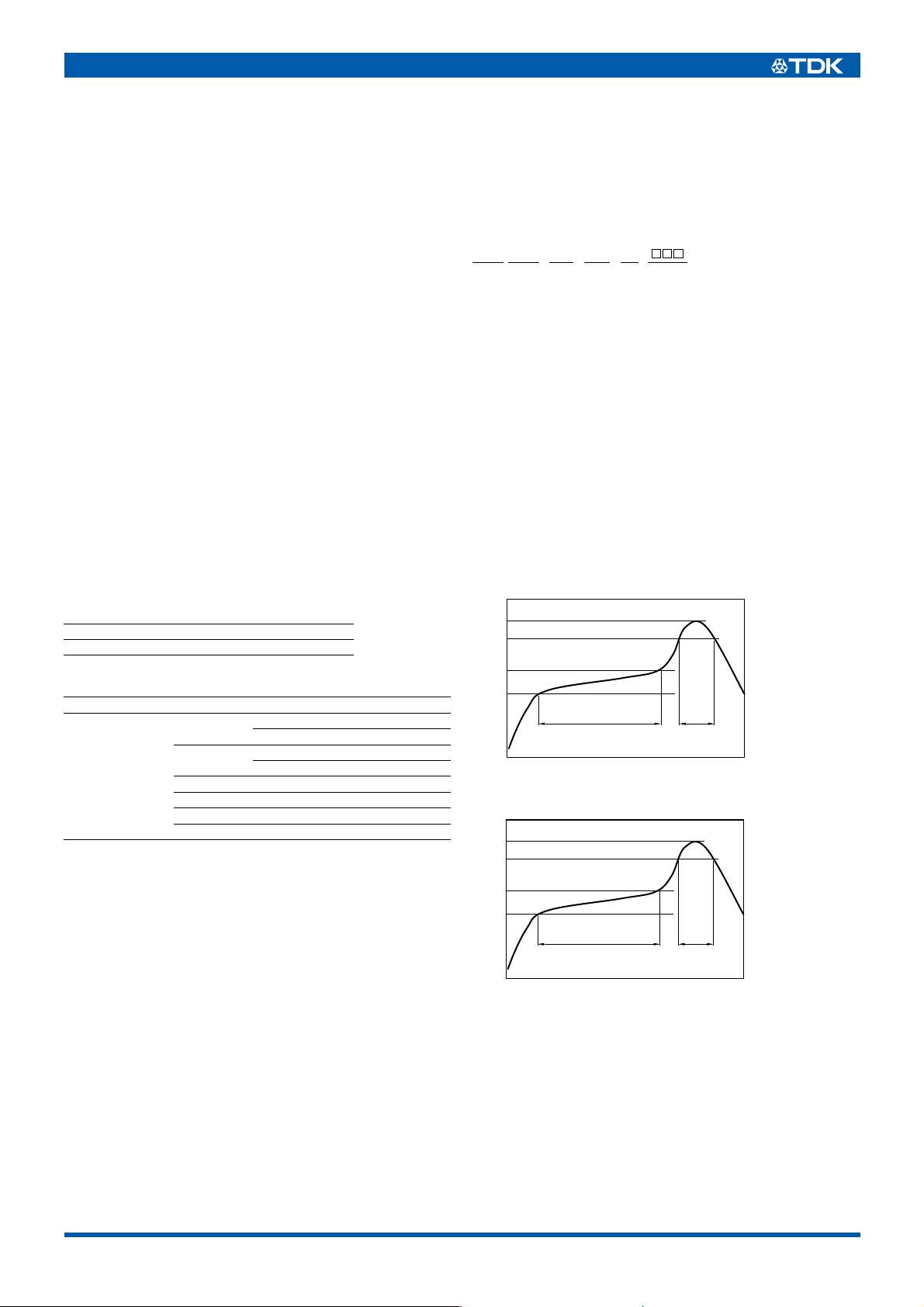

RECOMMENDED SOLDERING CONDITIONS
RECOMMENDED TEMPERATURE PROFILE
FOR LEAD-FREE SOLDER
REFLOW PROFILE FOR SOLDER HEAT RESISTANCE
Conformity to RoHS Directive
Operating –25 to +85°C
Storage(After mount) –25 to +85°C
Packaging style Type Reel Quantity
Taping
ACM3225
ø180mm 1000 pieces/reel
ø330mm 5000 pieces/reel
ACM4532
ø180mm 500 pieces/reel
ø330mm 2000 pieces/reel
ACM7060 ø330mm 1500 pieces/reel
ACM9070 ø330mm 800 pieces/reel
ACM1211 ø330mm 500 pieces/reel
ACM1513 ø330mm 500 pieces/reel
ACM 7060 - 701 - 2PL - TL
(1) (2) (3) (4) (5) (6)
150˚C
180˚C
Peak 245˚C max.
230˚C
60 to 120s 10 to 30s
Natural
cooling
Time
(
s
)
150˚C
180˚C
Peak 260˚C max.
230˚C
60 to 120s 40s max.
Natural
cooling
Time
(
s
)
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
