www.ti.com
FEATURES
APPLICATIONS
DESCRIPTION/

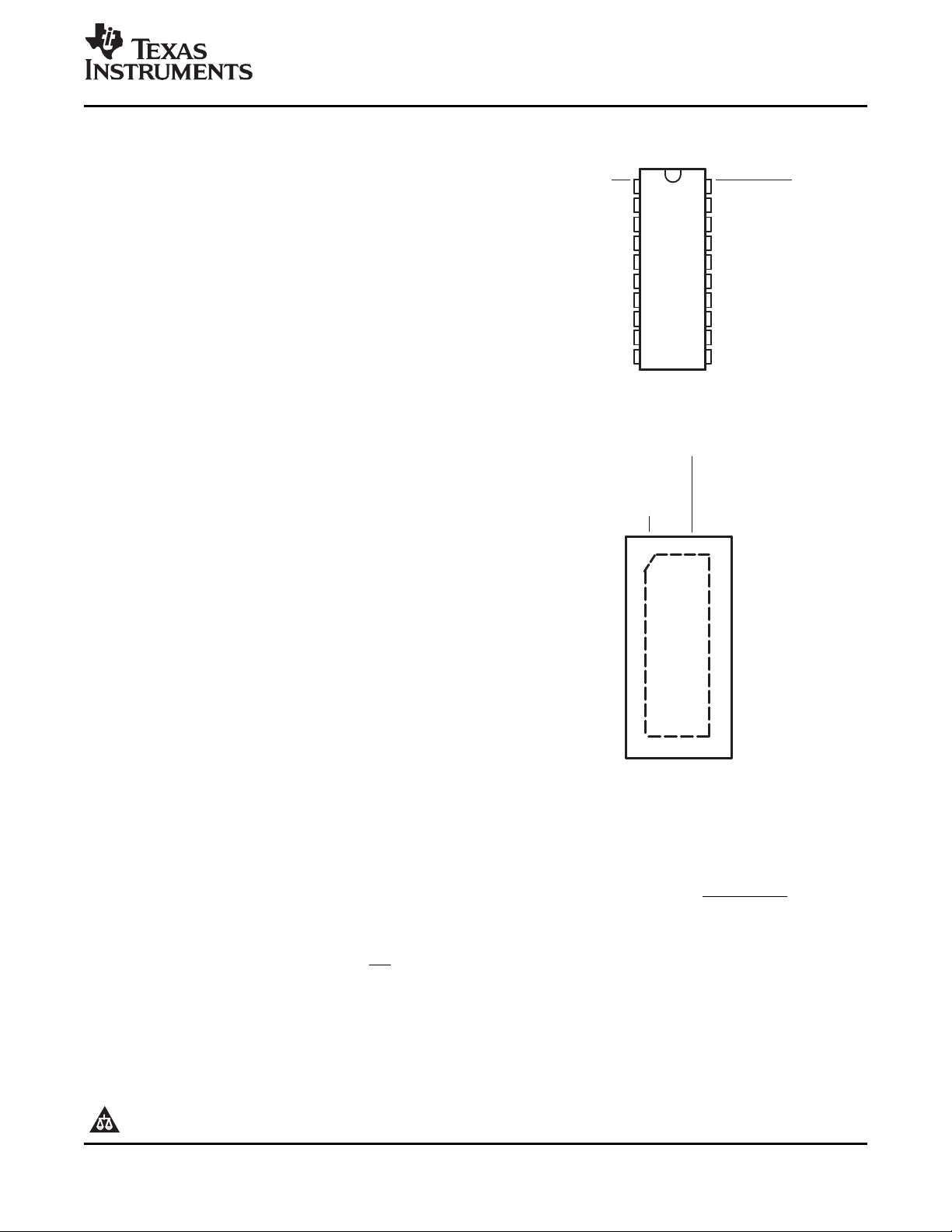

DB, DW, OR PW PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
EN
C1+
V+
C1−
C2+
C2−
V−
DOUT2
RIN2
ROUT2
PWRDOWN
V
CC
GND
DOUT1
RIN1
ROUT1
NC
DIN1
DIN2
NC
NC − No internal connection
RHL PACKAGE
(TOP VIEW)
1
24
12 13
2
3
4
5
6
7
8
9
10
11
23
22
21
20
19
18
17
16
15
14
V
CC
NC
GND
DOUT1
RIN1
ROUT1
NC
DIN1
NC
DIN2
C1+
NC
V+
C1–
C2+
C2–
V–
DOUT2
NC
RIN2
NC
PWRDOWN
ROUT2
EN
NC − No internal connection
The TRSF3222E can be placed in the power-down mode by setting the power-down ( PWRDOWN) input low,
TRSF3222E
3-V TO 5.5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER
WITH ± 15-kV ESD PROTECTION
SLLS823 – JULY 2007
• ESD Protection for RS-232 Bus Pins
– ± 15-kV Human-Body Model (HBM)
– ± 8-kV IEC 61000-4-2, Contact Discharge
– ± 15-kV IEC 61000-4-2, Air-Gap Discharge
• Meets or Exceeds the Requirements of
TIA/EIA-232-F and ITU v.28 Standards
• Operates With 3-V to 5.5-V V
CC
Supply
• Operates up to 1000 kbit/s
• Two Drivers and Two Receivers
• Low Standby Current . . . 1 μ A Typ
• External Capacitors . . . 4 × 0.1 μ F
• Accepts 5-V Logic Input With 3.3-V Supply
• Battery-Powered Systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-Held Equipment
ORDERING INFORMATION
The TRSF3222E consists of two line drivers, two line
receivers, and a dual charge-pump circuit with
± 15-kV ESD protection pin to pin (serial-port
connection pins, including GND).
The TRSF3222E meets the requirements of
TIA/EIA-232-F and provides the electrical interface
between an asynchronous communication controller
and the serial-port connector. The charge pump and
four small external capacitors allow operation from a
single 3-V to 5.5-V supply. The TRSF3222E
operates at typical data signaling rates up to
1000 kbit/s and is an improved drop-in replacement
for industry-popular '3222 two-driver, two-receiver
functions.
which draws only 1 μ A from the power supply. When the device is powered down, the receivers remain active
while the drivers are placed in the high-impedance state. Also, during power down, the onboard charge pump is
disabled; V+ is lowered to V
CC
, and V– is raised toward GND. Receiver outputs also can be placed in the
high-impedance state by setting enable ( EN) high.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2007, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
