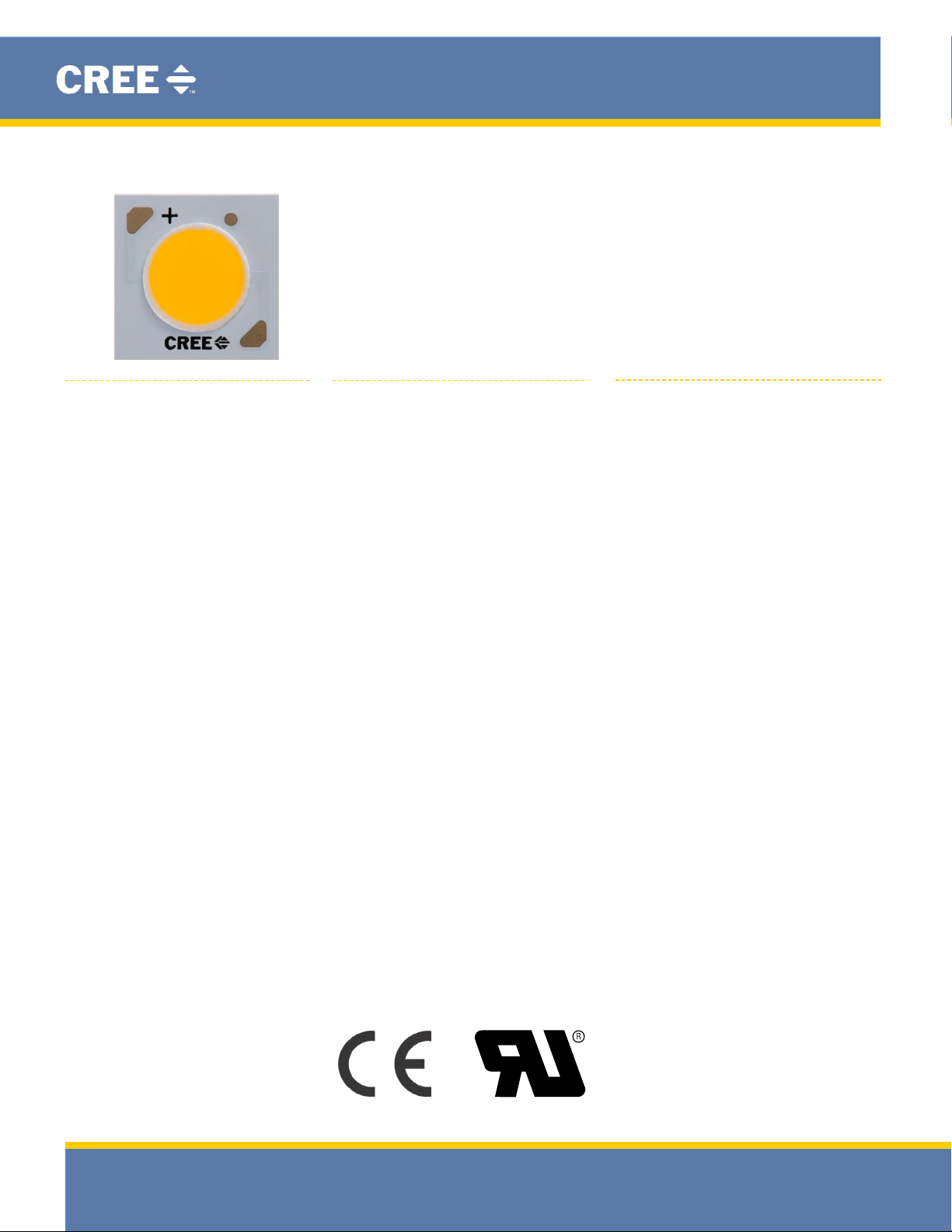

Product family data sheet
Copyright © 2012-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and
EasyWhite
®
are registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
WWW.CREE.COM/XLAMP
CLD-DS55 REV 9C
Cree
®
XLamp
®
CXA1512 LED
PRODUCT DESCRIPTION
The XLamp
®
CXA1512 LED array
expands Cree’s family of high‑ux,
multi‑die arrays in a smaller, easy‑to‑use
platform. With XLamp LED lighting‑class
reliability, the CXA1512’s small,
uniform emitting surface enables both
directional and non‑directional lighting
applications including lamp retrot and
luminaire designs. Available in 2‑step,
3‑step and 4‑step color consistency,
and featuring a 9‑mm optical source,
the CXA1512 brings new levels of ux
and efcacy to this form factor.
The CX Family LED Design Guide
provides basic information on the
requirements to use the CXA1512 LED
successfully in luminaire designs.
FEATURES
• Available in 4‑step, 3‑step and 2‑step
EasyWhite
®
bins at 2700K, 3000K,
3500K, 4000K & 5000K CCT and
4‑step EasyWhite bins at 5700K &
6500K CCT
• Available in ANSI white bins at
4000K, 5000K, 5700K & 6500K
CCT
• Available in 70‑, 80‑, 90‑ and
93‑minimum CRI options
• Forward voltage options: 18‑V class
& 36‑V class
• 85°C binning and characterization
• Maximum drive current: 1200mA
(18V), 600mA (36V)
• 115° viewing angle, uniform
chromaticity profile
• Top‑side solder connections
• Thermocouple attach point
• NEMA SSL‑3 2011 standard ux bins
• RoHS‑ and REACh‑compliant
• UL
®
recognized component
(E349212)
TABLE OF CONTENTS
Characteristics ............................................2
Operating Limits ..........................................3
Flux Characteristics, EasyWhite
®
Order
Codes and Bins ‑ 18V .................................4
Flux Characteristics, ANSI White Order
Codes and Bins ‑ 18V .................................7
Flux Characteristics, EasyWhite
®
Order
Codes and Bins ‑ 36V .................................8
Flux Characteristics, ANSI White Order
Codes and Bins ‑ 36V .............................. 11
Relative Spectral Power Distribution ...... 12
Electrical Characteristics ......................... 13
Relative Luminous Flux ............................ 14
Typical Spatial Distribution ...................... 16
Performance Groups ‑ Brightness .......... 16
Performance Groups ‑ Chromaticity ....... 17
Cree EasyWhite
®
Bins Plotted on the
1931 CIE Color Space .............................. 20
Cree ANSI White Bins Plotted on the
1931 CIE Color Space .............................. 20
Bin and Order Code Formats ................... 21
Mechanical Dimensions .......................... 21
Thermal Design ........................................ 22
Notes ........................................................ 24
Packaging ................................................. 25
