8.2 to 45 V
DRV8842
H-Bridge
Motor Driver
ENBL
PHASE
nFAULT
Controller
Current
Control
Current Control
5 A
Decay Mode
+
-
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
DRV8842
SLVSAB8F –MAY 2010–REVISED DECEMBER 2015
DRV8842 DC Motor Driver IC
1 Features 3 Description
The DRV8842 provides an integrated motor driver
1
• Single H-Bridge Current-Control Motor Driver
solution for printers, scanners, and other automated
• 8.2-V to 45-V Operating Supply Voltage Range
equipment applications. The device has one H-bridge
• Five-Bit Winding Current Control Allows Up to 32
driver, and is intended to drive one DC motor, one
Current Levels
coil of a stepper motor, or other loads. The output
driver block consists of N-channel power MOSFETs
• Low MOSFET R
DS(on)
Typical 0.65 Ω (HS + LS)
configured as an H-bridge. The DRV8842 can supply
• 5-A Maximum Drive Current at 24 V, 25°C
up to 5-A peak or 3.5-A RMS output current (with
• Built-In 3.3-V Reference Output
proper heatsinking at 24 V and 25°C).
• Industry-Standard PWM Control Interface
Separate inputs to independently control each half of
• Thermally Enhanced Surface Mount Package
the H-bridge are provided.
• Protection Features:
Internal shutdown functions are provided for
– Overcurrent Protection (OCP)
overcurrent protection, short-circuit protection,
undervoltage lockout, and overtemperature.
– Thermal Shutdown (TSD)
TheDRV8842 is available in a 28-pin HTSSOP
– VM Undervoltage Lockout (UVLO)
package with PowerPAD™ (Eco-friendly: RoHS & no
– Fault Condition Indication Pin (nFAULT)
Sb/Br).
2 Applications
Device Information
(1)
• Printers
PART NUMBER PACKAGE BODY SIZE (NOM)
• Scanners
DRV8842 HTSSOP (28) 9.70 mm × 4.40 mm
• Office Automation Machines
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
• Gaming Machines
• Factory Automation
• Robotics

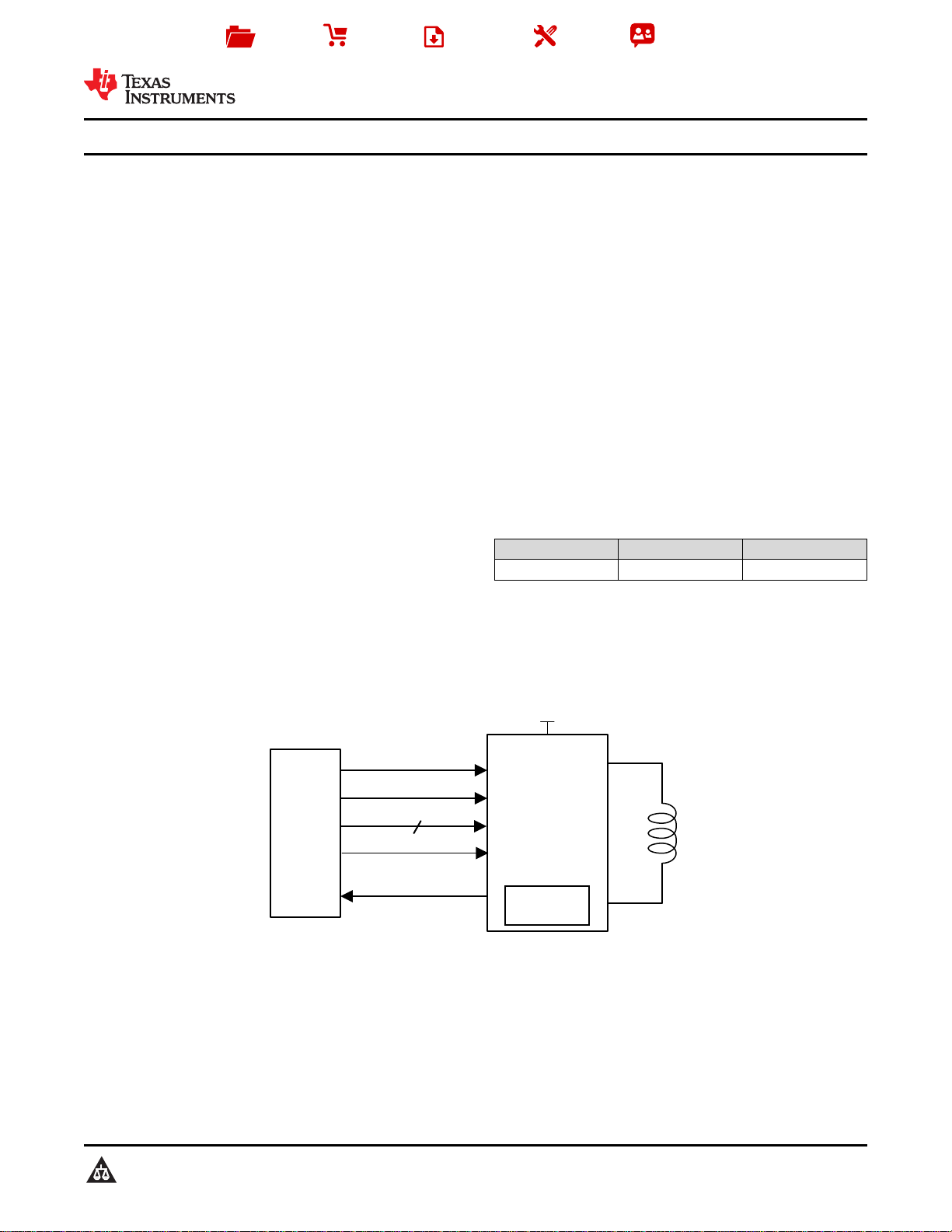

Simplified Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
