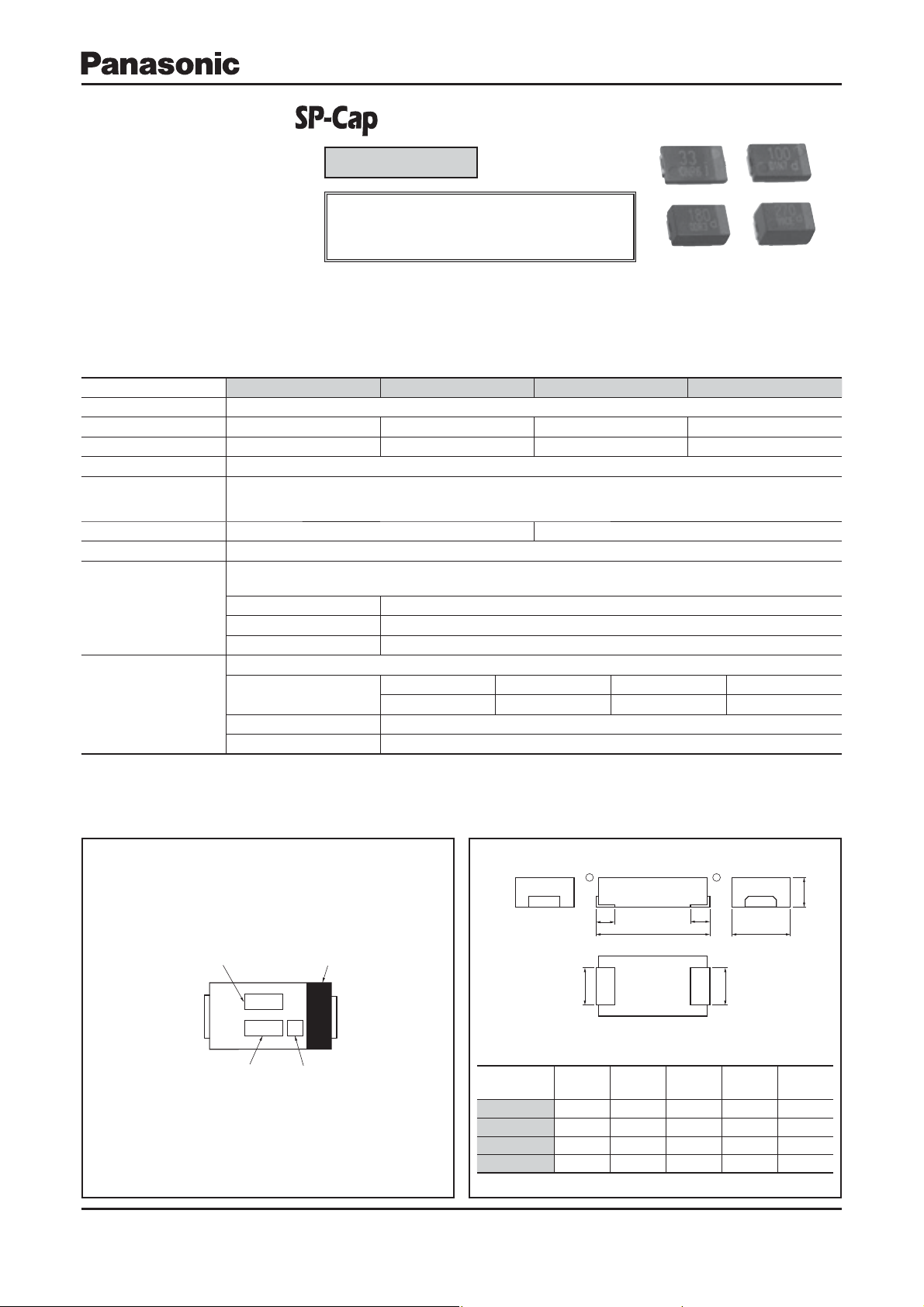

SP-Cap/ Conductive Polymer Aluminum Capacitors (Specialty Polymer Aluminum Capacitors)
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
– EEF-16 –
Cap. Polarity bar (Positive)
R.V. codeLot No.
W2
W1
L
P
W2
P
H
+
–
[Our Requests]
Since this series is old, we don't recommend you to adopt it
but CX & SX series for your new design.
■ Features
● Low ESR
● Excellent Noise-ab sor bent Characteristics
● RoHS directive compliant
Surface Mount Type
Series:
FD, CD, UD, UE
■ Speci cations
■ Di men sions in mm(not to scale) ■ Marking
Series &
Size Code
L±0.2 W1±0.2 W2±0.1 H P±0.3
FD 7.3 4.3 2.4 1.1±0.1 1.3
CD 7.3 4.3 2.4 1.8±0.1 1.3
UD 7.3 4.3 2.4 2.8±0.2 1.3
UE 7.3 4.3 2.4 4.2±0.1 1.3
(Unit : mm)
✽
Externals of fi gure are the reference.
Series & Size Code FD CD UD UE
Category Temp. Range –40 °C to +105 °C
Rated Voltage Range 2 V.DC to 12.5 V.DC 2 V.DC to 16 V.DC 2 V.DC to 8 V.DC 2 V.DC to 8 V.DC
Nominal Cap.Range 15 μF to 68 μF 2.2 μF to 220 μF 68 μF to 470 μF 100 μF to 560 μF
Capacitance Tolerance ±20 %
DC Leakage Cur rent
Refl ow 240 °C : I
<
0.06 CV (μA) 2minutes (2 V.DC to 4 V.DC)
I
<
0.04 CV or 3 (μA) 2 minutes (6.3 V.DC to 16 V.DC) (Whichever is greater)
Refl ow 260 °C : I
<
0.1 CV (μA) 2 minutes
tan
d
<
0.06 (120 Hz/+20 °C)
<
0.10 (120 Hz/+20 °C)
Surge Voltage Rated Voltage × 1.25 (15 °C to 35 °C)
Endurance
After applying rated voltage for 1000 hours at 105 °C±2 °C, and then being stabilized at +20 °C,
capacitor shall meet the following limits.
Capacitance change ±10% of initial measured value
tan
d
<
Initial specifi ed value
DC leakage cur rent
<
Initial specifi ed value
Moisture resistance
After storing for 500 hours at 60 °C, 90 %
Capacitance change of
initial measurd val ue
2, 2.5 V.DC 4 V.DC 6.3 V.DC 8 V.DC to 16 V.DC
+70, –20 % +60, –20 % +50, –20 % +40, –20 %
tan
d
<
200 % of initial specifi ed value
DC leakage current
<
Initial specifi ed value
Old series
02 Mar. 2015
