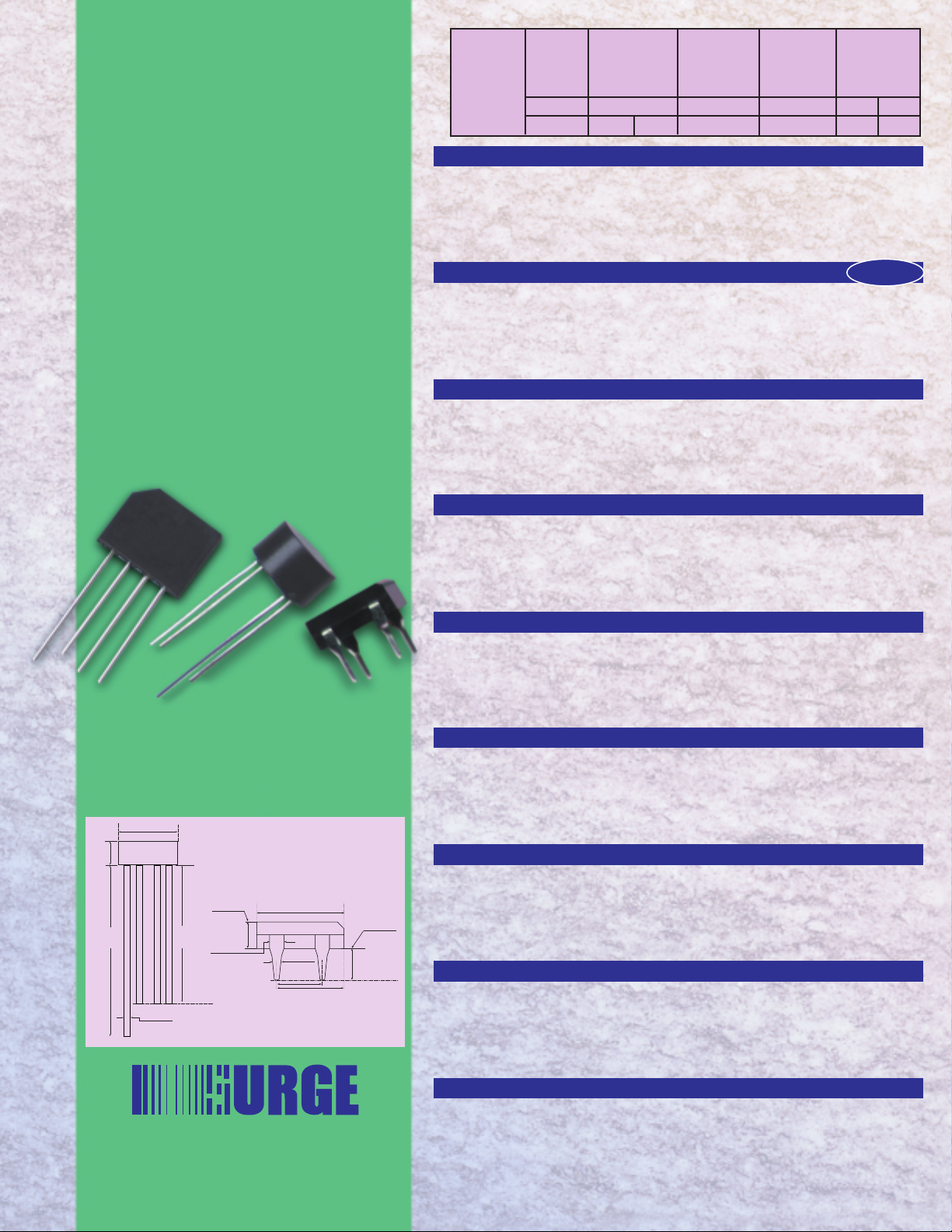

HIGH QUALITY
BRIDGE RECTIFIERS
The Surge line of bridge rectifiers pro-
vides numerous benefits for engineers who
need to maintain a tight control over
power in their printed circuit boards.
Highly automated, high volume manu-
facturing allows us to provide extremely
cost efficient products for a wide variety of
OEM applications and industry segments.
Available in several package styles and
configurations, these UL-recognized
devices operate within a wide variety of
voltage and current ranges, (see spec
tables) which allows for greater flexibility in
OEM designs and system applications.
Surge’s products are manufactured
in ISO-certified facilities, and may be
purchased from Surge directly or through
distribution.
Surge Components, Inc.
1016 Grand Blvd., Deer Park, NY 11729
Tel: 631•595•1818 Fax: 631•595•1283
www.surgecomponents.com
.080 ( 2.03)
.050 (1.27)
130 (33)
120 (3.05)
185 (469)
150 (381)
.075 (1.90)
.055 (1.38)
205 ( 5.2)
195 ( 5.0)
022 ( 0.56)
018 ( 0.46)
.045 ( 1.14)
.035 ( 0.89)
335 ( 8.51)
320 ( 8.12)
1.2
(30.5)
MIN.
.032 (0.8)
.028 ( 0.7)
A
B
1.0
(25.4)
MIN.
DB101G 50 1.0 40 30 10 1.0 1.1
DB102G 100 1.0 40 30 10 1.0 1.1
DB103G 200 1.0 40 30 10 1.0 1.1
DB104G 400 1.0 40 30 10 1.0 1.1
DB105G 600 1.0 40 30 10 1.0 1.1
DB106G 800 1.0 40 30 10 1.0 1.1
DB107G 1000 1.0 40 30 10 1.0 1.1
DBS101G 50 1.0 40 30 10 1.0 1.1
DBS102G 100 1.0 40 30 10 1.0 1.1
DBS103G 200 1.0 40 30 10 1.0 1.1
DBS104G 400 1.0 40 30 10 1.0 1.1
DBS105G 600 1.0 40 30 10 1.0 1.1
DBS106G 800 1.0 40 30 10 1.0 1.1
DBS107G 1000 1.0 40 30 10 1.0 1.1
W005 50 1.5 50 30 10 1.0 1.1
W01 100 1.5 50 30 10 1.0 1.1
W02 200 1.5 50 30 10 1.0 1.1
W04 400 1.5 50 30 10 1.0 1.1
W06 600 1.5 50 30 10 1.0 1.1
W08 800 1.5 50 30 10 1.0 1.1
W10 1000 1.5 50 30 10 1.0 1.1
2W005M 50 2.0 50 50 10 1.0 1.1
2W01M 100 2.0 50 50 10 1.0 1.1
2W02M 200 2.0 50 50 10 1.0 1.1
2W04M 400 2.0 50 50 10 1.0 1.1
2W06M 600 2.0 50 50 10 1.0 1.1
2W08M 800 2.0 50 50 10 1.0 1.1
2W10M 1000 2.0 50 50 10 1.0 1.1
KBP201G 50 2.0 50 50 10 1.57 1.1
KBP202G 100 2.0 50 50 10 1.57 1.1
KBP203G 200 2.0 50 50 10 1.57 1.1
KBP204G 400 2.0 50 50 10 1.57 1.1
KBP205G 600 2.0 50 50 10 1.57 1.1
KBP206G 800 2.0 50 50 10 1.57 1.1
KBP207G 1000 2.0 50 50 10 1.57 1.1
SB305 50 3.0 *50 60 10 1.5 1.1
SB310 100 3.0 *50 60 10 1.5 1.1
SB320 200 3.0 *50 60 10 1.5 1.1
SB340 400 3.0 *50 60 10 1.5 1.1
SB360 600 3.0 *50 60 10 1.5 1.1
SB380 800 3.0 *50 60 10 1.5 1.1
SB3100 1000 3.0 *50 60 10 1.5 1.1
KBL401L 50 4.0 50 200 10 4.0 1.1
KBL402L 100 4.0 50 200 10 4.0 1.1
KBL403L 200 4.0 50 200 10 4.0 1.1
KBL404L 400 4.0 50 200 10 4.0 1.1
KBL405L 600 4.0 50 200 10 4.0 1.1
KBL406L 800 4.0 50 200 10 4.0 1.1
KBL407L 1000 4.0 50 200 10 4.0 1.1
KBL401 50 4.0 50 200 10 6.28 1.1
KBL402 100 4.0 50 200 10 6.28 1.1
KBL403 200 4.0 50 200 10 6.28 1.1
KBL404 400 4.0 50 200 10 6.28 1.1
KBL405 600 4.0 50 200 10 6.28 1.1
KBL406 800 4.0 50 200 10 6.28 1.1
KBL407 1000 4.0 50 200 10 6.28 1.1
KBU601 50 6.0 65 200 10 6.0 1.1
KBU602 100 6.0 65 200 10 6.0 1.1
KBU603 200 6.0 65 200 10 6.0 1.1
KBU604 400 6.0 65 200 10 6.0 1.1
KBU605 600 6.0 65 200 10 6.0 1.1
KBU606 800 6.0 65 200 10 6.0 1.1
KBU607 1000 6.0 65 200 10 6.0 1.1
FEATURES:
•
•
•
•
•
FEATURES
:
• UL Recognized
• 1-50 Amperes
• Cost Efficient
• Glass Passivated Available
• Surface Mount Packages
THROUGH-HOLE 1.0 AMPERE/DB UL RECOGNIZED
SURFACE MOUNT 1.0 AMPERE/DB-S UL RECOGNIZED
1.5 AMPERE/RB UL RECOGNIZED
2.0 AMPERE/WOB UL RECOGNIZED
2.0 AMPERE/KBP UL RECOGNIZED
3.0 AMPERE/SB-3 UL RECOGNIZED
4.0 AMPERE/KBL UL RECOGNIZED
4.0 AMPERE/KBL UL RECOGNIZED
6.0 AMPERE/KBU UL RECOGNIZED
(See Reverse Side For More Specifications)
HIGH QUALITY
BRIDGE RECTIFIERS
PRV lo @ TC
IFM (surge) IR IFM VFM
VPK AAV °c APK µAdc APK VPK
SURGE
PART
NUMBER
Max. Peak
Reverse
Voltage
Max. Avg.
Rectified Current
@ Half-Wave
Resistive Load 60hz
Max. Forward
Peak Surge
Current
@ 8.3ms
Superimposed
Max. Reverse
Current@ PRV
@ 25°C
T
A
Max. Forward
Voltage
@ 25°C
T
A
SMT
DIMENSIONS: WO
DIMENSIONS: DB
Other current ranges and package styles available upon request.
