LC2D12F7 数据手册 - Schneider Electric（施耐德）
制造商:
Schneider Electric（施耐德）
描述:
Tesys D 反向接触器螺钉夹连接 切换类别 AC3 DIN 导轨安装 仅与 Tesys 过载继电器兼容 工作温度范围：-20 至 +60°C ### 注库存号 609-0289 和 609-0324 是低功耗 24V 直流变体。### 认可EN 60947，VDE 0660### Schneider Electric TeSys D 系列
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
LC2D12F7数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Jul 5, 2013
1

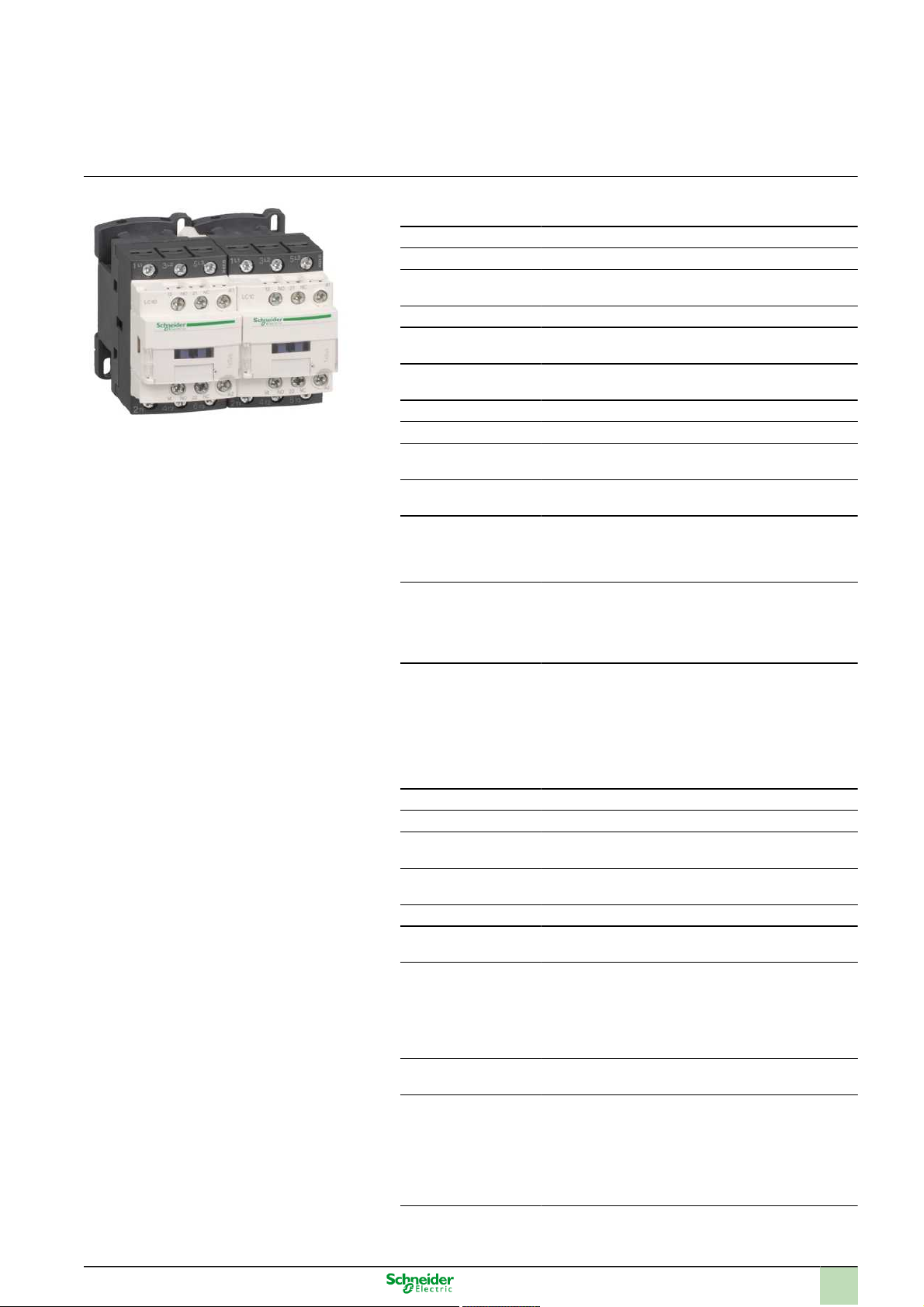

Product data sheet
Characteristics
LC2D12F7
TeSys D reversing contactor - 3P(3 NO) - AC-3
- <= 440 V 12 A - 110 V AC coil
Main
Commercial Status Commercialised
Range of product TeSys D
Product or component
type
Reversing contactor
Device short name LC2D
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Device presentation Preassembled with reversing power busbar
Poles description 3P
Power pole contact
composition
3 NO
[Ue] rated operational
voltage
<= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational
current
12 A (<= 60 °C) at <= 440 V AC AC-3 for power cir-
cuit
25 A (<= 60 °C) at <= 440 V AC AC-1 for power cir-
cuit
Motor power kW 7.5 kW at 660...690 V AC 50/60 Hz
7.5 kW at 500 V AC 50/60 Hz
5.5 kW at 415...440 V AC 50/60 Hz
5.5 kW at 380...400 V AC 50/60 Hz
3 kW at 220...230 V AC 50/60 Hz
Motor power HP (UL /
CSA)
10 hp at 575/600 V AC 50/60 Hz for 3 phases mo-
tors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases mo-
tors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
1 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type AC 50/60 Hz
Control circuit voltage 110 V AC 50/60 Hz
Auxiliary contact com-
position
1 NO + 1 NC
[Uimp] rated impulse
withstand voltage
6 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free
air thermal current
25 A at <= 60 °C for power circuit
10 A at <= 60 °C for signalling circuit
Irms rated making ca-
pacity
250 A DC for signalling circuit conforming to IEC
60947-5-1
140 A AC for signalling circuit conforming to IEC
60947-5-1
250 A at 440 V for power circuit conforming to IEC
60947
Rated breaking capac-
ity
250 A at 440 V for power circuit conforming to IEC
60947
[Icw] rated short-time
withstand current
140 A 100 ms signalling circuit
120 A 500 ms signalling circuit
100 A 1 s signalling circuit
210 A <= 40 °C 1 s power circuit
105 A <= 40 °C 10 s power circuit
61 A <= 40 °C 1 min power circuit
30 A <= 40 °C 10 min power circuit
