LM431
SNVS020H –MAY 2000–REVISED JANUARY 2016
LM431 Adjustable Precision Zener Shunt Regulator
1 Features 3 Description
The LM431 is a 3-terminal adjustable shunt regulator
1
• Average Temperature Coefficient 50 ppm/°C
with ensured temperature stability over the entire
• Temperature Compensated for Operation Over
temperature range of operation. The output voltage
the Full Temperature Range
may be set at any level greater than 2.5 V (V
REF
) up
• Programmable Output Voltage
to 36 V merely by selecting two external resistors that
act as a voltage divided network. Due to the sharp
• Fast Turnon Response
turnon characteristics this device is an excellent
• Low-Output Noise
replacement for many Zener diode applications.
• Low-Dynamic Output Impedance
The LM431 is available in space-saving SOIC-8,
• Available in Space-Saving SOIC-8, SOT-23, and
SOT-23, and TO-92 packages.
TO-92 Packages
Device Information
(1)
2 Applications
PART NUMBER PACKAGE BODY SIZE (NOM)
• Adjustable Voltage or Current Linear and
SOIC (8) 4.90 mm × 3.91 mm
Switching Power Supplies
LM431 SOT-23 (3) 2.92 mm × 1.30 mm
• Voltage Monitoring
TO-92 (3) 4.30 mm × 4.30 mm
• Current Source and Sink Circuits
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
• Circuits Requiring Precision References
• Zener Diode Replacements

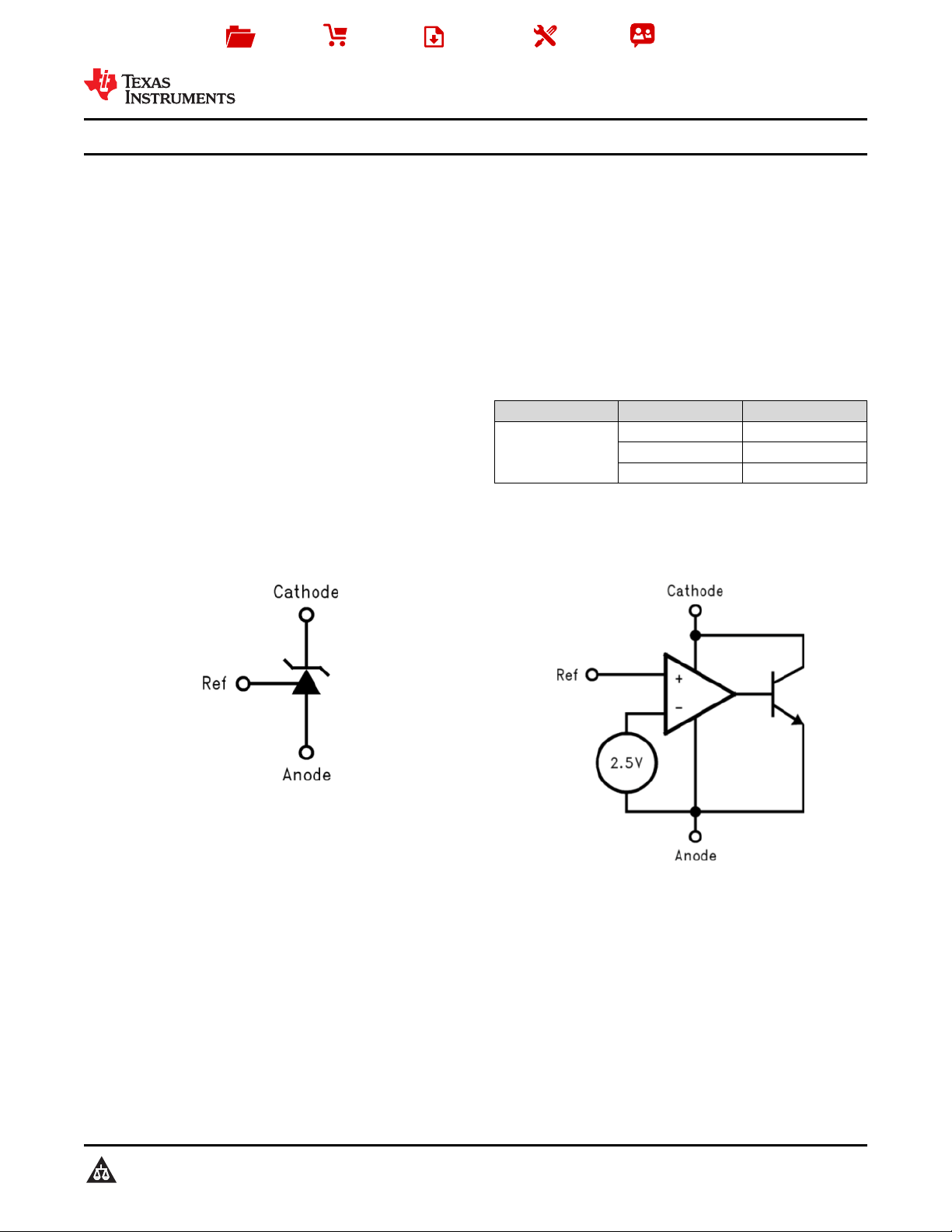

LM431 Symbol Functional Block Diagram
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
