LMC6032
www.ti.com
SNOS609C –NOVEMBER 1994–REVISED MARCH 2013
LMC6032 CMOS Dual Operational Amplifier
Check for Samples: LMC6032
1
FEATURES
• Long-Term Integrator
• Sample-and-Hold Circuit
2
• Specified for 2 kΩ and 600 Ω Loads
• Medical Instrumentation
• High Voltage Gain: 12 dB
• Low Offset Voltage Drift: 2.3 μV/°C
DESCRIPTION
• Ultra Low Input Bias Current: 40 fA
The LMC6032 is a CMOS dual operational amplifier
• Input Common-mode Range Includes V
−
which can operate from either a single supply or dual
• Operating Range From +5V to +15V Supply supplies. Its performance features include an input
common-mode range that reaches ground, low input
• I
SS
= 400 μA/Amplifier; Independent of V
+
bias current, and high voltage gain into realistic loads,
• Low Distortion: 0.01% at 10 kHz
such as 2 kΩ and 600 Ω.
• Slew Rate: 1.1 V/μs
This chip is built with TI's advanced Double-Poly
• Improved Performance Over TLC272
Silicon-Gate CMOS process.
See the LMC6034 datasheet for a CMOS quad
APPLICATIONS
operational amplifier with these same features. For
• High-Impedance Buffer or Preamplifier
higher performance characteristics refer to the
LMC662.
• Current-to-Voltage Converter

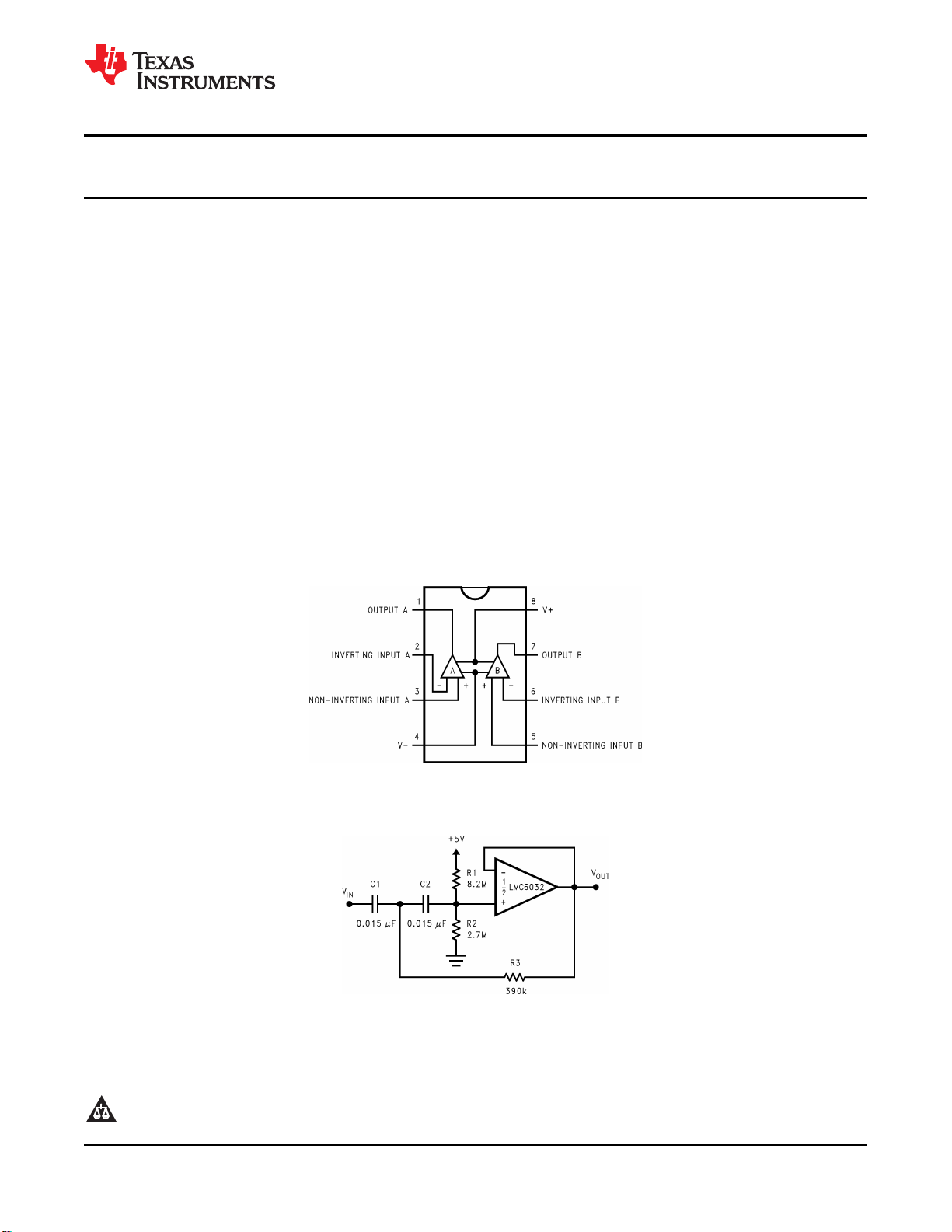

CONNECTION DIAGRAMS
8-Pin PDIP/SOIC
Top View
Figure 1. 10 Hz High-Pass Filter
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 1994–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
