SLOS018H − MAY 1988 − REVISED NOVEMBER 2004
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D Single-Supply Operation
− Input Voltage Range Extends to Ground
− Output Swings to Ground While Sinking
Current
D Input Offset Voltage
− 150 µV Max at 25°C for LT1013A
D Offset-Voltage Temperature Coefficient
− 2.5 µV/°C Max for LT1013A
D Input Offset Current
− 0.8 nA Max at 25°C for LT1013A
D High Gain . . . 1.5 V/µV Min (R
L
= 2 kΩ),
0.8 V/µV Min (R
L
= 600 kΩ) for LT1013A
D Low Supply Current . . . 0.5 mA Max at
T
A
= 25°C for LT1013A
D Low Peak-to-Peak Noise Voltage . . . 0.55 µV
Typ
D Low Current Noise . . . 0.07 pA/√Hz Typ
description/ordering information
The LT1013 devices are dual precision
operational amplifiers, featuring high gain, low
supply current, low noise, and low-offset-voltage
temperature coefficient.
The LT1013 devices can be operated from a
single 5-V power supply; the common-mode input
voltage range includes ground, and the output can
also swing to within a few millivolts of ground.
Crossover distortion is eliminated. The LT1013
can be operated with both dual ±15-V and single
5-V supplies.
The LT1013C, LT1013AC, and LT1013D are characterized for operation from 0°C to 70°C. The LT1013I,
LT1013AI, and LT1013DI are characterized for operation from −40°C to 105°C. The LT1013M, LT1013AM, and
LT1013DM are characterized for operation over the full military temperature range of −55°C to 125°C.
Copyright 2004, Texas Instruments Incorporated
!"# $%
$ ! ! & '
$$ ()% $ !* $ #) #$
* ## !%
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
1
2
3
4
8
7
6
5
1IN+
V
CC−
2IN+
2IN−
1IN−
1OUT
V
CC+
2OUT

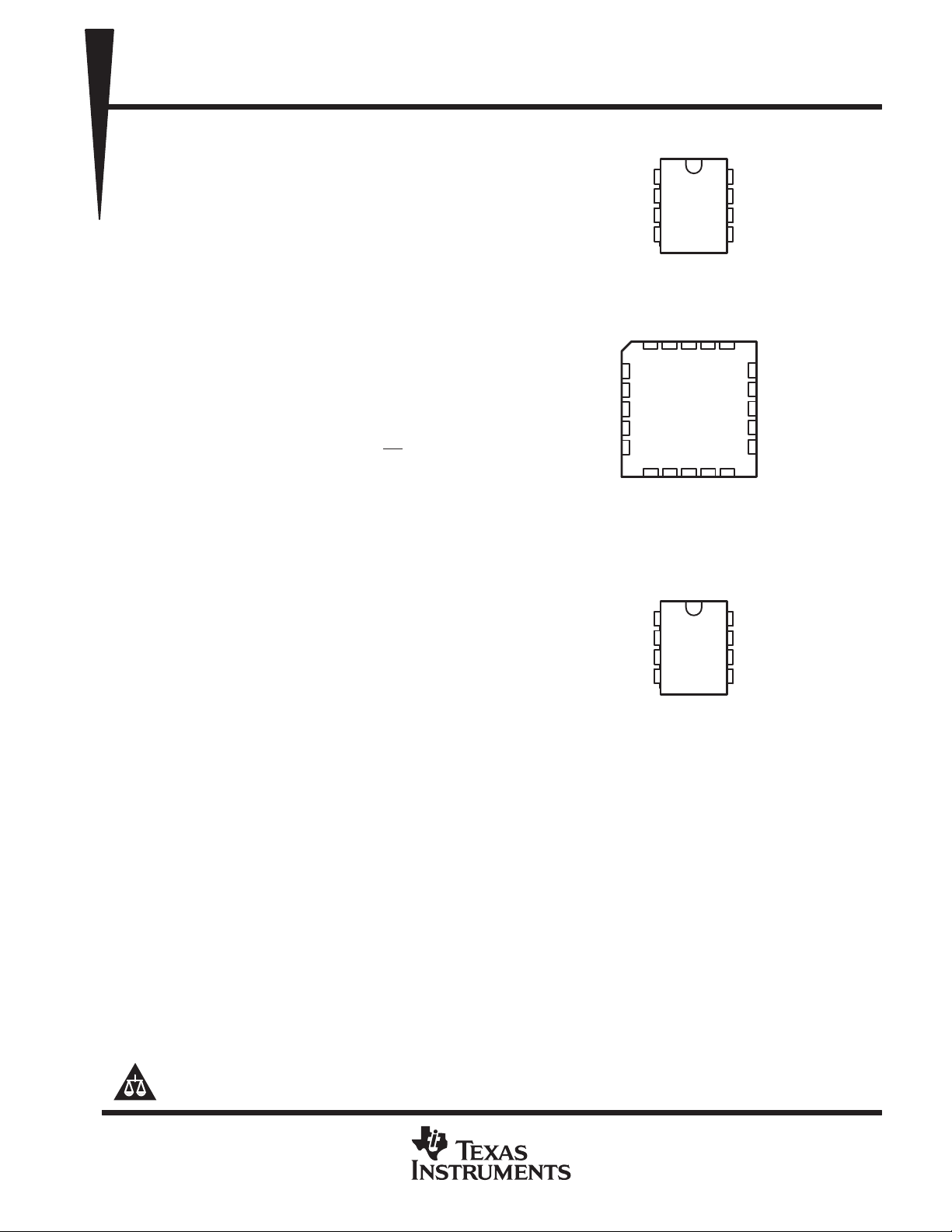

LT1013, LT1013D ...D PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
NC
2OUT
NC
2IN−
NC
NC
1IN−
NC
1IN+
NC
LT1013, LT1013A . . . FK PACKAGE
(TOP VIEW)
NC
1OUT
NC
NC
NC
NC
NC
2IN+
CC+
V
CC−
V
1
2
3
4
8
7
6
5
1OUT
1IN−
1IN+
V
CC−
V
CC+
2OUT
2IN−
2IN+
LT1013, LT1013D . . . JG OR P PACKAGE
(TOP VIEW)
NC − No internal connection
!$ !# ++,-- ## ! $
# &( $% ## & !$ !$
!* $ #) #$ * ## !%
