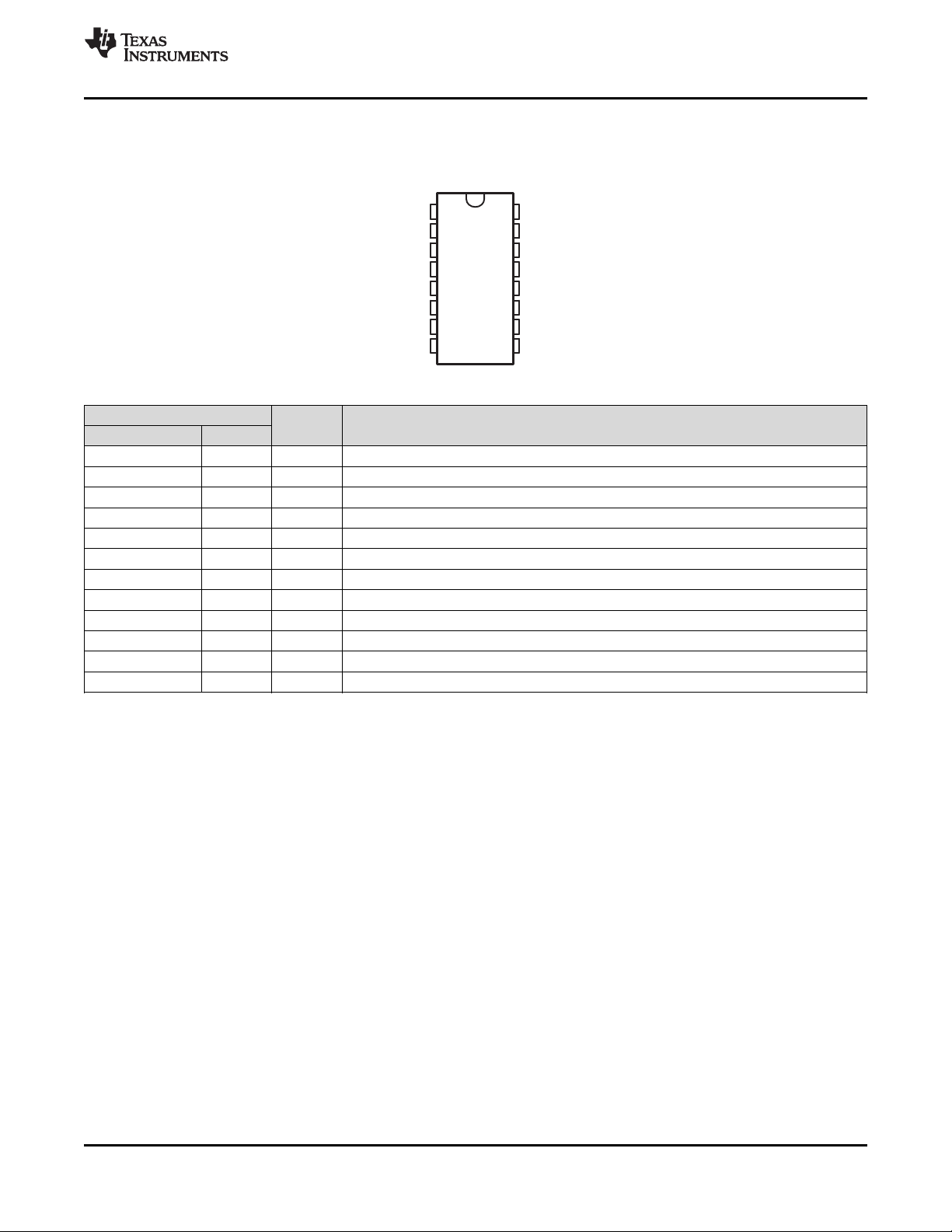

D, DB, DW, OR PW PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
C1+
V+
C1−
C2+
C2−
V−
DOUT2
RIN2
V
CC
GND
DOUT1
RIN1
ROUT1
DIN1
DIN2
ROUT2
MAX3232
www.ti.com
SLLS410K –JANUARY 2000–REVISED JANUARY 2015
6 Pin Configuration and Functions
Pin Functions
PIN
TYPE DESCRIPTION
NAME NO.
C1+ 1 — Positive lead of C1 capacitor
V+ 2 O Positive charge pump output for storage capacitor only
C1– 3 — Negative lead of C1 capacitor
C2+ 4 — Positive lead of C2 capacitor
C2– 5 — Negative lead of C2 capacitor
V– 6 O Negative charge pump output for storage capacitor only
DOUT2, DOUT1 7, 14 O RS232 line data output (to remote RS232 system)
RIN2, RIN1 8, 13 I RS232 line data input (from remote RS232 system)
ROUT2, ROUT1 9, 12 O Logic data output (to UART)
DIN2, DIN1 10, 11 I Logic data input (from UART)
GND 15 — Ground
VCC 16 — Supply Voltage, Connect to external 3 V to 5.5 V power supply
Copyright © 2000–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: MAX3232
