Package Dimensions

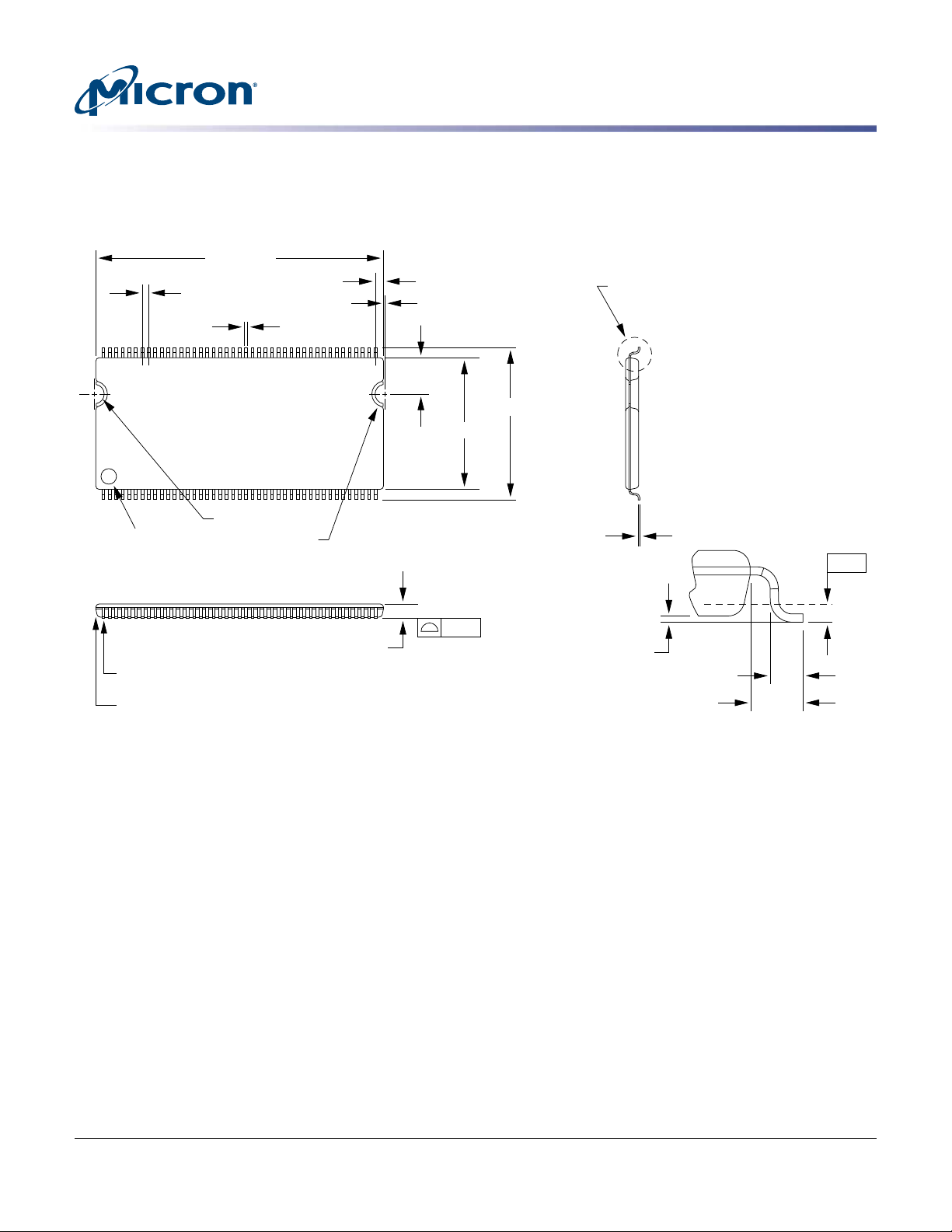

Figure 4: 86-Pin Plastic TSOP II (400 mil) – Package Codes TG/P
See Detail A
2X R 1.00
2X R 0.75
0.50
TYP
0.61
10.16 ±0.08
0.50 ±0.10
11.76 ±0.20
Pin #1 ID
Detail A
22.22 ±0.08
0.20
+0.07
-0.03
0.15
+0.03
-0.02
0.10
+0.10
-0.05
1.20 MAX
0.10
0.25
Gage
plane
0.80
TYP
2X 0.10
2X 2.80
Plastic package material: Epoxy novolac
Plated lead finish:
TG (90% Sn, 10% Pb) or P (100% Sn) 0.01 ±0.005 thick per side
Package width and length do not include
mold protrusion. Allowable protrusion is
0.25 per side.
Notes:
1. All dimensions are in millimeters.
2. Package width and length do not include mold protrusion; allowable mold protrusion is
0.25mm per side.
3. "2X" means the notch is present in two locations (both ends of the device).
4. Package may or may not be assembled with a location notch.
128Mb: x32 SDRAM
Package Dimensions
PDF: 09005aef80872800
128mb_x32_sdram.pdf - Rev. U 04/13 EN
12
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2001 Micron Technology, Inc. All rights reserved.
