2013 Microchip Technology Inc. Preliminary DS40001715B-page 439
PIC16(L)F1704/8
35.0 PACKAGING INFORMATION
35.1 Package Marking Information
Legend: XX...X Customer-specific information
Y Year code (last digit of calendar year)
YY Year code (last 2 digits of calendar year)
WW Week code (week of January 1 is week ‘01’)
NNN Alphanumeric traceability code
Pb-free JEDEC designator for Matte Tin (Sn)
* This package is Pb-free. The Pb-free JEDEC designator ( )
can be found on the outer packaging for this package.
Note: In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for customer-specific information.
3
e
3
e

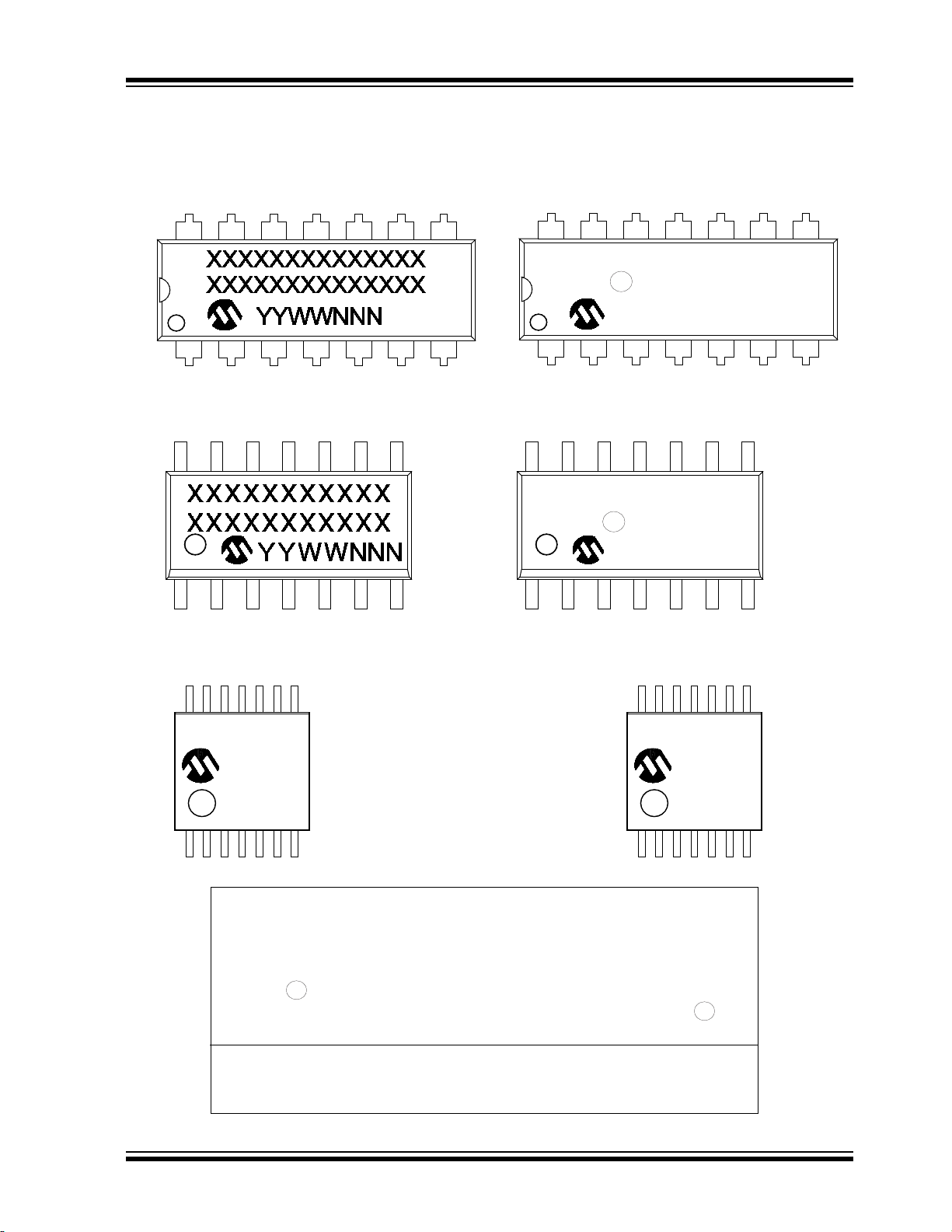

28-Lead SOIC (7.50 mm) Example
14-Lead PDIP (300 mil) Example
14-Lead SOIC (3.90 mm) Example
1304017
3
e
PIC16F1704
-I/P
PIC16F1704
-I/SO
1304017
3
e
14-Lead TSSOP (4.4 mm) Example
YYWW
NNN
XXXXXXXX
16F1704
1304
017
