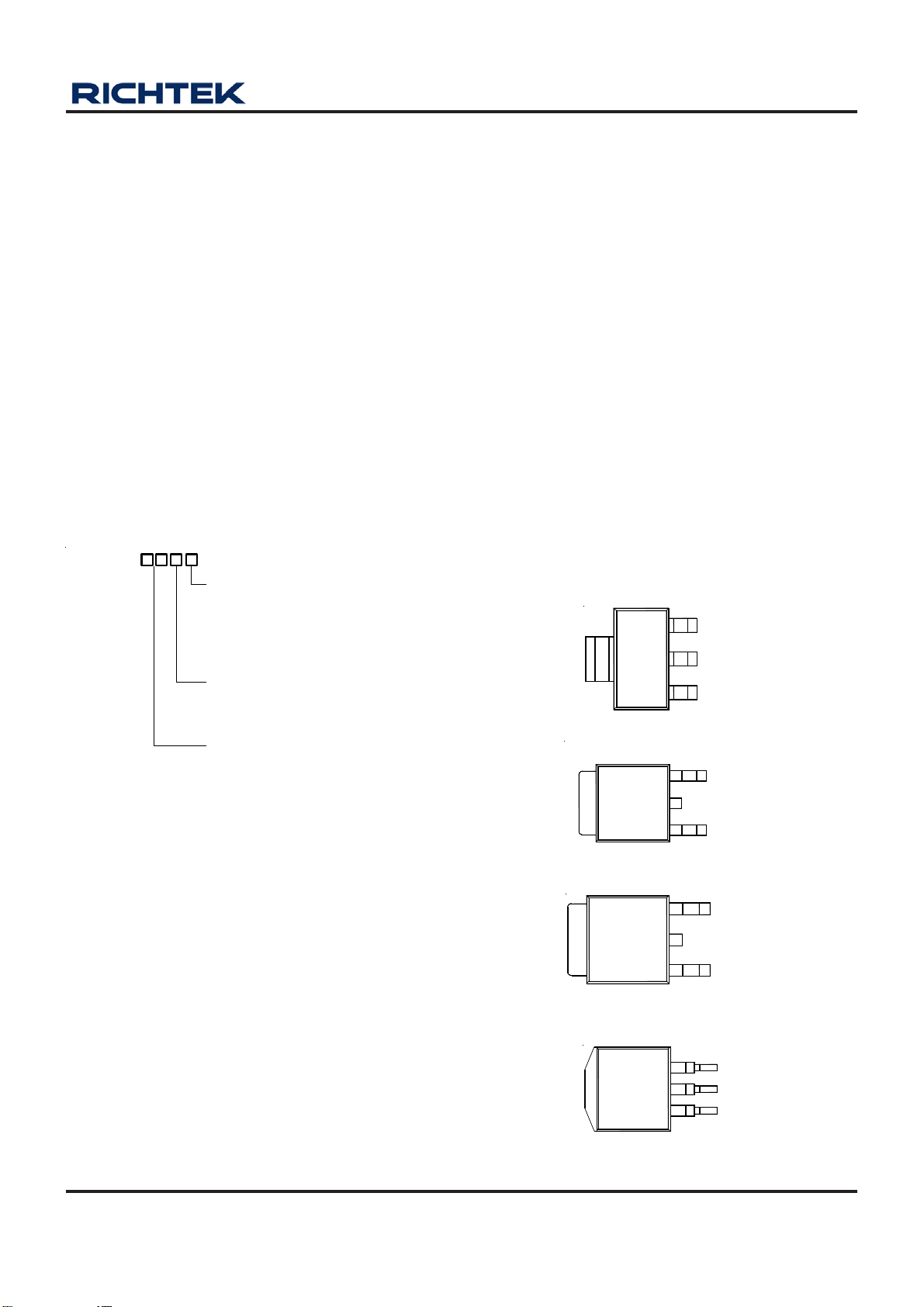

RT9164C
1
DS9164C-03 April 2011 www.richtek.com
(TOP VIEW)
1A Fixed and Adjustable Low Dropout Positive Voltage
Regulators
General Description
The RT9164C series of high performance positive voltage
regulators is designed for applications requiring low dropout
performance at fully rated current. Additionally, the RT9164C
series provides excellent regulation over variations in line
and load. Outstanding features include low dropout
performance at rated current, fast transient response,
internal current-limiting, and thermal-shutdown protection
of the output device. The RT9164C series of three terminal
regulators offers fixed and adjustable voltage options
available in space-saving SOT-223, TO-252, and TO-263
packages.
Ordering Information
Features
zz
zz
z Low Dropout Performance, 1.4V Maximal
zz
zz
z Full Current Rating Over Line and Temperature
zz
zz
z Fast Transient Response
zz
zz
z ± 1% Output Voltage Accuracy
zz
zz
z 2.5V and 3.3V Fixed/Adjustable Output Voltage
zz
zz
z SOT-223, TO-252, and TO-263 Packages
zz
zz
z RoHS Compliant and 100% Lead (Pb)-Free
Applications
z Active SCSI Termination
z Low Voltage Microcontrollers
z Switching Power Supply Post-Regulator
Pin ConFigurations
TO-252 (R-Type)
SOT-223
TO-263
1
2
3
ADJ/GND
VOUT (TAB)
VIN
1
2
3
ADJ/GND (TAB)
VOUT
VIN
TO-252
1
2
3
ADJ/GND
VOUT (TAB)
VIN
ADJ/GND
VOUT (TAB)
VIN
1
2
3
Note :
Richtek products are :
` RoHS compliant and compatible with the current require-
ments of IPC/JEDEC J-STD-020.
` Suitable for use in SnPb or Pb-free soldering processes.
RT9164C-
Package Type
G : SOT-223
L: TO-252
LR : TO-252 (R-Type)
M : TO-263
Lead Plating System
P : Pb Free
G : Green (Halogen Free and Pb Free)
Output Voltage
Default : Adjustable
25 : 2.5V
33 : 3.3V
Marking Information
For marking information, contact our sales representative
directly or through a Richtek distributor located in your
area.
