SN74LV595APWT 数据手册 - TI（德州仪器）
制造商:
TI（德州仪器）
分类:
移位寄存器
封装:
TSSOP-16
描述:
TEXAS INSTRUMENTS SN74LV595APWT 移位寄存器, LV系列, 串行至并行, 1元件, TSSOP, 16 引脚, 2 V, 5.5 V
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
引脚图在P3Hot
典型应用电路图在P13P15P16
原理图在P1P13
封装尺寸在P18P20P21
标记信息在P18P19
封装信息在P17P18P19P20P21
技术参数、封装参数在P4
应用领域在P1P19P30
电气规格在P6
导航目录
SN74LV595APWT数据手册
Page:
of 30 Go
若手册格式错乱，请下载阅览PDF原文件
3D
C3
1D
C1
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
3D
C3
2D
C2
R
Q
Q
Q
Q
Q
Q
Q
Q
Q
A
B
C
D
E
F
G
H
H
′
OE
SRCLR
RCLK
SRCLK
SER
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
SN74LV595A
SCLS414P –APRIL 1998–REVISED OCTOBER 2014
SN74LV595A 8-Bit Shift Registers With 3-State Output Registers
1 Features 2 Applications
1
• 2-V to 5.5-V V
CC
Operation
• Network Switches
• Max t
pd
of 7.1 ns at 5 V • Power Infrastructures
• Typical V
OLP
(Output Ground Bounce) • PCs and Notebooks
< 0.8 V at V
CC
= 3.3 V, T
A
= 25°C
• LED Displays
• Typical V
OHV
(Output V
OH
Undershoot)
• Servers
> 2.3 V at V
CC
= 3.3 V, T
A
= 25°C
• I/O Expanders
• Support Mixed-Mode Voltage Operation on All
Ports
3 Description
• 8-Bit Serial-In, Parallel-Out Shift
The SN74LV595A device contains an 8-bit serial-in,
parallel-out shift register that feeds an 8-bit D-type
• I
off
Supports Live Insertion, Partial Power-Down
storage register. Both the shift register clock (SRCLK)
Mode, and Back-Drive Protection
and storage register clock (RCLK) are positive-edge
• Shift Register Has Direct Clear
triggered.
• Latch-Up Performance Exceeds 250 mA Per
JESD 17
Device Information
PART NUMBER PACKAGE BODY SIZE (NOM)
• ESD Protection Exceeds JESD 22
VQFN (16) 4.00 mm × 3.50 mm
– 2000-V Human-Body Model
TSSOP (16) 5.00 mm × 4.40 mm
– 200-V Machine Model
SNx4LV595A
SOP (16) 10.20 mm × 5.30 mm
– 1000-V Charged-Device Model
SOIC (16) 9.00 mm × 3.90 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

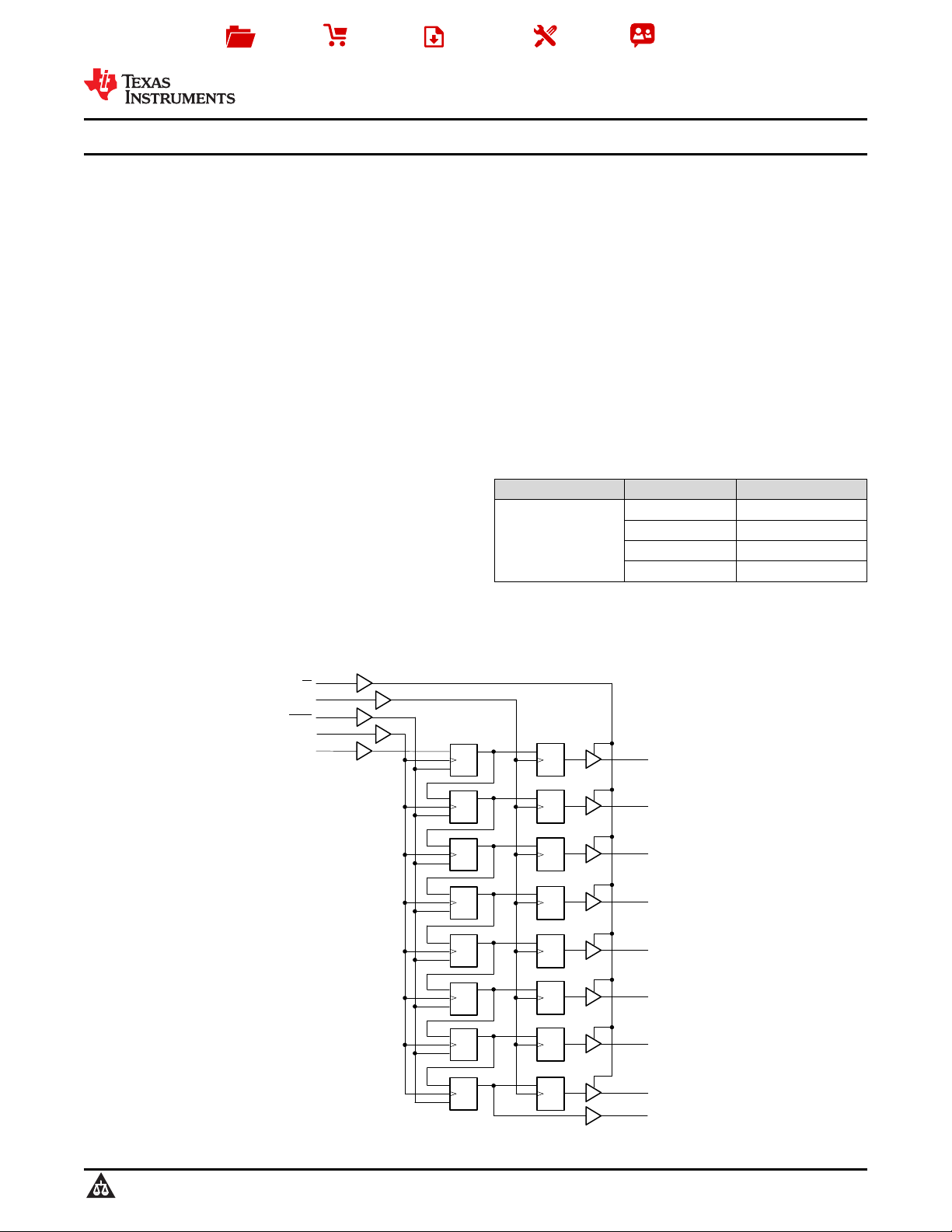

4 Simplified Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
