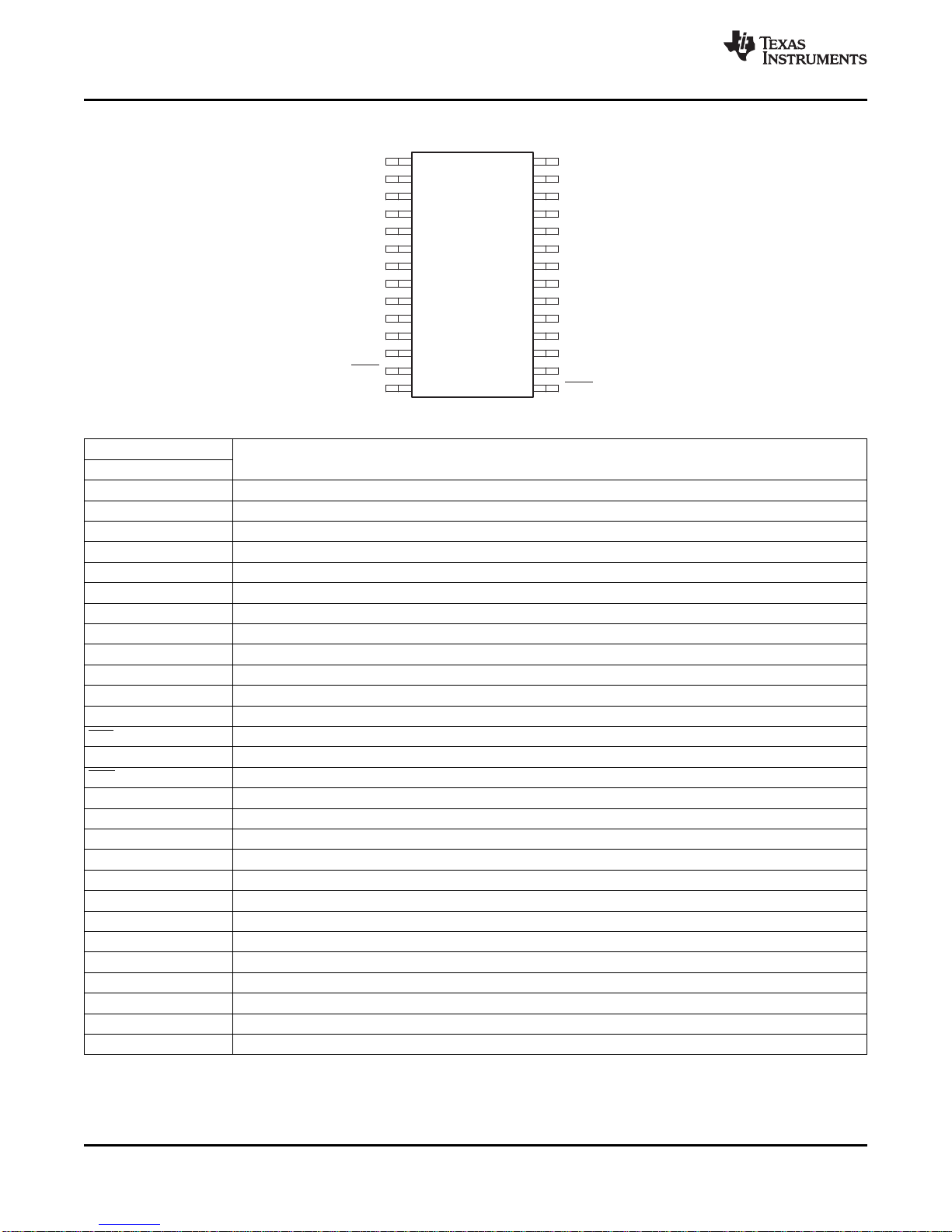

DB PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
9
19
20
21
22
23
24
25
26
27
28
LGRP
RCKI
NC
SDIN
BCKI
LRCKI
V
IO
DGND
BYPAS
IFMT0
MODE2
MODE1
MODE0
BCKO
LRCKO
SDOUT
V
DD
DGND
TDMI
OFMT0
10
11
12
13
14
IFMT1
IFMT2
RST
MUTE
15
16
17
18
OFMT1
OWL0
OWL1
RDY
SRC4190-Q1
SBFS034A –SEPTEMBER 2008–REVISED OCTOBER 2009
www.ti.com
TERMINAL FUNCTIONS
TERMINAL
DESCRIPTION
NAME NO.
LGRP 1 Low group delay control input (active high)
RCKI 2 Reference clock input
NC 3 No internal connection
SDIN 4 Audio serial data input
BCKI 5 Input port bit clock I/O
LRCKI 6 Input port left/right word clock I/O
V
IO
7 Digital I/O supply, 1.65 V to V
DD
DGND 8 Digital ground
BYPAS 9 ASRC bypass control input (active high)
IFMT0 10 Input port data format control input
IFMT1 11 Input port data format control input
IFMT2 12 Input port data format control input
RST 13 Reset input (active low)
MUTE 14 Output mute control input (active high)
RDY 15 ASRC ready status output (active low)
OWL1 16 Output port data word length control input
OWL0 17 Output port data word length control input
OFMT1 18 Output port data format control input
OFMT0 19 Output port data format control input
TDMI 20 TDM data input (connect to DGND when not in use)
DGND 21 Digital ground
V
DD
22 Digital core supply, 3.3 V
SDOUT 23 Audio serial data output
LRCKO 24 Output port left/right word clock I/O
BCKO 25 Output port bit clock I/O
MODE0 26 Serial port mode control input
MODE1 27 Serial port mode control input
MODE2 28 Serial port mode control input
2 Submit Documentation Feedback Copyright © 2008–2009, Texas Instruments Incorporated
Product Folder Link(s): SRC4190-Q1
Downloaded from Elcodis.com electronic components distributor
