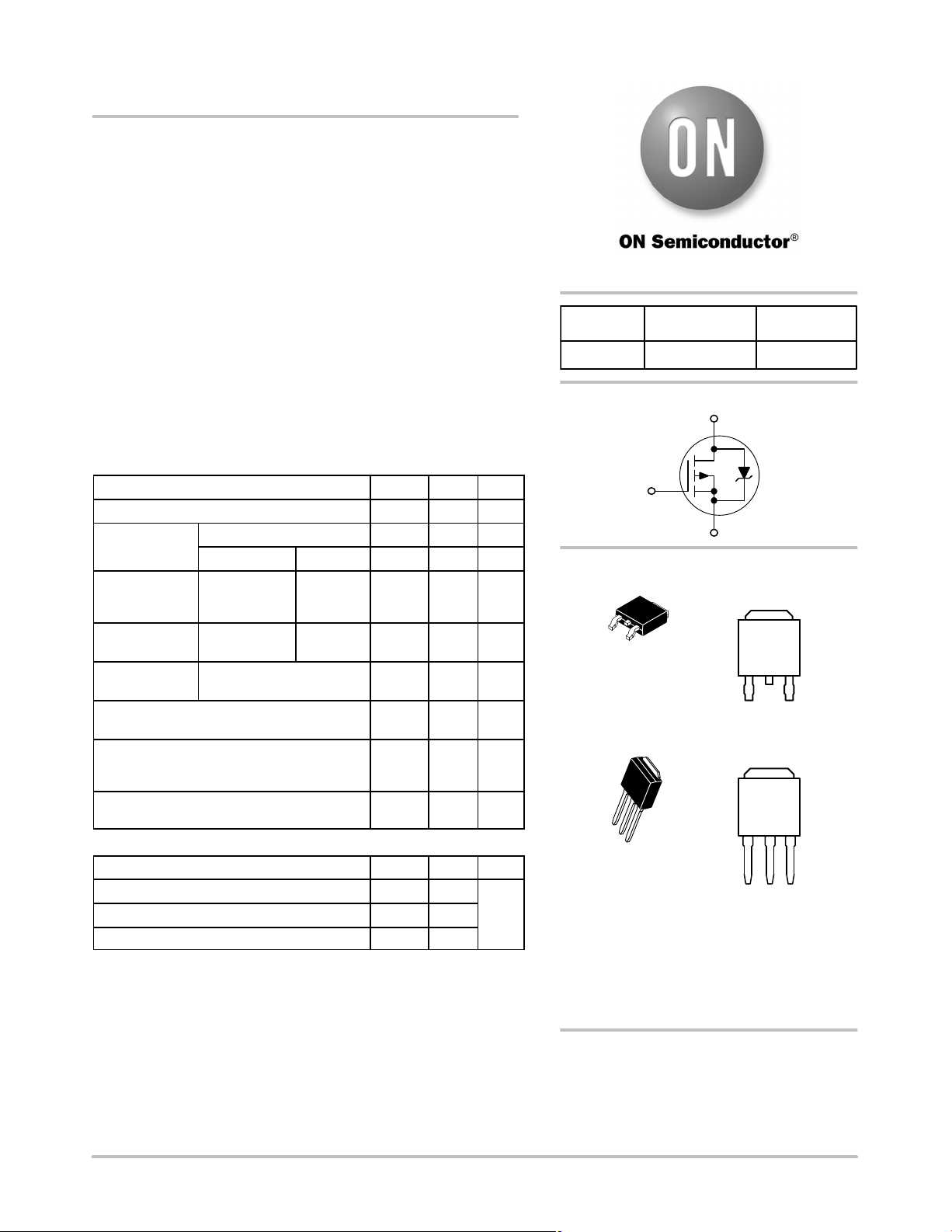

© Semiconductor Components Industries, LLC, 2011
August, 2011 − Rev. 6
1 Publication Order Number:
NTD20P06L/D
NTD20P06L, NTDV20P06L
Power MOSFET
−60 V, −15.5 A, Single P−Channel, DPAK
Features
• Withstands High Energy in Avalanche and Commutation Modes
• Low Gate Charge for Fast Switching
• AEC Q101 Qualified − NTDV20P06L
• These Devices are Pb−Free and are RoHS Compliant
Applications
• Bridge Circuits
• Power Supplies, Power Motor Controls
• DC−DC Conversion
MAXIMUM RATINGS (T
J
= 25°C unless otherwise noted)
Parameter Symbol Value Unit
Drain−to−Source Voltage V
DSS
−60 V
Gate−to−Source
Voltage
Continuous V
GS
$20 V
Non−Repetitive t
p
v10 ms V
GSM
$30
Continuous
Drain Current
(Note 1)
Steady State T
A
= 25°C I
D
−15.5 A
Power Dissipa-
tion (Note 1)
Steady State T
A
= 25°C P
D
65 W
Pulsed Drain
Current
t
p
= 10 ms
I
DM
$50 A
Operating Junction and Storage Temperature T
J
,
T
STG
−55 to
175
°C
Single Pulse Drain−to−Source Avalanche
Energy (V
DD
= 25 V, V
GS
= 5 V, I
PK
= 15 A,
L = 2.7 mH, R
G
= 25 W)
E
AS
304 mJ
Lead Temperature for Soldering Purposes
(1/8” from case for 10 s)
T
L
260 °C
THERMAL RESISTANCE RATINGS
Parameter Symbol Max Unit
Junction−to−Case (Drain)
R
q
JC
2.3
°C/W
Junction−to−Ambient – Steady State (Note 1)
R
q
JA
80
Junction−to−Ambient – Steady State (Note 2)
R
q
JA
110
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Surface−mounted on FR4 board using 1 in sq. pad size
(Cu area = 1.127 in sq. [1 oz] including traces)
2. Surface−mounted on FR4 board using the minimum recommended pad size
(Cu area = 0.412 in sq.)
P−Channel
D
S
G
1
Gate
3
Source
2
Drain
4
Drain
DPAK
CASE 369C
STYLE 2
MARKING DIAGRAMS
20P06L Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
1
2
3
4
1
Gate
3
Source
2
Drain
4
Drain
IPAK/DPAK
CASE 369D
STYLE 2
1
2
3
4
−60 V
130 mW @ −5.0 V
I
D
MAX
(Note 1)
V
(BR)DSS
AYWW
T20
P06LG
AYWW
T20
P06LG
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
