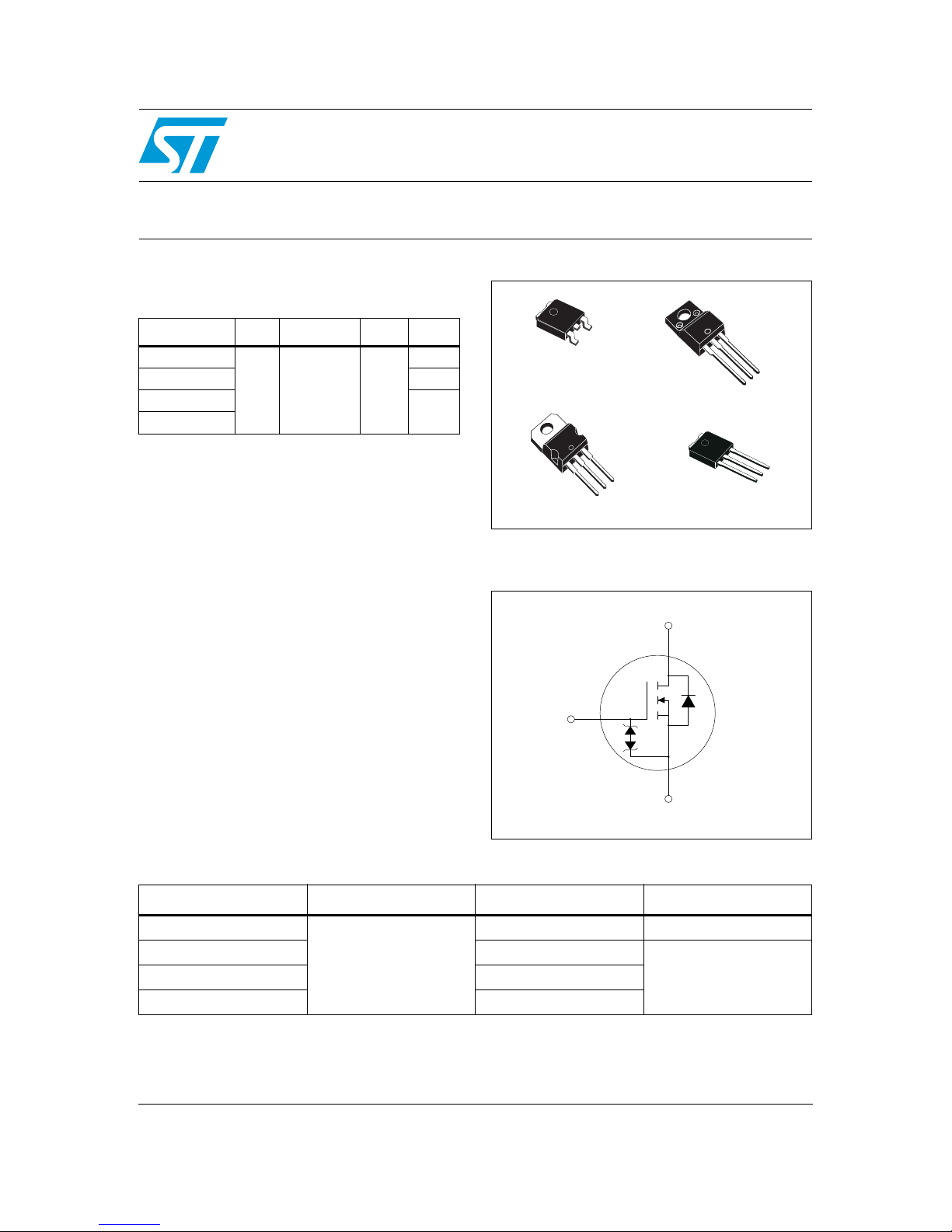

This is information on a product in full production.
March 2013 Doc ID 023448 Rev 4 1/23
23
STD7N80K5, STF7N80K5,
STP7N80K5, STU7N80K5
N-channel 800 V, 0.95 Ω typ., 6 A Zener-protected SuperMESH™ 5
Power MOSFET in DPAK, TO-220FP, TO-220 and IPAK packages
Datasheet
−
production data
Features
■
Worldwide best FOM (figure of merit)
■
Ultra low gate charge
■
100% avalanche tested
■
Zener-protected
Applications
■
Switching applications
Description
These devices are N-channel Zener-protected
Power MOSFETs realized in SuperMESH
™
5, a
revolutionary avalanche-rugged very high voltage
Power MOSFET technology based on an
innovative proprietary vertical structure. The
result is a drastic reduction in on-resistance and
ultra low gate charge for applications which
require superior power density and high
efficiency.
Figure 1. Internal schematic diagram
Order codes V
DS
R
DS(on)
max I
D
P
TOT
STD7N80K5
800 V 1.2 Ω 6 A
110 W
STF7N80K5 25 W
STP7N80K5
110 W
STU7N80K5
TO-220
1
2
3
TAB
1
2
3
TO-220FP
DPAK
1
3
TAB
2
3
2
1
TAB
IPAK
D(2, TAB)
G(1)
S(3)
AM01476v1
Table 1. Device summary
Order codes Marking Package Packaging
STD7N80K5
7N80K5
DPAK Tape and reel
STF7N80K5 TO-220FP
TubeSTP7N80K5 TO-220
STU7N80K5 IPAK
