Package information STM32F051x4 STM32F051x6 STM32F051x8
114/121 DocID022265 Rev 6
Using the values obtained in Table 74 T
Jmax
is calculated as follows:
– For LQFP64, 45 °C/W
T
Jmax
= 100 °C + (45 °C/W × 134 mW) = 100 °C + 6.03 °C = 106.03 °C
This is above the range of the suffix 6 version parts (–40 < T
J
< 105 °C).
In this case, parts must be ordered at least with the temp
erature range suffix 7 (see
Section 8: Part numbering) unless we reduce the power dissipation in order to be able to
use suffix 6 parts.
Refer to Figure 55 to select the required temperature range (suffix 6 or 7) according to your
ambient temperature or power requirements.

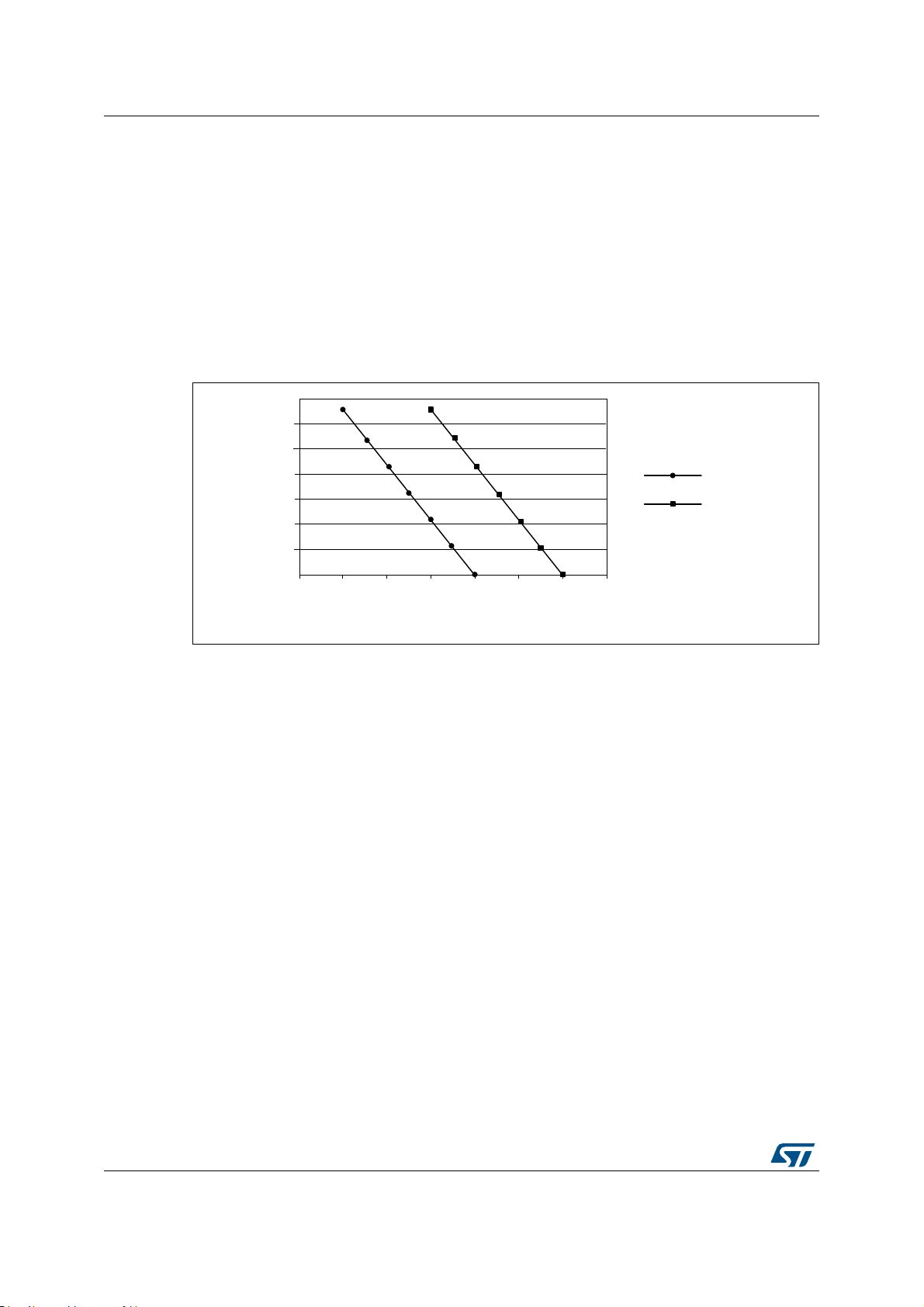

Figure 55. LQFP64 P
D
max versus T
A
06Y9
6XIIL[
6XIIL[
3
'
P:
7
$
&
