STM32F765VIH6 数据手册 - ST Microelectronics（意法半导体）

制造商:

ST Microelectronics（意法半导体）

封装:

TFBGA-100

描述:

ARM微控制器 - MCU High-performance and DSP with FPU, ARM Cortex-M7 MCU with 2 Mbytes Flash, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, DFSDM

Pictures:

3D模型

符号图

焊盘图

引脚图

产品图

页面导航:

引脚图在P55P56P57P58P59P60P61P62P63P64P65P66Hot

典型应用电路图在P136P137P166

封装尺寸在P219P220P221P222P223P224P225P226P227P228P229P230

型号编码规则在P36P247

技术参数、封装参数在P107P153

电气规格在P104P105P106P107P108P109P110P111P112P113P114P115

导航目录

引脚图在P55 P56 P57 P58 P59 P60 P61 P62 P63 P64 P65 P66
典型应用电路图在P136 P137 P166
封装尺寸在P219 P220 P221 P222 P223 P224 P225 P226 P227 P228 P229 P230
型号编码规则在P36 P247
技术参数、封装参数在P107 P153
电气规格在P104 P105 P106 P107 P108 P109 P110 P111 P112 P113 P114 P115

STM32F765VIH6数据手册

Page:

of 252 Go

PDF下载

若手册格式错乱，请下载阅览PDF原文件

DS11532 Rev 7 219/252
STM32F765xx STM32F767xx STM32F768Ax STM32F769xx Package information
251
7 Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK is an ST trademark.
7.1 LQFP100 package information
LQFP100 is a 100-pin, 14 x 14 mm low-profile quad flat package.

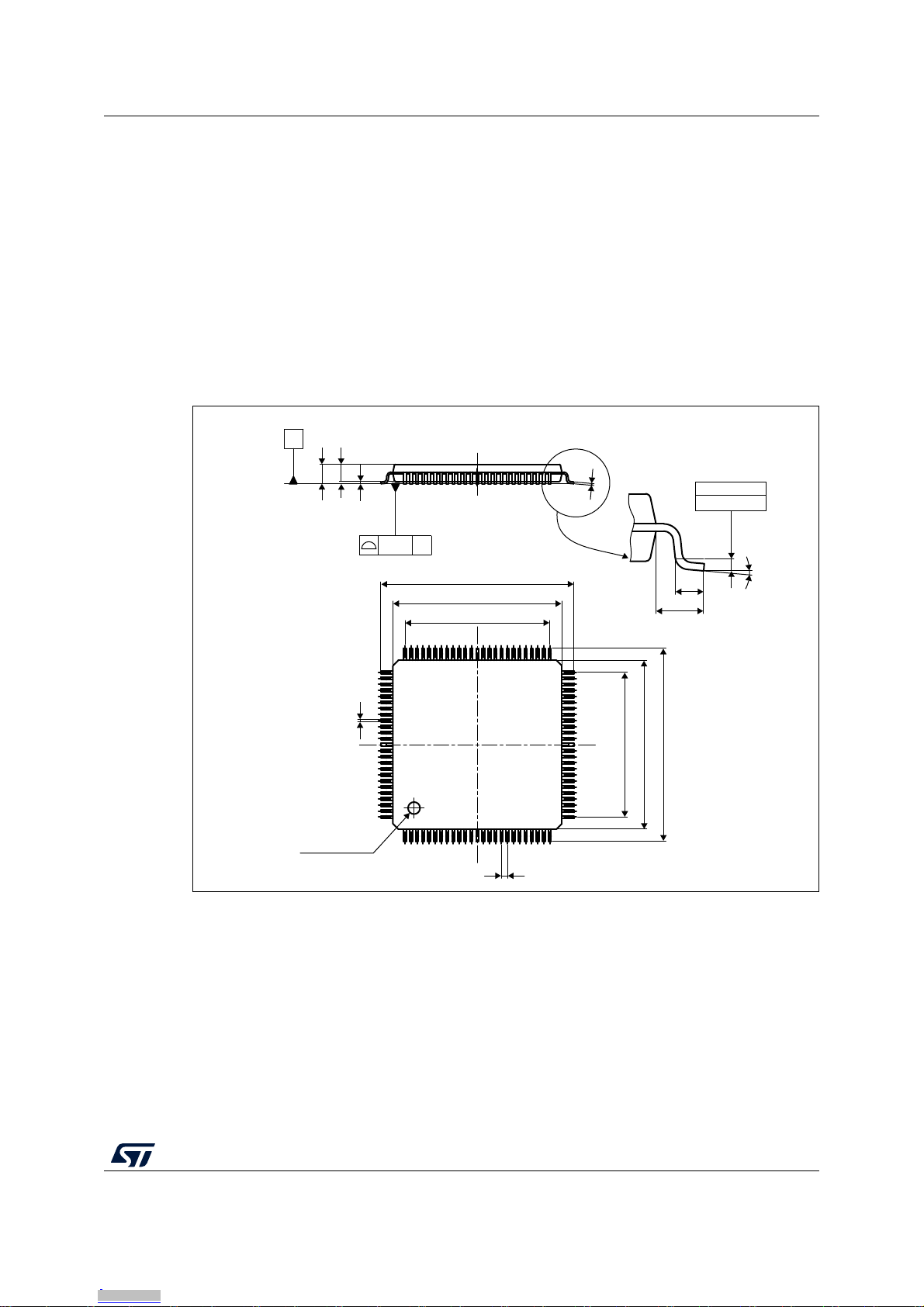

Figure 83. LQFP100 outline
1. Drawing is not to scale.
e
IDENTIFICATION
PIN 1
GAUGE PLANE
0.25 mm
SEATING PLANE
D
D1
D3
E3
E1
E
K
ccc
C
C
1
25
26
100
76
75
51
50
1L_ME_V5
A2
A
A1
L1
L
c
b
A1
