UCD7100PWPG4 数据手册 - TI（德州仪器）
制造商:
TI（德州仪器）
分类:
电源配件
封装:
HTSSOP-14
描述:
数字控制兼容单低侧± 4 -A的MOSFET电流检测驱动程序 Digital Control Compatible Single Low-Side ±4-A MOSFET Driver with Current Sense
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
引脚图在P3Hot
典型应用电路图在P14P15
原理图在P1P10
封装尺寸在P21P23P24
标记信息在P21
封装信息在P1P20P21P22P23P24
技术参数、封装参数在P4
应用领域在P1
电气规格在P5P6
导航目录
UCD7100PWPG4数据手册
Page:
of 31 Go
若手册格式错乱，请下载阅览PDF原文件
14
12
8
OUT
CS
3
4
2
5
6
3V3
AGND
IN
CLF
ILIM
UCD7100PWP
Bias
Winding
VIN
VOUT
VDD
2
Isolation
Amplifier
PWMB
INT
Digital Controller
PWMA
VDD
AN2
AN3
AN1
AGND
Communication
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
UCD7100
SLUS651D –MARCH 2005–REVISED OCTOBER 2014
UCD7100 Digital Control Compatible Single Low-Side ±4-A MOSFET Driver with Current
Sense
1 Features 3 Description
The UCD7100 is a member of the UCD7K family of
1
• Adjustable Current Limit Protection
digital control compatible drivers for applications
• 3.3-V, 10-mA Internal Regulator
utilizing digital control techniques or applications
• DSP/µC Compatible Inputs
requiring fast local peak current limit protection.
• Single ±4-A TrueDrive™ High Current Driver
The UCD7100 is a low-side ±4-A high-current
• 10-ns Typical Rise and Fall Times with 2.2-nF
MOSFET gate driver. It allows the digital power
Loads
controllers such as UCD9110 or UCD9501 to
interface to the power stage in single ended
• 25-ns Input-to-Output Propagation Delay
topologies. It provides a cycle-by-cycle current limit
• 25-ns Current Sense to Output Delay
function with programmable threshold and a digital
• Programmable Current Limit Threshold
output current limit flag which can be monitored by
the host controller. With a fast 25-ns cycle-by-cycle
• Digital Output Current Limit Flag
current limit protection, the driver can turn off the
• 4.5-V to 15-V Supply Voltage Range
power stage in the unlikely event that the digital
• Rated from -40°C to 105°C
system can not respond to a failure situation in time.
• Lead(Pb)-Free Packaging
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
2 Applications
UCD7100 HTSSOP (14) 5.00 mm x 4.40 mm
• Digitally Controlled Power Supplies
(1) For all available packages, see the orderable addendum at
• DC/DC Converters
the end of the datasheet.
• Motor Controllers
• Line Drivers

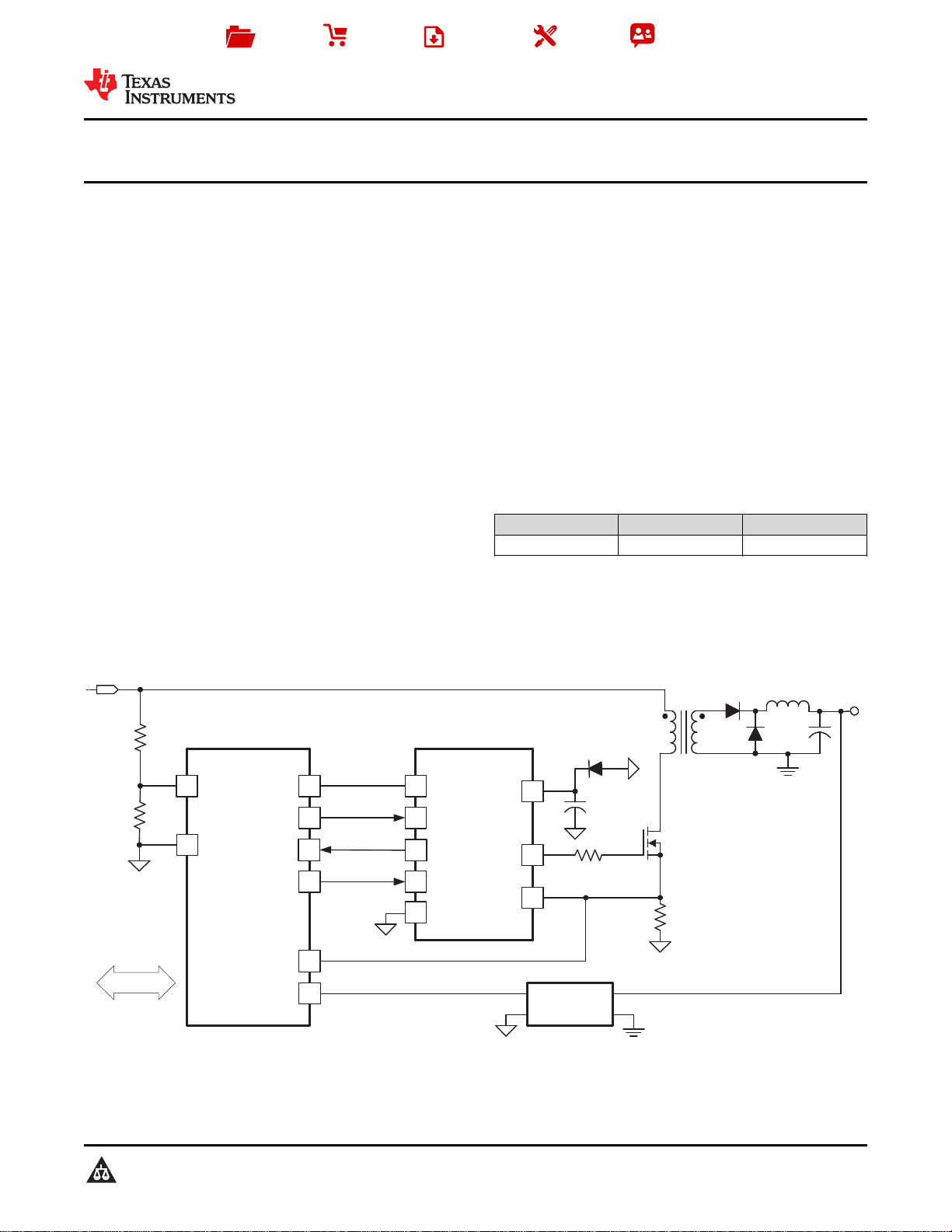

Simplified Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
