08051A102J4T2A数据手册
Page:
of 4 Go
若手册格式错乱，请下载阅览PDF原文件
6

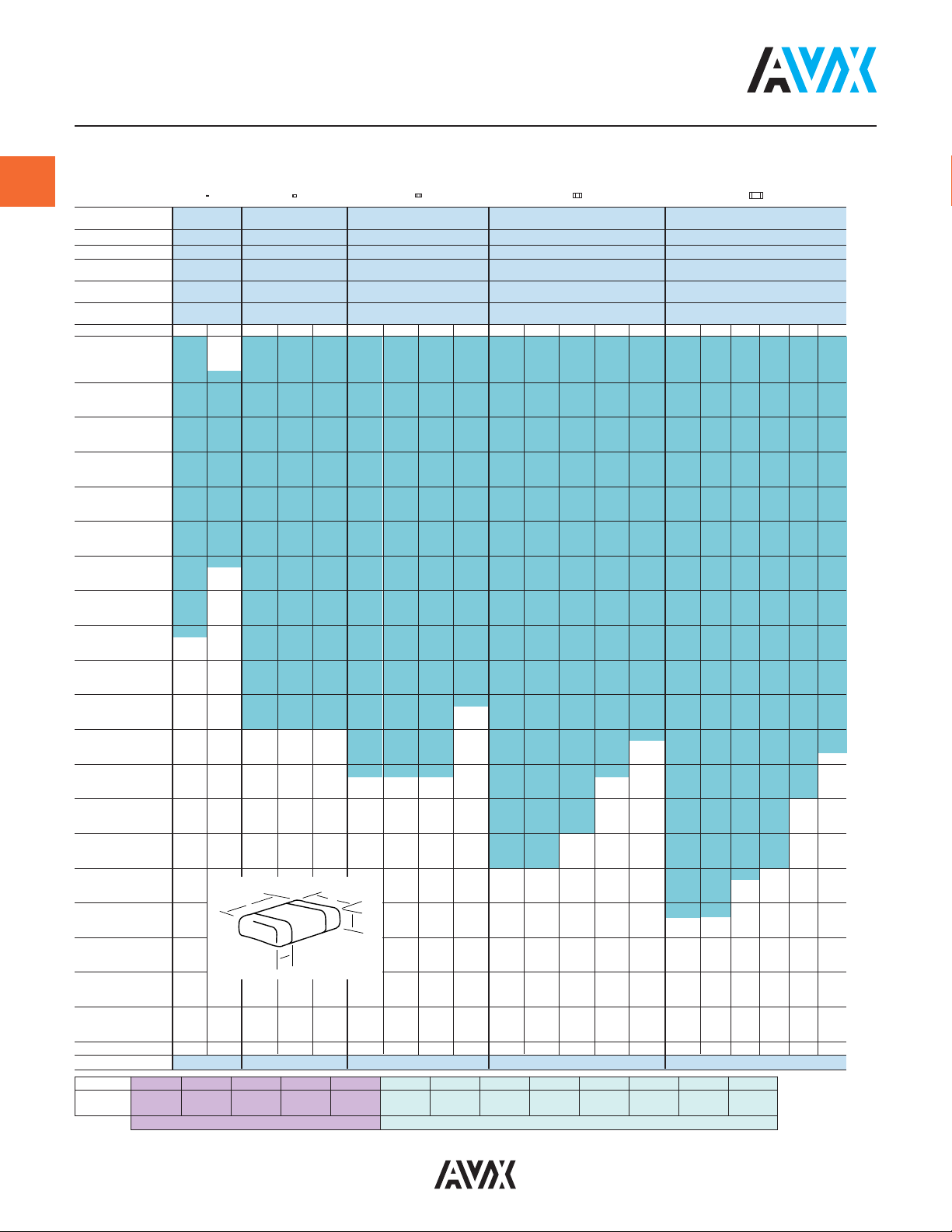

C0G (NP0) Dielectric
Capacitance Range
Letter ACEGJKMNPQXYZ
Max. 0.33 0.56 0.71 0.90 0.94 1.02 1.27 1.40 1.52 1.78 2.29 2.54 2.79
Thickness (0.013) (0.022) (0.028) (0.035) (0.037) (0.040) (0.050) (0.055) (0.060) (0.070) (0.090) (0.100) (0.110)
PAPER EMBOSSED
SIZE 0201 0402 0603 0805 1206
Soldering Reflow Only Reflow/Wave Reflow/Wave Reflow/Wave Reflow/Wave
Packaging All Paper All Paper All Paper Paper/Embossed Paper/Embossed
(L) Length
mm 0.60 ± 0.03 1.00 ± 0.10 1.60 ± 0.15 2.01 ± 0.20 3.20 ± 0.20
(in.) (0.024 ± 0.001) (0.040 ± 0.004) (0.063 ± 0.006) (0.079 ± 0.008) (0.126 ± 0.008)
(W) Width
mm 0.30 ± 0.03 0.50 ± 0.10 0.81 ± 0.15 1.25 ± 0.20 1.60 ± 0.20
(in.) (0.011 ± 0.001) (0.020 ± 0.004) (0.032 ± 0.006) (0.049 ± 0.008) (0.063 ± 0.008)
(t) Terminal
mm 0.15 ± 0.05 0.25 ± 0.15 0.35 ± 0.15 0.50 ± 0.25 0.50 ± 0.25
(in.) (0.006 ± 0.002) (0.010 ± 0.006) (0.014 ± 0.006) (0.020 ± 0.010) (0.020 ± 0.010)
WVDC 25 50 16 25 50 16 25 50 100 16 25 50 100 200 16 25 50 100 200 500
Cap 0.5 A C C C G G G G J J J J J J J J J J J
(pF) 1.0 A C C C G G G G J J J J J J J J J J J
1.2A C C CGGGG J J JJ J J JJJJJ
1.5 A A C C C G G G G J J J J J J J J J J J
1.8 A A C C C G G G G J J J J J J J J J J J
2.2 A A C C C G G G G J J J J J J J J J J J
2.7 A A C C C G G G G J J J J J J J J J J J
3.3 A A C C C G G G G J J J J J J J J J J J
3.9 A A C C C G G G G J J J J J J J J J J J
4.7 A A C C C G G G G J J J J J J J J J J J
5.6 A A C C C G G G G J J J J J J J J J J J
6.8 A A C C C G G G G J J J J J J J J J J J
8.2 A A C C C G G G G J J J J J J J J J J J
10 A A C C C G G G G J J J J J J J J J J J
12 A A C C C G G G G J J J J J J J J J J J
15 A A C C C G G G G J J J J J J J J J J J
18 A A C C C G G G G J J J J J J J J J J J
22 A A C C C G G G G J J J J J J J J J J J
27 A A C C C G G G G J J J J J J J J J J J
33 A A C C C G G G G J J J J J J J J J J J
39A C C CGGGG J J JJ J J JJJJJ
47A C C CGGGG J J JJ J J JJJJJ
56A C C CGGGG J J JJ J J JJJJJ
68A C C CGGGG J J JJ J J JJJJJ
82A C C CGGGG J J JJ J J JJJJJ
100A C C CGGGG J J JJ J J JJJJJ
120 C C C G G G G J J J J J J J J J J J
150 C C C G G G G J J J J J J J J J J J
180 C C C G G G G J J J J J J J J J J J
220 C C C G G G G J J J J J J J J J J M
270 C C C G G G G J J J J M J J J J J M
330 C C C G G G G J J J J M J J J J J M
390 C C C G G G J J J J M J J J J J M
470 C C C G G G J J J J M J J J J J M
560 G G G J J J J M J J J J J M
680 G G G J J J J J J J J J P
820 G G G J J J J J J J J M
1000 G G G J J J J J J J J Q
1200 JJJ J JJJQ
1500 JJJ J JJMQ
1800 JJJ J JMM
2200 JJN J JMP
2700 JJN J JMP
3300 JJ J JMP
3900 JJ J JMP
4700 JJ J JMP
5600 JJM
6800 MM
8200 MM
Cap 0.010 MM
(μF) 0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.068
0.082
0.1
WVDC 25 50 16 25 50 16 25 50 100 16 25 50 100 200 16 25 50 100 200 500
SIZE 0201 0402 0603 0805 1206
L
䉲
䉲
䉲
䉲
W
䉲
䉲
䉲
䉲
T
t
PREFERRED SIZES ARE SHADED
