18

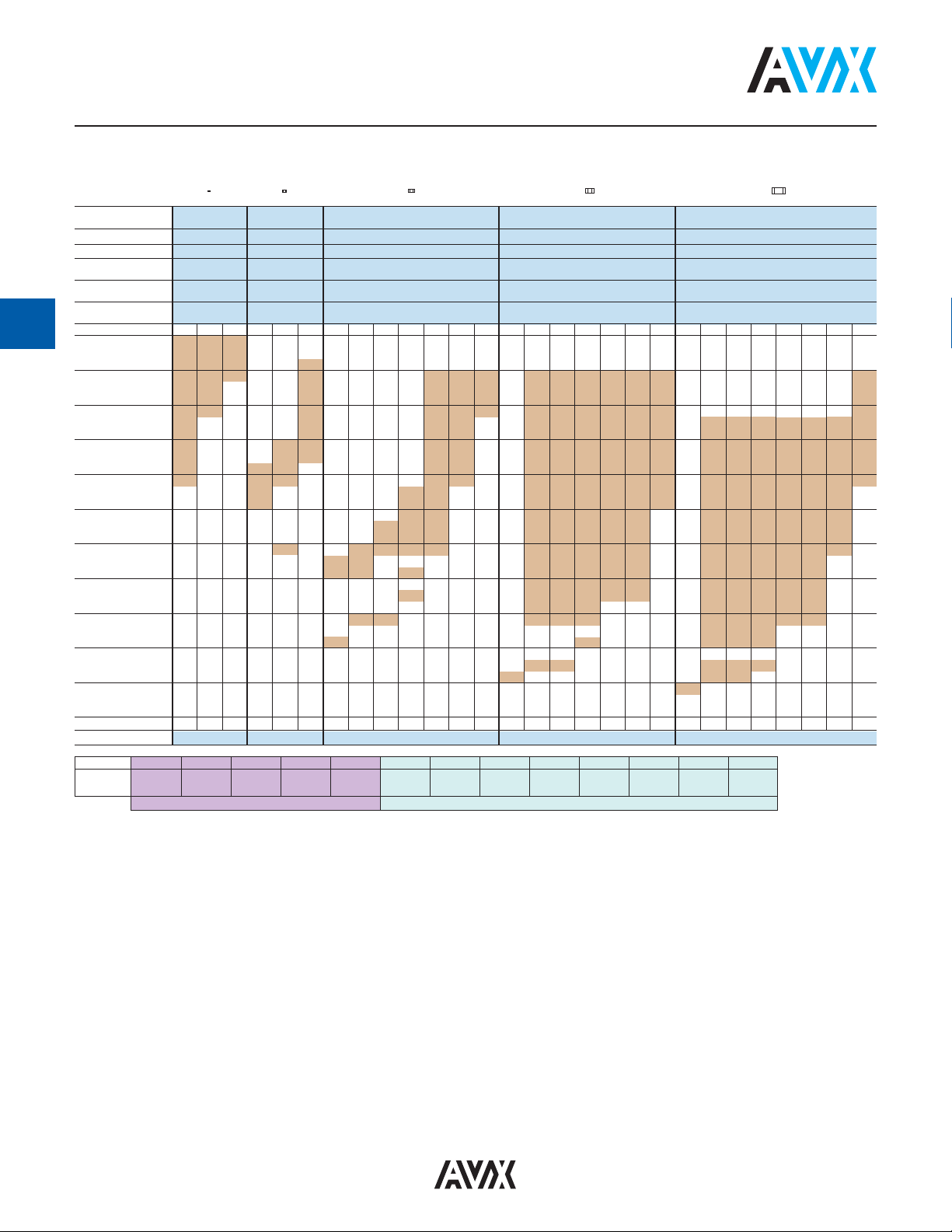

X7R Dielectric
Capacitance Range
PREFERRED SIZES ARE SHADED
SIZE 0201 0402 0603 0805 1206
Soldering Reflow Only Reflow/Wave Reflow/Wave Reflow/Wave Reflow/Wave
Packaging All Paper All Paper All Paper Paper/Embossed Paper/Embossed
(L) Length
mm 0.60 ± 0.03 1.00 ± 0.10 1.60 ± 0.15 2.01 ± 0.20 3.20 ± 0.20
(in.) (0.024 ± 0.001) (0.040 ± 0.004) (0.063 ± 0.006) (0.079 ± 0.008) (0.126 ± 0.008)
(W) Width
mm 0.30 ± 0.03 0.50 ± 0.10 0.81 ± 0.15 1.25 ± 0.20 1.60 ± 0.20
(in.) (0.011 ± 0.001) (0.020 ± 0.004) (0.032 ± 0.006) (0.049 ± 0.008) (0.063 ± 0.008)
(t) Terminal
mm 0.15 ± 0.05 0.25 ± 0.15 0.35 ± 0.15 0.50 ± 0.25 0.50 ± 0.25
(in.) (0.006 ± 0.002) (0.010 ± 0.006) (0.014 ± 0.006) (0.020 ± 0.010) (0.020 ± 0.010)
WVDC 10 16 25 16 25 50 6.3 10 16 25 50 100 200 6.3 10 16 25 50 100 200 6.3 10 16 25 50 100 200 500
Cap 100 A A A
(pF) 150 A A A
220 A A A C
330 AAA C GGG JJJJJJ K
470 AA C GGG JJJJJJ K
680 AA C GGG JJJJJJ K
1000 A A C G G G JJJJJJ K
1500 A C G G JJJJJJ JJJJJJM
2200 A C G G JJJJJJ JJJJJJM
3300 A C C G G JJJJJJ JJJJJJM
4700 A C C G G JJJJJJ JJJJJJM
6800 A C C G G JJJJJJ JJJJJJP
Cap 0.010 A C C G G JJJJJJ JJJJJJP
(µF 0.015 C G G JJJJJJ JJJJJM
0.022 C G G JJJJJN JJJJJM
0.033 G G JJJJN JJJJJM
0.047 G G G JJJJN JJJJJM
0.068 G G G JJJJN JJJJJP
0.10 C GGGG JJJJN* JJJJMP
0.15 G G J J J N N* JJJJQ
0.22 G G J* J J N N N* JJJJQ
0.33 NNNNN* J JMPQ
0.47 J* NNNNN* MMMPQ
0.68 NNN MMQQQ
1.0 J* J* N N N M M Q Q Q
1.5 PQQ
2.2 J* P* Q Q Q
3.3
4.7 P* P* Q* Q* Q*
10 P* Q* Q*
22 Q*
47
100
WVDC 10 16 25 16 25 50 6.3 10 16 25 50 100 200 6.3 10 16 25 50 100 200 6.3 10 16 25 50 100 200 500
SIZE 0201 0402 0603 0805 1206
Letter A C E G J K M N P Q X Y Z
Max. 0.33 0.56 0.71 0.90 0.94 1.02 1.27 1.40 1.52 1.78 2.29 2.54 2.79
Thickness (0.013) (0.022) (0.028) (0.035) (0.037) (0.040) (0.050) (0.055) (0.060) (0.070) (0.090) (0.100) (0.110)
PAPER EMBOSSED
*Optional Specifications – Contact factory
