10TQ...PbF 系列 45 V 10 A 法兰安装 肖特基整流器 - TO-220AC
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
10TQ045PBF数据手册
Page:
of 7 Go
若手册格式错乱，请下载阅览PDF原文件
Document Number: 94120 For technical questions, contact: diodes-tech@vishay.com
www.vishay.com

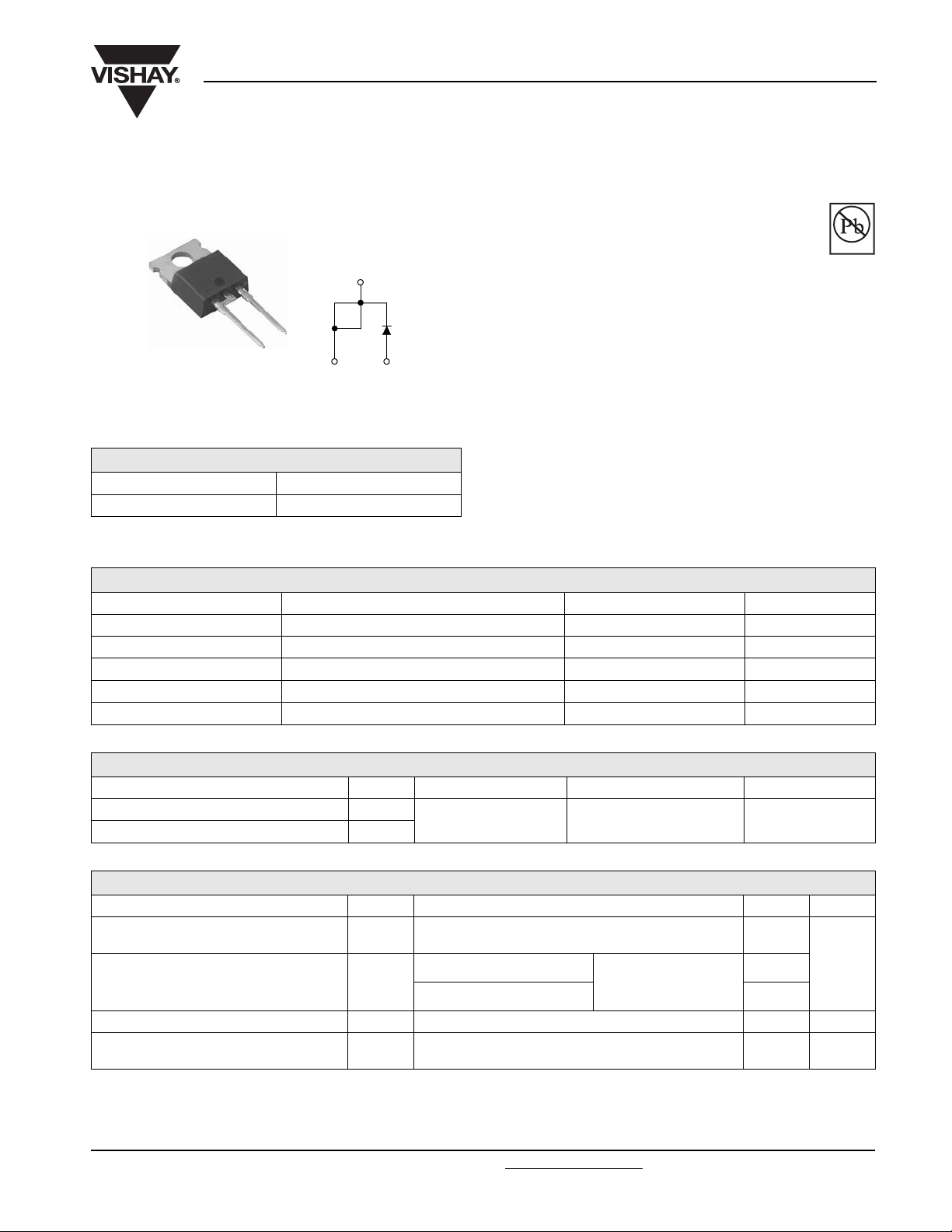

Revision: 05-Jun-08 1
Schottky Rectifier, 10 A
10TQ...PbF Series
Vishay High Power Products
FEATURES
• 175 °C T
J
operation
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for industrial level
DESCRIPTION
The 10TQ...PbF Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175 °C
junction temperature. Typical applications are in switching
power supplies, converters, freewheeling diodes, and
reverse battery protection.
PRODUCT SUMMARY
I
F(AV)
10 A
V
R
35/45 V
Anode
1
2
3
Cathode
TO-220AC
Base
cathode
Available
Pb-free
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 10 A
V
RRM
35/45 V
I
FSM
t
p
= 5 µs sine 1050 A
V
F
10 Apk, T
J
= 125 °C 0.49 V
T
J
Range - 55 to 175 °C
VOLTAGE RATINGS
PARAMETER SYMBOL 10TQ035PbF 10TQ045PbF UNITS
Maximum DC reverse voltage V
R
35 45 V
Maximum working peak reverse voltage V
RWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5
I
F(AV)
50 % duty cycle at T
C
= 151 °C, rectangular waveform 10
A
Maximum peak one cycle non-repetitive
surge current
See fig. 7
I
FSM
5 µs sine or 3 µs rect. pulse
Following any rated load
condition and with rated
V
RRM
applied
1050
10 ms sine or 6 ms rect. pulse 280
Non-repetitive avalanche energy E
AS
T
J
= 25 °C, I
AS
= 2 A, L = 6.5 mH 13 mJ
Repetitive avalanche current I
AR
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
2A
