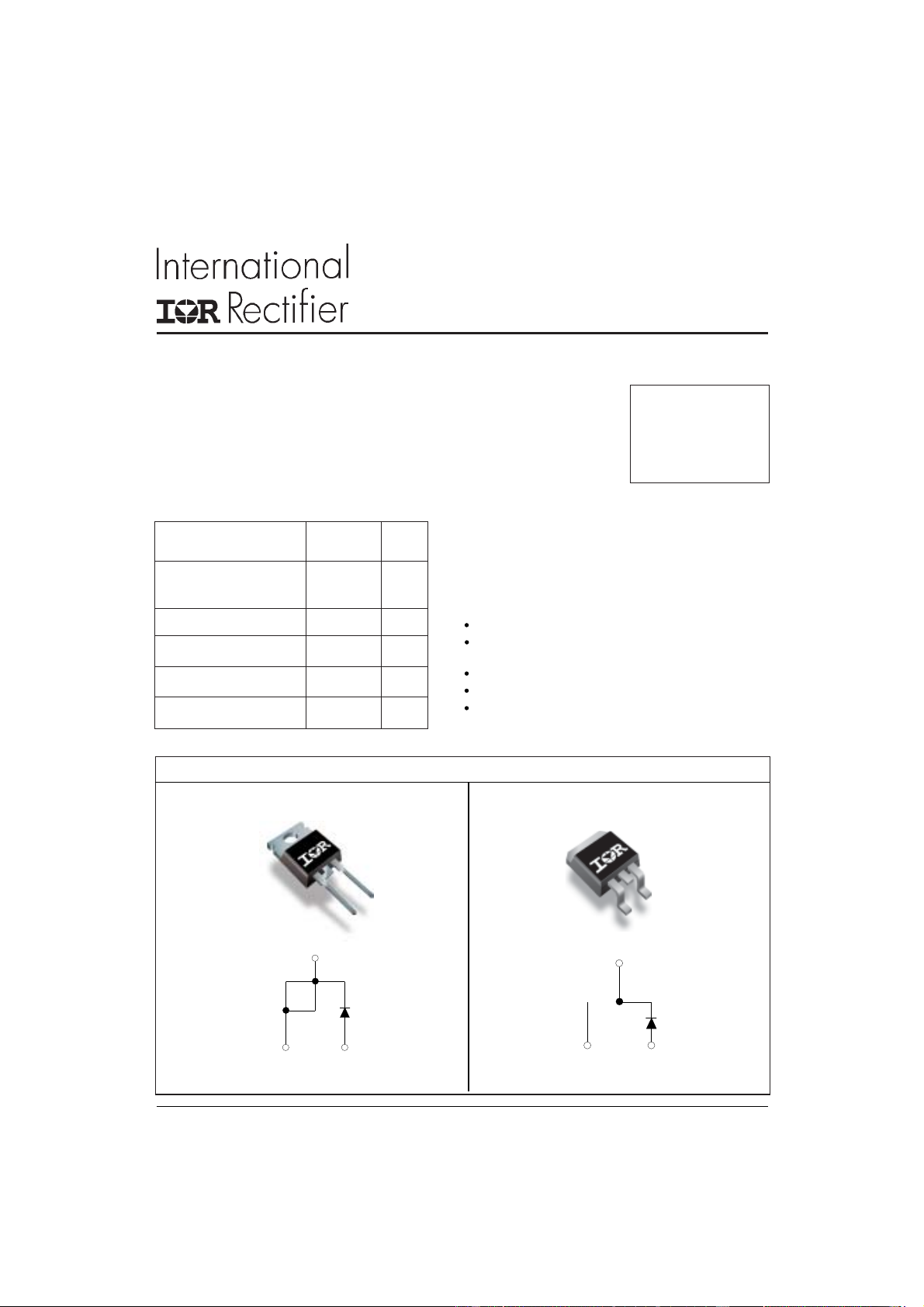

SCHOTTKY RECTIFIER 10 Amp
Bulletin PD-20057 rev. B 06/06
1www.irf.com
10TQ...
10TQ...S
Major Ratings and Characteristics
I
F(AV)
Rectangular 10 A
waveform
V
RRM
35 - 45 V
I
FSM
@ tp = 5 μs sine 1050 A
V
F
@
10 Apk, T
J
= 125°C 0.49 V
T
J
range - 55 to 175 °C
Characteristics Values Units
Description/ Features
The 10TQ.. Schottky rectifier series has been optimized for
low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175° C
junction temperature. Typical applications are in switching
power supplies, converters, free-wheeling diodes, and re-
verse battery protection.
175° C T
J
operation
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
I
F(AV)
= 10Amp
V
R
= 35 - 45V
Case Styles
10TQ...
TO-220
10TQ... S
D
2
PAK
Anode
1
3
Base
Cathode
Cathode
Anode
1
3
Base
Cathode
2
N/C
