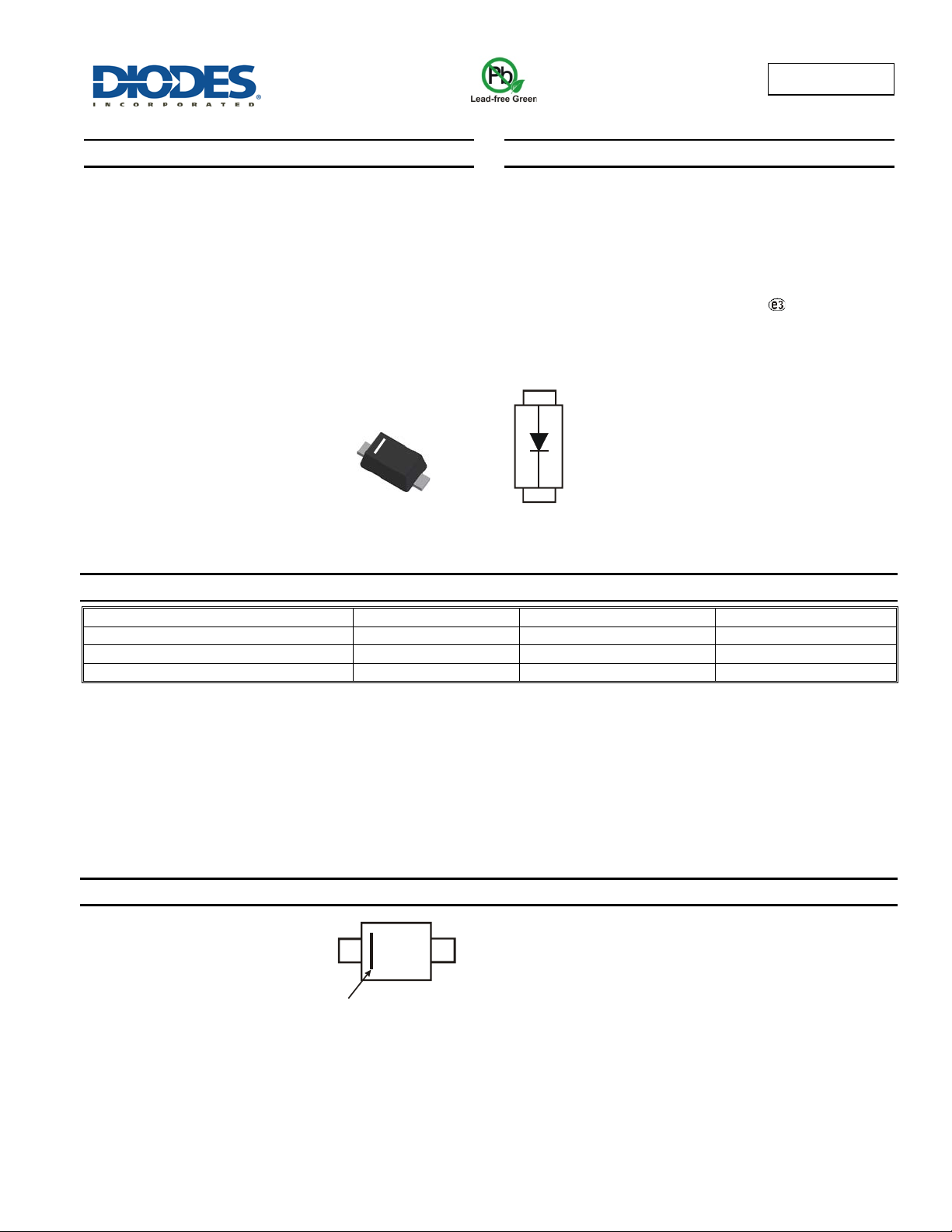

1N4148WT
Document number: DS30396 Rev. 16 - 2
1 of 5
www.diodes.com
November 2015
© Diodes Incorporated
1N4148WT
SURFACE MOUNT FAST SWITCHING DIODE
Features
• Fast Switching Speed
• Very Small Surface Mount Package
• For General Purpose Switching Applications
• High Conductance
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP Capable (Note 4)
Mechanical Data
• Case: SOD523
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: Cathode Band
• Terminals: Finish - Matte Tin Annealed over Alloy 42 L
eadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.0014 grams (Approximate)
Ordering Information (Notes 4 & 5)
Part Number
Compliance
Case
Packaging
1N4148WT-7 (Note 6)
Standard
SOD523
3,000/Tape & Reel
1N4148WTQ-7 (Note 6)
Automotive
SOD523
3,000/Tape & Reel
1N4148WT-13 Standard SOD523 10,000/Tape & Reel
Notes: 1. No purposefully added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. For more information, please refer to
http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
6. Dispensed in every other cavity of the tape.
Marking Information
T4 = Product Type Marking Code
T4
Cathode Band
Top View
1
2
Device Schematic
SOD523
