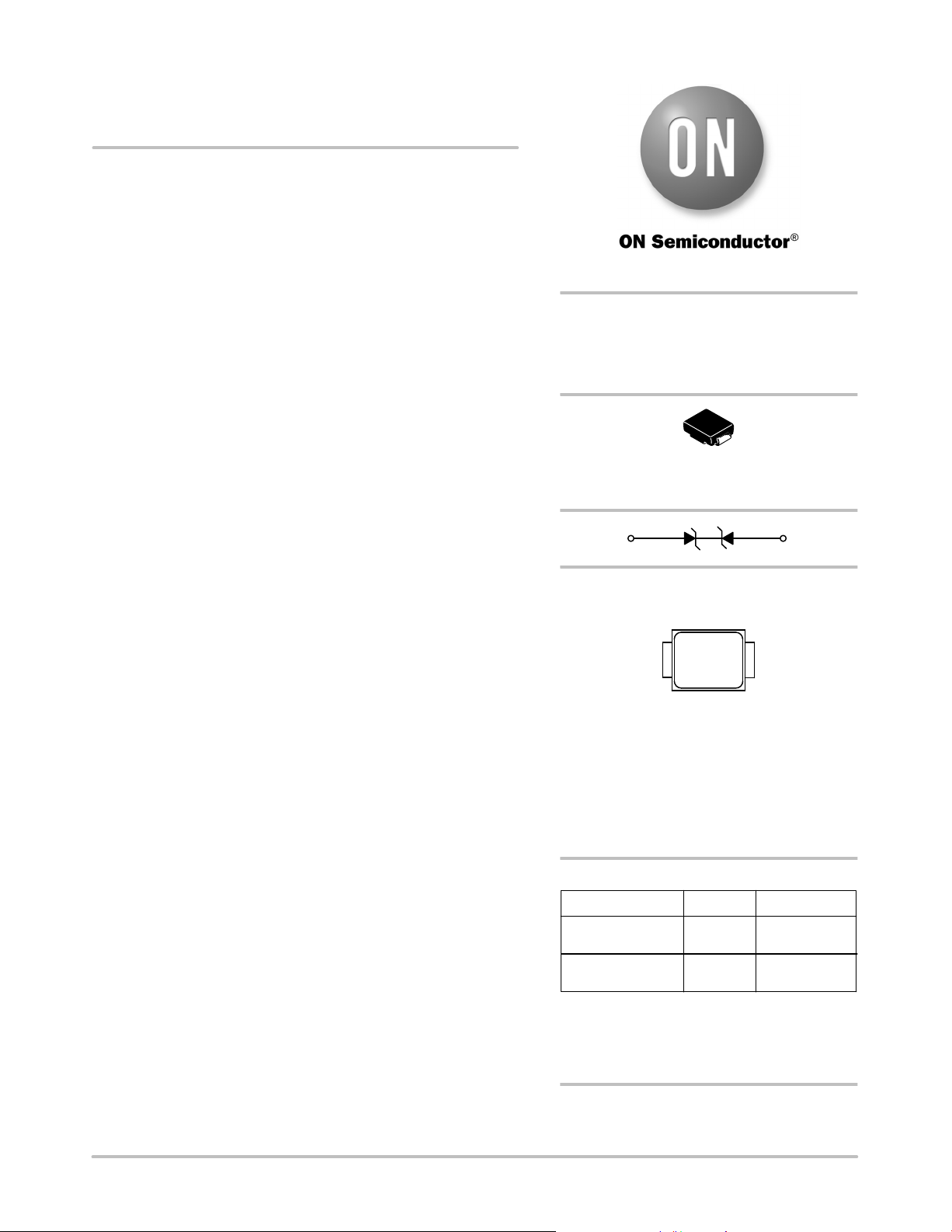

Semiconductor Components Industries, LLC, 2012
February, 2012 − Rev. 13
1 Publication Order Number:
1SMB10CAT3/D
1SMB10CAT3G Series,
SZ1SMB10CAT3G Series
600 Watt Peak Power Zener
Transient Voltage
Suppressors
Bidirectional
The SMB series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMB series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
SURMETIC
package and is ideally suited for use in
communication systems, automotive, numerical controls, process
controls, medical equipment, business machines, power supplies and
many other industrial/consumer applications.
Features
Working Peak Reverse Voltage Range − 10 V to 75 V
Standard Zener Breakdown Voltage Range − 11.7 V to 91.7 V
Peak Power − 600 Watts @ 1 ms
ESD Rating of Class 3 (> 16 kV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5 mA Above 10 V
UL 497B for Isolated Loop Circuit Protection
Response Time is Typically < 1 ns
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
Pb−Free Packages are Available*
Mechanical Characteristics
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260C for 10 Seconds
LEADS: Modified L−Bend providing more contact area to bond pads
POLARITY: Polarity band will not be indicated
MOUNTING POSITION: Any
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
10−78 V, 600 W PEAK POWER
Device
**
Package Shipping
†
ORDERING INFORMATION
SMB
CASE 403C
PLASTIC
A = Assembly Location
Y = Year
WW = Work Week
xxC = Specific Device Code
= (See Table on Page 3)
G = Pb−Free Package
MARKING DIAGRAM
**The “T3” suffix refers to a 13 inch reel.
1SMBxxCAT3G SMB
(Pb−Free)
2,500 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Individual devices are listed on page 3 of this data sheet.
http://onsemi.com
ALYW
xxCG
G
(Note: Microdot may be in either location)
SZ1SMBxxCAT3G SMB
(Pb−Free)
2,500 /
Tape & Reel
