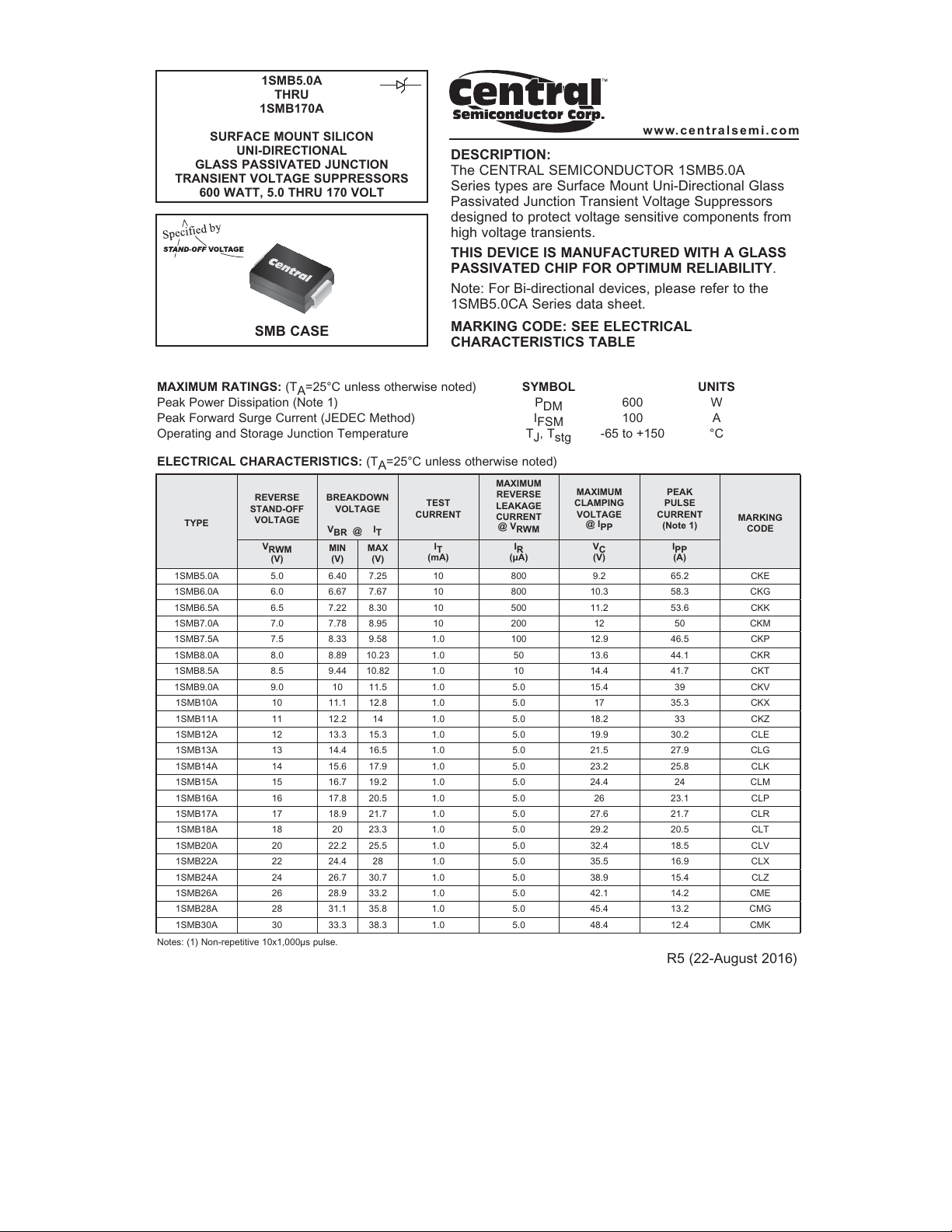

MAXIMUM RATINGS: (T
A
=25°C unless otherwise noted) SYMBOL UNITS
Peak Power Dissipation (Note 1) P
DM
600 W
Peak Forward Surge Current (JEDEC Method) I
FSM
100 A
Operating and Storage Junction Temperature T
J
, T
stg
-65 to +150 °C
ELECTRICAL CHARACTERISTICS: (T
A
=25°C unless otherwise noted)
1SMB5.0A
THRU
1SMB170A
SURFACE MOUNT SILICON
UNI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSORS
600 WATT, 5.0 THRU 170 VOLT
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 1SMB5.0A
Series types are Surface Mount Uni-Directional Glass
Passivated Junction Transient Voltage Suppressors
designed to protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
Note: For Bi-directional devices, please refer to the
1SMB5.0CA Series data sheet.
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
SMB CASE
Notes: (1) Non-repetitive 10x1,000µs pulse.
TYPE
REVERSE
STAND-OFF
VOLTAGE
BREAKDOWN
VOLTAGE
V
BR
@
I
T
TEST
CURRENT
MAXIMUM
REVERSE
LEAKAGE
CURRENT
@ V
RWM
MAXIMUM
CLAMPING
VOLTAGE
@ I
PP
PEAK
PULSE
CURRENT
(Note 1)
MARKING
CODE
V
RWM
(V)
MIN
(V)
MAX
(V)
I
T
(mA)
I
R
(µA)
V
C
(V)
I
PP
(A)
1SMB5.0A 5.0 6.40 7.25 10 800 9.2 65.2 CKE
1SMB6.0A 6.0 6.67 7.67 10 800 10.3 58.3 CKG
1SMB6.5A 6.5 7.22 8.30 10 500 11.2 53.6 CKK
1SMB7.0A 7.0 7.78 8.95 10 200 12 50 CKM
1SMB7.5A 7.5 8.33 9.58 1.0 100 12.9 46.5 CKP
1SMB8.0A 8.0 8.89 10.23 1.0 50 13.6 44.1 CKR
1SMB8.5A 8.5 9.44 10.82 1.0 10 14.4 41.7 CKT
1SMB9.0A 9.0 10 11.5 1.0 5.0 15.4 39 CKV
1SMB10A 10 11.1 12.8 1.0 5.0 17 35.3 CKX
1SMB11A 11 12.2 14 1.0 5.0 18.2 33 CKZ
1SMB12A 12 13.3 15.3 1.0 5.0 19.9 30.2 CLE
1SMB13A 13 14.4 16.5 1.0 5.0 21.5 27.9 CLG
1SMB14A 14 15.6 17.9 1.0 5.0 23.2 25.8 CLK
1SMB15A 15 16.7 19.2 1.0 5.0 24.4 24 CLM
1SMB16A 16 17.8 20.5 1.0 5.0 26 23.1 CLP
1SMB17A 17 18.9 21.7 1.0 5.0 27.6 21.7 CLR
1SMB18A 18 20 23.3 1.0 5.0 29.2 20.5 CLT
1SMB20A 20 22.2 25.5 1.0 5.0 32.4 18.5 CLV
1SMB22A 22 24.4 28 1.0 5.0 35.5 16.9 CLX
1SMB24A 24 26.7 30.7 1.0 5.0 38.9 15.4 CLZ
1SMB26A 26 28.9 33.2 1.0 5.0 42.1 14.2 CME
1SMB28A 28 31.1 35.8 1.0 5.0 45.4 13.2 CMG
1SMB30A 30 33.3 38.3 1.0 5.0 48.4 12.4 CMK
R5 (22-August 2016)
www.centralsemi.com
