1SMB5913BT3 Series
http://onsemi.com
6

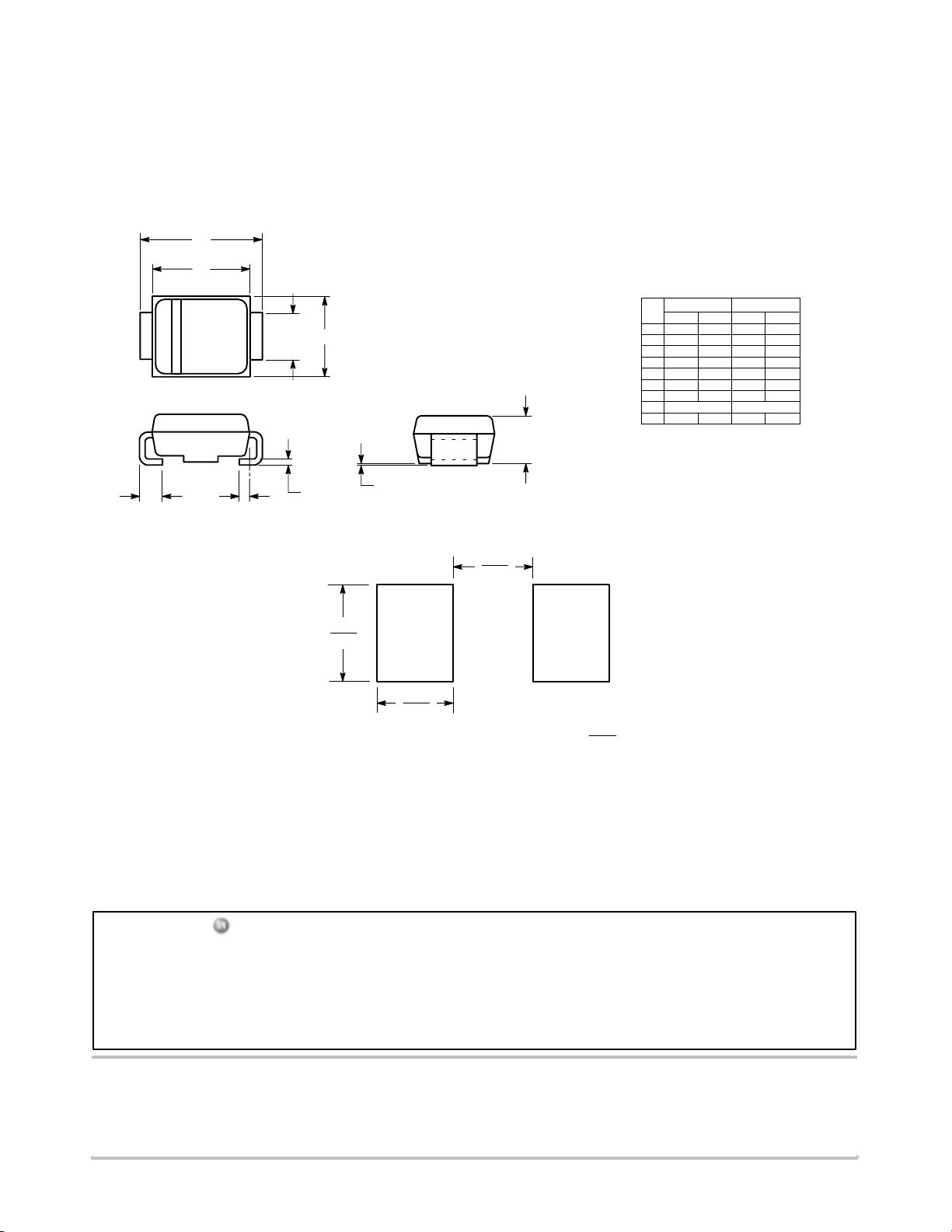

OUTLINE DIMENSIONS
SMB
DO−214AA
CASE 403A−03
ISSUE D
A
S
D
B
J
P
K
C
H
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. D DIMENSION SHALL BE MEASURED WITHIN
DIMENSION P.
DIM MIN MAX MIN MAX
MILLIMETERSINCHES
A 0.160 0.180 4.06 4.57
B 0.130 0.150 3.30 3.81
C 0.075 0.095 1.90 2.41
D 0.077 0.083 1.96 2.11
H 0.0020 0.0060 0.051 0.152
J 0.006 0.012 0.15 0.30
K 0.030 0.050 0.76 1.27
P 0.020 REF 0.51 REF
S 0.205 0.220 5.21 5.59
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
SOLDERING FOOTPRINT*
mm
inches
SCALE 8:1
2.743
0.108
2.159
0.085
2.261
0.089
