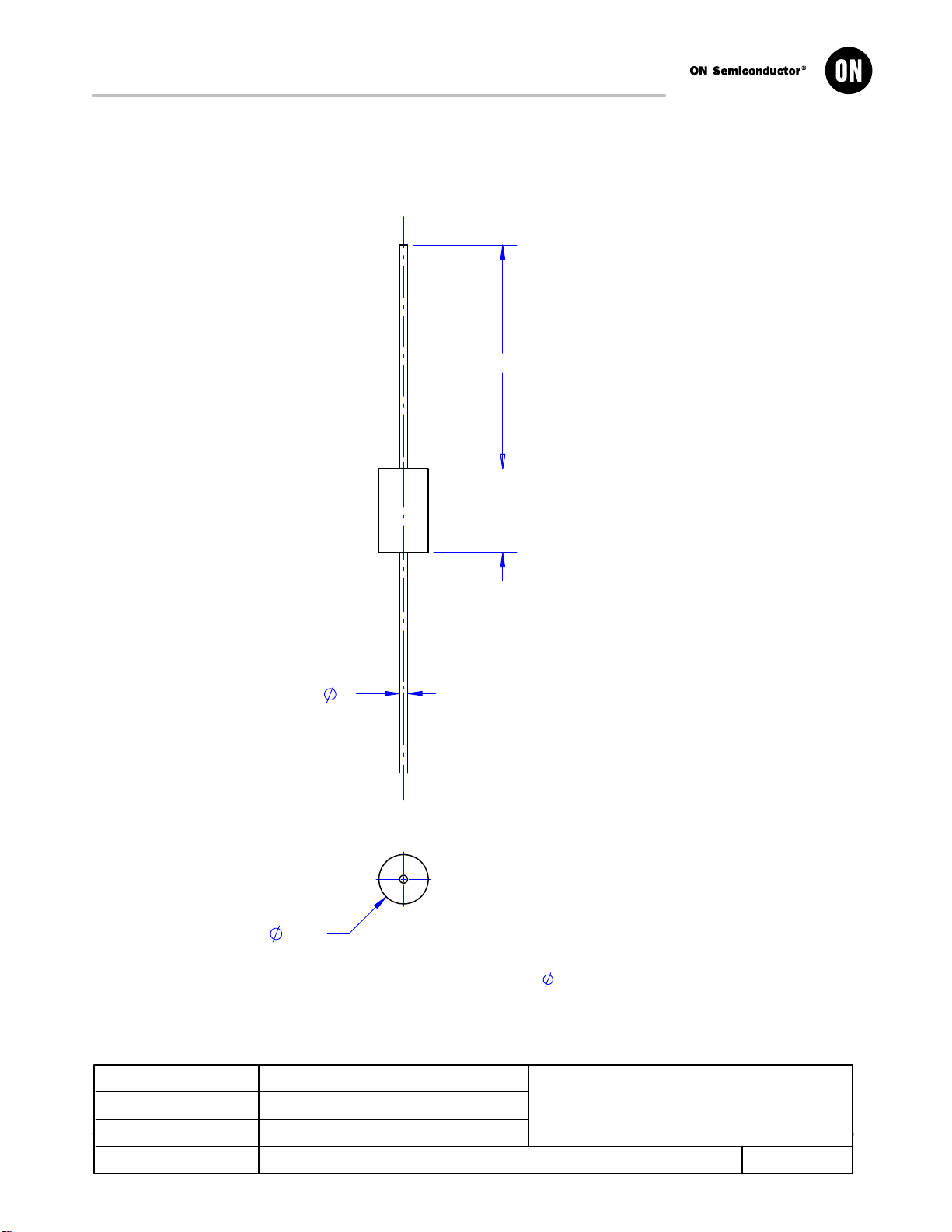

AXIAL LEAD
CASE 017AF
ISSUE O
DATE 31 AUG 201
6
25.40 MIN (2X)
9.50
7.20
b
5.60
4.80
NOTES: UNLESS OTHERWISE SPECIFIED
A) PACKAGE STANDARD REFERENCE:
JEDEC DO−201 VARIATION AD.
B) PLASTIC PACKAGE BODY.
C) ALL DIMENSIONS ARE IN MILLIMETERS.
D) b DIMENSION REPRESENT LIKE BELOW:
OPTION AD = 1.20MIN TO 1.30MAX
OPTION AE = 0.94MIN TO 1.07MAX
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
http://onsemi.com
1
© Semiconductor Components Industries, LLC, 2002
October, 2002 − Rev. 0
Case Outline Number:
XXX
DOCUMENT NUMBER:
STATUS:
NEW STANDARD:
DESCRIPTION:
98AON13438G
ON SEMICONDUCTOR STANDARD
AXIAL LEAD
Electronic versions are uncontrolled except when
accessed directly from the Document Repository. Printed
versions are uncontrolled except when stamped
“CONTROLLED COPY” in red.
PAGE 1 OF 2
