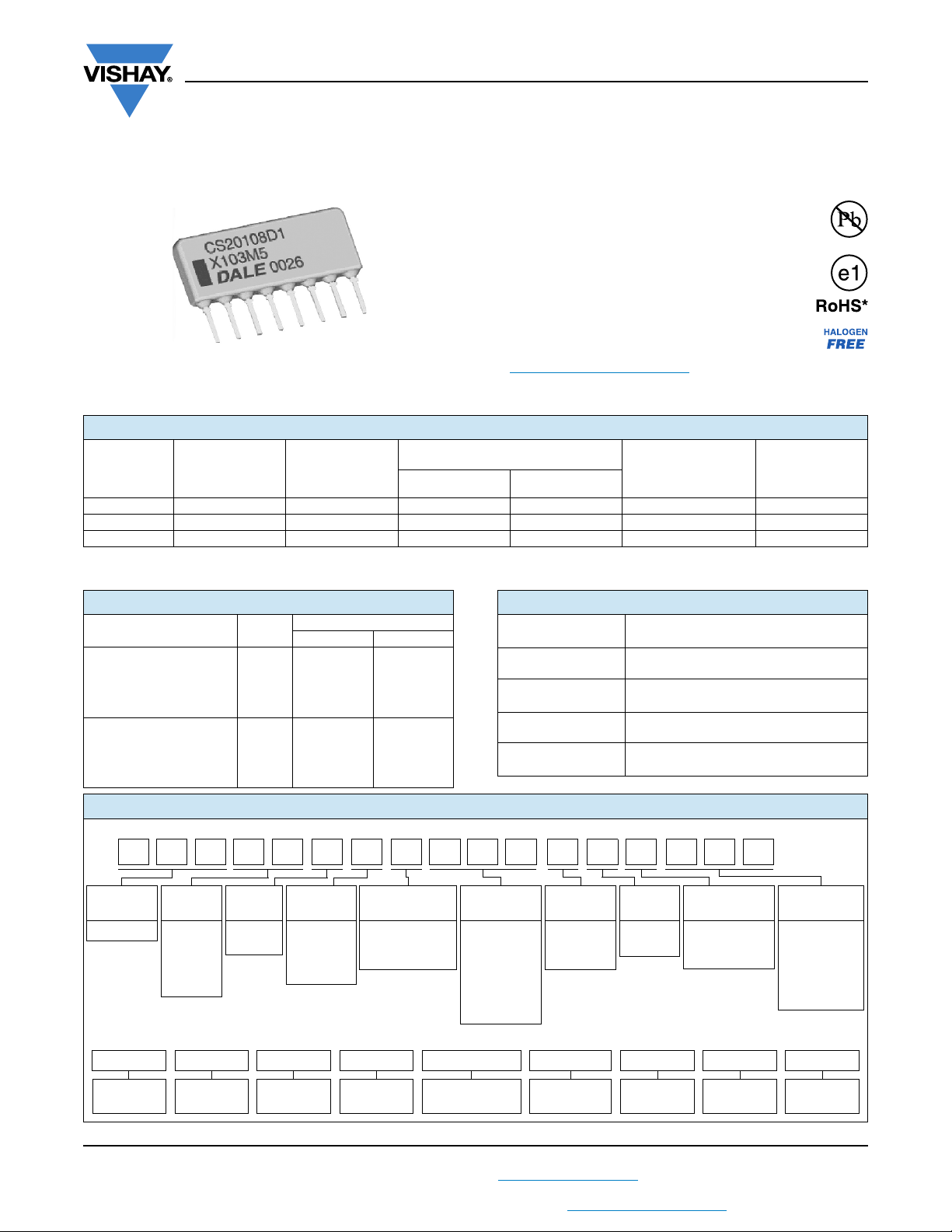

Thick Film Capacitor Networks, Single-In-Line,
Conformal Coated SIP
FEATURES
Isolated and bussed schematics available
X7R and C0G capacitors available
Multiple isolated capacitors
Multiple capacitors, common ground
Custom design capability
“D” 0.300" (7.62 mm) package height
(maximum)
Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details.
Note
(1)
C0G capacitors may be substituted for X7R capacitors
Available
Available
STANDARD ELECTRICAL SPECIFICATIONS
VISHAY
DALE
MODEL
PROFILE SCHEMATIC
CAPACITANCE
RANGE
CAPACITANCE
TOLERANCE
(- 55 °C to + 125 °C)
± %
CAPACITANCE
VOLTAGE
at 85 °C
V
DC
C0G
(1)
X7R
CS201 D 1 33 pF to 3900 pF 470 pF to 0.1 μF 10, 20 50
CS201 D 3 33 pF to 3900 pF 470 pF to 0.1 μF 10, 20 50
CS201 D 4 33 pF to 3900 pF 470 pF to 0.1 μF 10, 20 50
TECHNICAL SPECIFICATIONS
PARAMETER UNIT
CS201
C0G X7R
Temperature Coefficient
(- 55 °C to + 125 °C)
ppm/°C
or
%
± 30 ppm/°C ± 15 %
Dissipation Factor
(Maximum)
± % 0.15 2.5
MECHANICAL SPECIFICATIONS
Marking Resistance
to Solvents
Permanency testing per MIL-STD-202,
method 215
Solderability Per MIL-STD-202, method 208E
Body
High alumina, epoxy coated
(flammability UL 94 V-0)
Terminals Phosphorus-bronze, solder plated
Marking
Pin #1 identifier, DALE or D, part number
(abbreviated as space allows), date code
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: 20108D1C103K5P (preferred part numbering format)
GLOBAL
MODEL
PIN
COUNT
PACKAGE
HEIGHT
SCHEMATIC
CHARACTERISTIC
CAPACITANCE
VALUE
TOLERANCE
VOLTAGE PACKAGING SPECIAL
201
= CS201
04 to 18 pin
available
04
= 4 pin
08
= 8 pin
18
= 18 pin
D
= “D”
Profile
1
3
4
0
= Special
C = C0G
X = X7R
S = Special
(in picofarads) 2
digit significant
figure, followed
by a multiplier
330
= 33 pF
392
= 3900 pF
104
= 0.1 μF
K = ± 10 %
M = ± 20 %
S = Special
5
= 50 V
S
= Special
E
= Lead (Pb)-free,
bulk
P
= Tin/lead, bulk
Blank =
Standard
(Dash Number)
(Up to 3 digits)
From
1 to 999
as applicable
Historical Part Number example: CS20108D1C103K5 (will continue to be accepted)
CS201 08 D 1 C 103 K 5 P03
HISTORICAL
MODEL
PIN COUNT
PACKAGE
HEIGHT
SCHEMATIC
CHARACTERISTIC
CAPACITANCE
VALUE
TOLERANCE
VOLTAGE
PACKAGING
2 0 1 0 8 D 1 C 1 0 3 K 5 P
