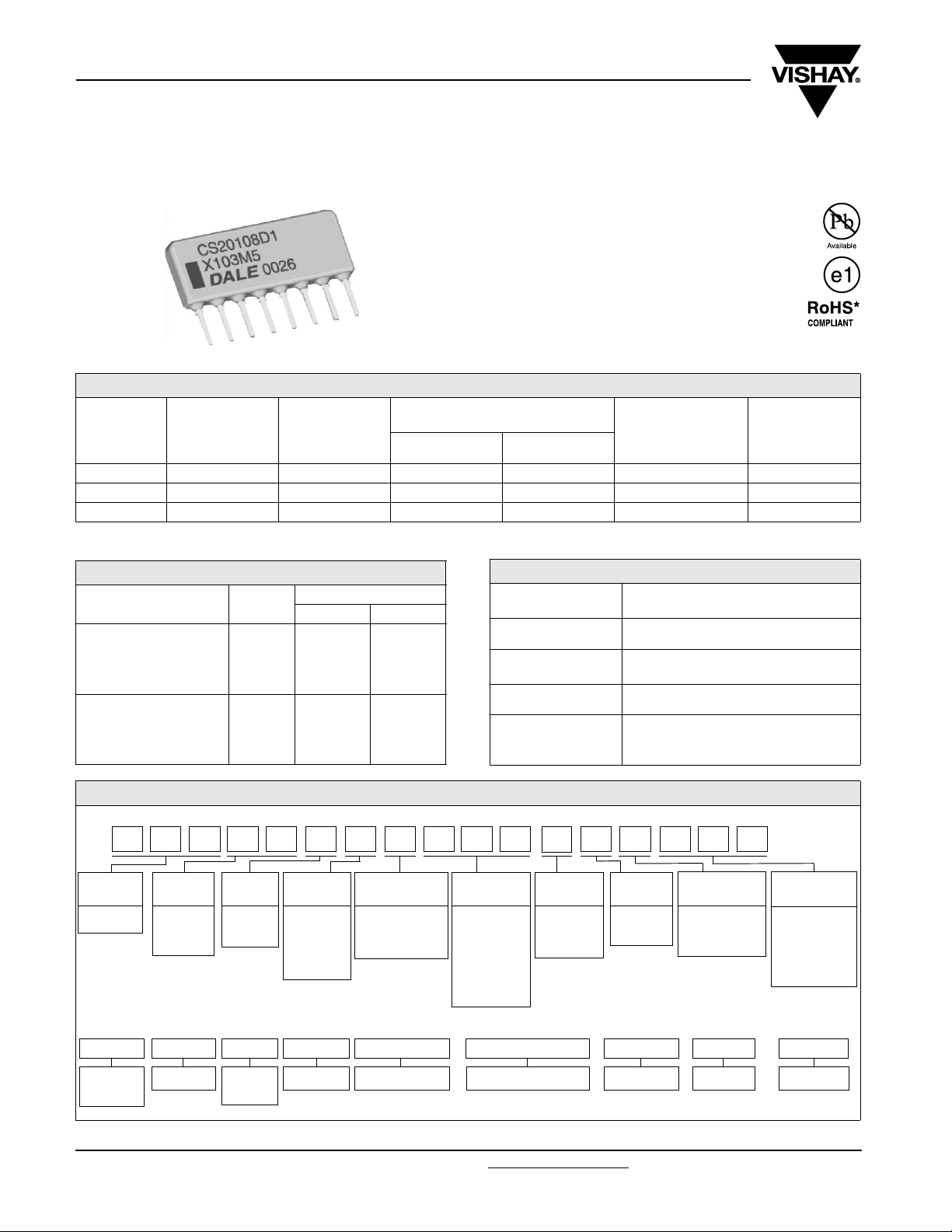

www.vishay.com For technical questions, contact: ff2aresistors@vishay.com
Document Number: 31522
1 Revision: 13-Nov-08
CS201
Vishay Dale
Capacitor Networks, Single-In-Line,
Conformal Coated SIP, "D" Profile
FEATURES
• X7R and COG capacitors available
• Multiple isolated capacitors
• Multiple capacitors, common ground
• Custom design capability
• “D” 0.300" [7.62 mm] package height
(maximum)
• Lead (Pb)-free version is RoHS compliant
Note
(1)
COG capacitors may be substituted for X7R capacitors
* Pb containing terminations are not RoHS compliant, exemptions may apply
STANDARD ELECTRICAL SPECIFICATIONS
VISHAY
DALE
MODEL
PROFILE SCHEMATIC CAPACITANCE
RANGE
CAPACITANCE
TOLERANCE
(- 55 °C to + 125 °C)
%
CAPACITOR
VOLTAGE
at 85 °C
VDC
COG
(1)
X7R
CS201 D 1 33 pF - 3900 pF 470 pF - 0.1 µF ± 10 (K), ± 20 (M) 50 (5)
CS201 D 3 33 pF - 3900 pF 470 pF - 0.1 µF ± 10 (K), ± 20 (M) 50 (5)
CS201 D 4 33 pF - 3900 pF 470 pF - 0.1 µF ± 10 (K), ± 20 (M) 50 (5)
TECHNICAL SPECIFICATIONS
PARAMETER UNIT
CS201
COG X7R
Temperature Coefficient
(- 55 °C to +125 °C)
ppm/°C
or
%
± 30
ppm/°C
± 15 %
Dissipation Factor
(Maximum)
± % 0.15 2.5
MECHANICAL SPECIFICATIONS
Marking Resistance
to Solvents
Permanency testing per MIL-STD-
202, Method 215
Solderability Per MIL-STD-202, Method 208E
Body
High alumina, epoxy coated
(Flammability UL94 V-0)
Terminals Phosphorus-bronze, solder plated
Marking
Pin #1 identifier, DALE or D, Part
number (abbreviated as space
allows), Date code
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: 20108D1C103K5P (preferred part numbering format)
20108D1C103K5P___P
GLOBAL
MODEL
PIN
COUNT
PAC K AGE
HEIGHT
SCHEMATIC CHARACTERISTIC
CAPACITANCE
VALUE
TOLERANCE VOLTAGE PACKAGING SPECIAL
201
= CS201
04
= 4 Pin
08
= 8 Pin
18
= 18 Pin
D
= “D”
Profile
1
3
4
0
= Special
C
= COG
X
= X7R
S
= Special
(in picofarads) 2
digit significant
figure, followed
by a multiplier
330
= 33 pF
392
= 3900 pF
104
= 0.1 µF
K
= ± 10 %
M
= ± 20 %
S
= Special
5
= 50V
S
= Special
E
= Lead (Pb)-free
,
Bulk
P
= Tin/Lead, Bulk
Blank = Standard
(Dash Number)
(up to 3 digits)
From
1-999
as
applicable
Historical Part Number example: CS20108D1C103K5 (will continue to be accepted)
CS201
08 D
1C
103
K5 P03
HISTORICAL
MODEL
PIN COUNT PACKAGE
HEIGHT
SCHEMATIC CHARACTERISTIC CAPACITANCE VALUE TOLERANCE VOLTAGE PACKAGING
