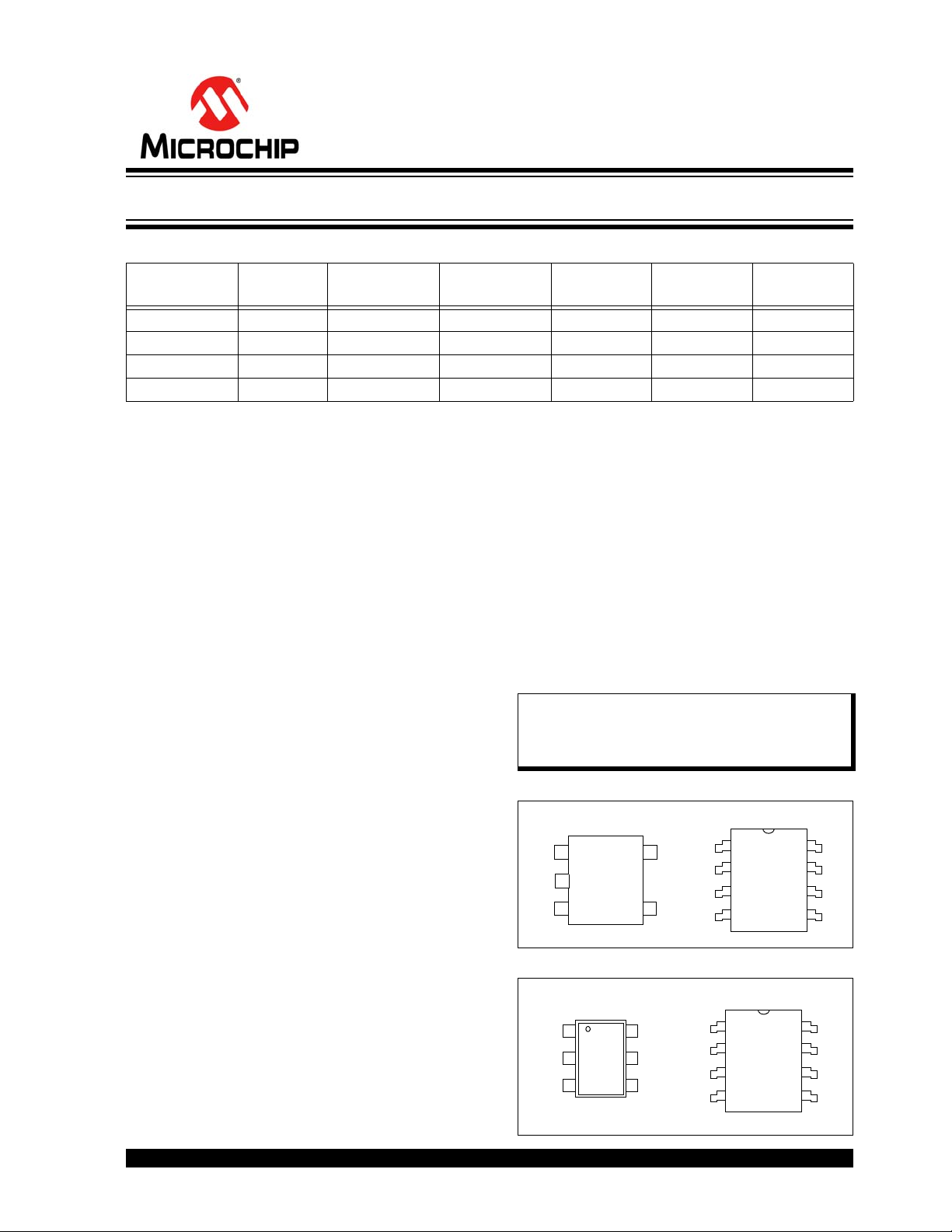

2008-2018 Microchip Technology Inc. DS20002124H-page 1
24AA02E48/24AA025E48/
24AA02E64/24AA025E64
Device Selection Table
Features
• Pre-Programmed Globally Unique, 48-bit or 64-bit
Node Address
• Compatible with EUI-48™ and EUI-64™
• Single Supply with Operation Down to 1.7V
• Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current: 1 µA, maximum (I-Temp.)
5 µA, maximum (E-Temp.)
• 2-Wire Serial Interface, I
2
C Compatible
• Schmitt Trigger Inputs for Noise Suppression
• Output Slope Control to Eliminate Ground Bounce
• 100 kHz and 400 kHz Clock Compatibility
• Page Write Time 3 ms, typical
• Self-Timed Erase/Write Cycle
• Page Write Buffer:
- 8-byte page (24AA02E48/24AA02E64)
- 16-byte page (24AA025E48/24AA025E64)
• ESD Protection >4,000V
• More than 1 Million Erase/Write Cycles
• Data Retention >200 Years
• Factory Programming Available
• Available Packages:
- 8-lead SOIC and 5-lead SOT-23
(24AA02E48/24AA02E64)
- 8-lead SOIC and 6-lead SOT-23
(24AA025E48/24AA025E64)
• RoHS Compliant
• Available for Extended Temperature Ranges:
- Industrial (I): -40°C to +85°C
- Automotive (E): -40°C to +125°C
Description
The Microchip Technology Inc.
24AA02E48/24AA025E48/24AA02E64/24AA025E64
(24AA02XEXX) is a 2 Kbit Electrically Erasable
PROM. The device is organized as two blocks of
128 x 8-bit memory with a 2-wire serial interface.
Low-voltage design permits operation down to 1.7V,
with maximum standby currents of only 1 µA for
I-Temp. and 5 µA for E-Temp., as well as a maximum
active current of 1 mA. The 24AA02XEXX also has a
page write capability for up to eight bytes of data
(16 bytes on the 24AA025E48/24AA025E64). The
24AA02XEXX is available in the standard 8-pin
SOIC, 5-lead SOT-23, and 6-lead SOT-23 packages.
Packages (24AA02E48/24AA02E64)
Packages (24AA025E48/24AA025E64)
Part Number
V
CC
Range
Max. Clock
Frequency
Temp. Ranges Cascadable Page Size
Node
Address
24AA02E48 1.7V-5.5V 400 kHz
(1)
I No 8-Byte EUI-48™
24AA025E48 1.7V-5.5V 400 kHz
(1)
I Yes 16-Byte EUI-48™
24AA02E64 1.7V-5.5V 400 kHz
(1)
I No 8-Byte EUI-64™
24AA025E64 1.7V-5.5V 400 kHz
(1)
I Yes 16-Byte EUI-64™
Note 1: 100 kHz for VCC <2.5V
Note: 24AA02XEXX is used in this document as
a generic part number for the
24AA02E48/24AA025E48/24AA02E64/2
4AA025E64 devices.
SOIC
NC
NC
NC
V
SS
1
2
3
4
8
7
6
5
V
CC
NC
SCL
SDA
SOT-23
15
4
3
SCL
Vss
SDA
NC
Vcc
2
SOIC
A0
A1
A2
V
SS
1
2
3
4
8
7
6
5
V
CC
NC
SCL
SDA
SOT-23
V
CC
SCL
SDA
V
SS
A0
A1
1
2
3
4
5
6
2K I
2
C Serial EEPROMs with EUI-48™ or EUI-64™ Node Identity
