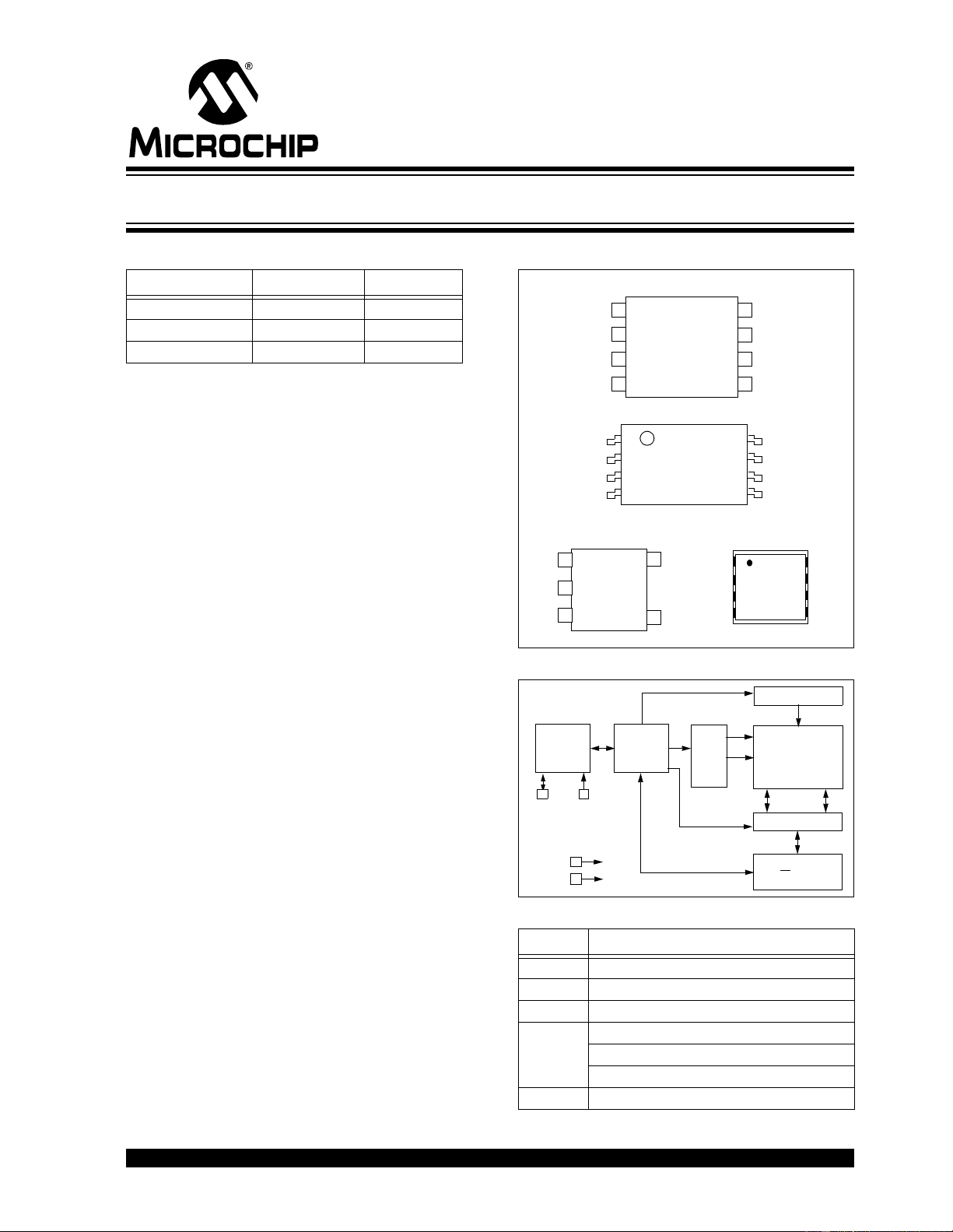

© 2007 Microchip Technology Inc. DS21178G-page 1
24AA00/24LC00/24C00
Device Selection Table
Features:
• Single supply with operation down to 1.7V for
24AA00 devices, 2.5V for 24LC00 devices
• Low-power CMOS technology:
- Read current 500 μA, typical
- Standby current 100 nA, typical
• 2-wire serial interface, I
2
C™ compatible
• Schmitt Trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz and 400 kHz clock compatibility
• Page write time 3 ms, typical
• Self-timed erase/write cycle
• ESD protection >4000V
• More than 1 million erase/write cycles
• Data retention >200 years
• Factory programming available
• Packages include 8-lead PDIP, SOIC, TSSOP,
DFN and 5-lead SOT-23
• Pb-free and RoHS compliant
• Temperature ranges available:
- Industrial (I): -40°C to +85°C
- Automotive (E): -40°C to +125°C
Description:
The Microchip Technology Inc. 24AA00/24LC00/
24C00 (24XX00*) is a 128-bit Electrically Erasable
PROM memory organized as 16 x 8 with a 2-wire
serial interface. Low-voltage design permits operation
down to 1.7 volts for the 24AA00 version, and every
version maintains a maximum standby current of only
1 μA and typical active current of only 500 μA. This
device was designed for where a small amount of
EEPROM is needed for the storage of calibration
values, ID numbers or manufacturing information, etc.
The 24XX00 is available in 8-pin PDIP, 8-pin SOIC
(3.90 mm), 8-pin TSSOP, 8-pin 2x3 DFN and the 5-pin
SOT-23 packages.
Package Types
Block Diagram
Pin Function Table
Device VCC Range Temp Range
24AA00 1.7-5.5 I
24LC00 2.5-5.5 I
24C00 4.5-5.5 I,E
Name Function
V
SS Ground
SDA Serial Data
SCL Serial Clock
V
CC +1.7V to 5.5V (24AA00)
+2.5V to 5.5V (24LC00)
+4.5V to 5.5V (24C00)
NC No Internal Connection
1
2
3
4
8
7
6
5
15
4
3
8-PIN PDIP/SOIC
8-PIN TSSOP
5-PIN SOT-23
NC
NC
NC
Vss
V
CC
NC
SCL
SDA
NC
NC
NC
V
SS
VCC
NC
SCL
SDA
SCL
V
SS
SDA
VCC
NC
1
2
3
4
8
7
6
5
2
DFN
NC
NC
NC
V
SS
NC
SCL
SDA
V
CC
8
7
6
5
1
2
3
4
HV Generator
EEPROM
Array
YDEC
XDEC
Sense AMP
R/W
Control
Memory
Control
Logic
I/O
Control
Logic
SDA
SCL
VCC
VSS
128-Bit I
2
C
™
Bus Serial EEPROM
*24XX00 is used in this document as a generic part number for
the 24AA00/24LC00/24C00 devices.
I
2
C is a trademark of Philips Corporation.
