TE CONNECTIVITY 36502CR68JTDG 表面贴装高频电感器, 36502C系列, 680 nH, ± 5%, 1008 [2520 公制], 375 MHz, 1.47 ohm
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装信息在P8
应用领域在P1
导航目录
36502CR68JTDG数据手册
Page:
of 10 Go
若手册格式错乱，请下载阅览PDF原文件
www.element14.com
www.farnell.com
www.newark.com
Page <1>
V1.113/11/14

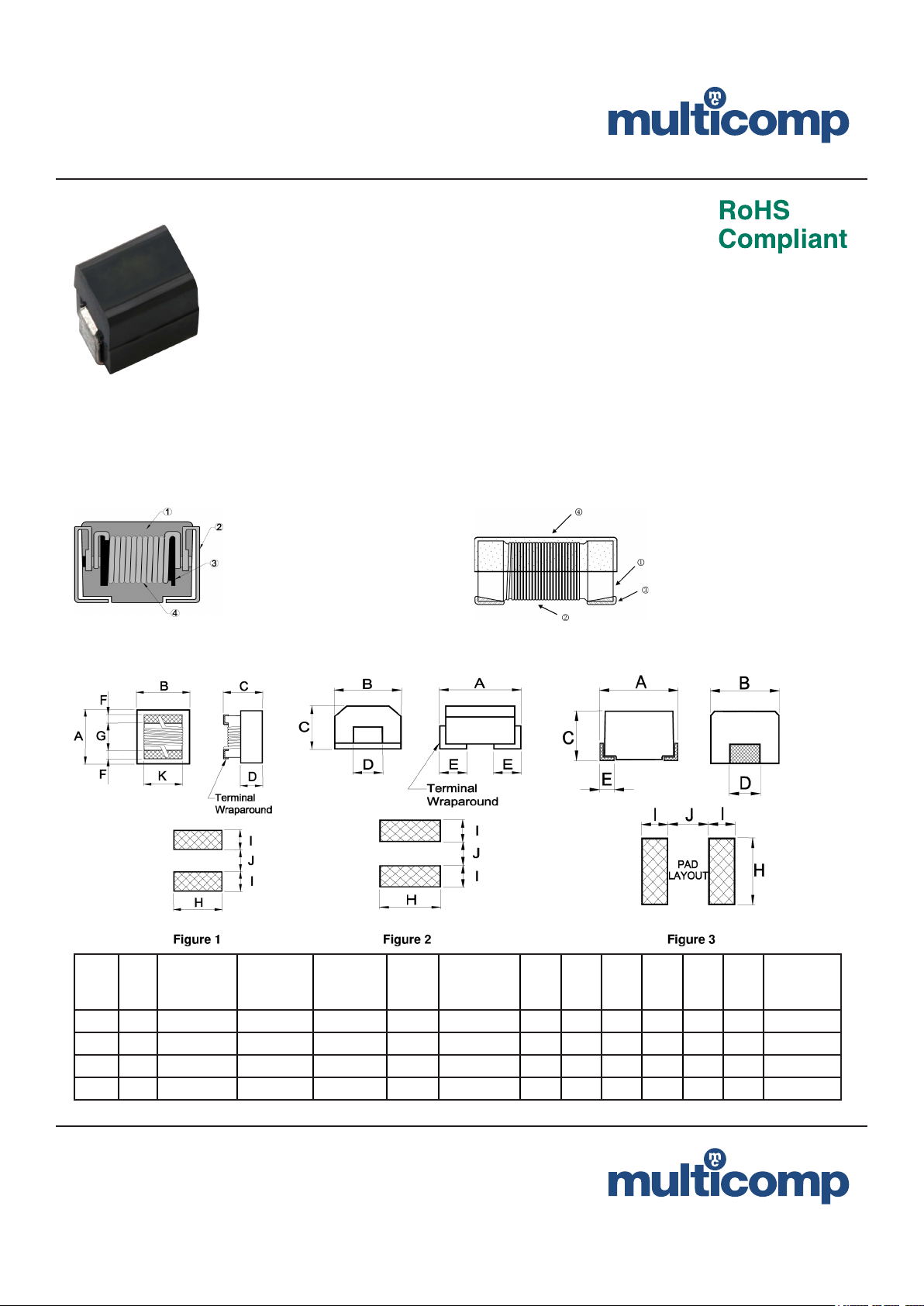

Wire Wound Chip Inductor
Ferrite
Features:
• Very strong solderability by ow soldering, soldering iron or wave soldering
• Highly accurate dimensions, can be mounted automatically
• Terminals are highly resistant to pull forces
• Highly resistant to mechanical shocks and pressure
• Highly reliable in environments of sudden temperature change and humidity.
Super Q characteristics
Applications:
Micro Televisions, Liquid Crystal Televisions, Video Cameras, Portable VCRs, Car Radios, Car Stereos, Thin Tape Radios,
Television Tuners, Mobile Telephones, Radio and Other Electronic Devices
Construction:
1. Molded resin
2. Electrode (Tinned Copper Wire)
3. Ferrite core
4. Magnet wire
1. Ferrite core
2. Magnet wire
3. Electrode (Ag/Pd+Ni+Sn)
4. UV Glue
Dimensions:
Size
(In)
Fig. A B C D E F G H I J K
Weight
(g)
(1000pcs)
0805 1 2.4 max 1.71 max 1.45 max 0.65 - 0.44 1.02 1.78 1.02 0.76 1.27 14
1008 1 2.92 max 2.79 max 2.1 max 1.2 - 0.45 1.52 2.54 1.02 1.27 2.03 30
1210 2 3.2±0.4 2.5±0.2 2.2 ±0.2 1±0.2 0.6 -0/+0.3 - - 1.4 1 1.8 - 40
1812 2 4.5±0.3 3.2±0.2 3.2 ±0.2 1.2 1 -0/+0.3 - - 1.6 1.5 2.2 - 160
Dimensions : Millimetres
