The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Nov 12, 2015
1

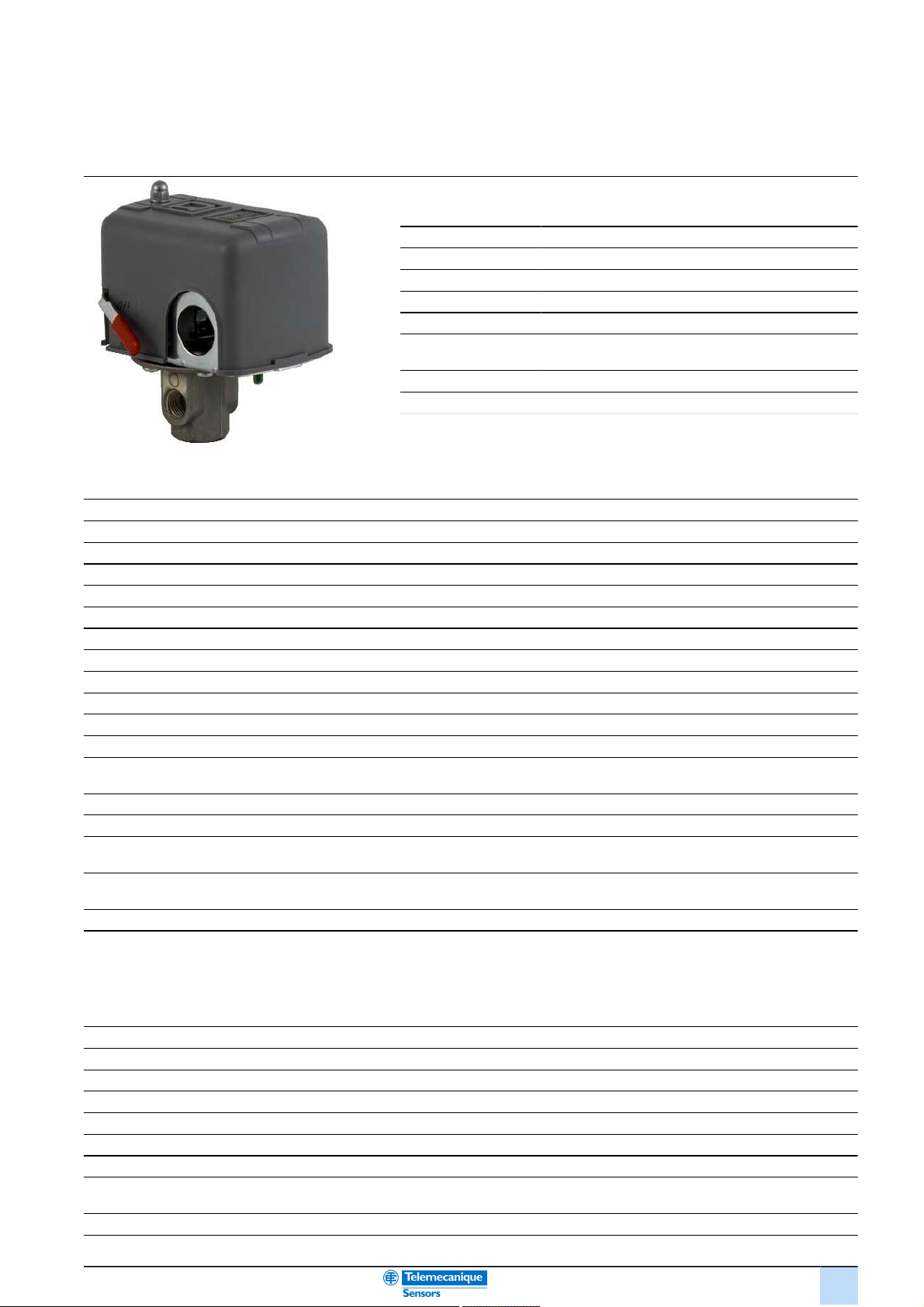

Product data sheet
Characteristics
9013FHG2J27M1XZ22
air compressor switch 9013FH - fixed
differential - Off at 100 psi - low hp
Main
Range of product Square D Pumptrol
Pressure sensor name 9013FH
Pressure sensor size 100 psi
Value of setting Off at 100 psi
Electrical circuit type Power circuit
Product specific appli-
cation
Control small electrically driven air compressors
Quantity per set 1
Type of packing Individual
Complementary
Pressure sensor type Electromechanical pressure switch
Controlled fluid Air (-22...257 °F)
Adjustable range on rising pressure 40...100 psi
Approximate adjustable differential 20 psi
Destruction pressure 220 psi
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Fixed differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Cable entry number 2 0.88 in cable entries with 0.84 in across flats UL 508
Electrical connection Screw-clamp terminals, clamping capacity: 5.261 mm²
Screw-clamp terminals, clamping capacity: 10 AWG
Fluid connection type 0.25 inch NPSF internal conforming to UL 508
Short circuit protection 20 A by cartridge fuse, type gG
Materials in contact with fluid Nitrile (Buna-N) or equivalent rubber diaphragm
Zinc plated steel or equivalent flange
Material Noryl thermoplastic resin or equivalent cover
Polypropylene cover
Operating position Any position
Motor power kW 0.75 kW (1 hp) at 575 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 3 phases
1.5 kW (2 hp) at 115 V AC, 3 phases
1.1 kW (1.5 hp) at 115 V AC, 1 phase
1.5 kW (2 hp) at 230 V AC, 1 phase
Electrical durability 100000 cycles at 10 cyc/mn
Mechanical durability 300000 cycles
Terminal block type 4 terminals
Operating rate 10 cyc/mn
[Ui] rated insulation voltage 575 V conforming to UL 508
Product weight 1 lb(US)
Repeat accuracy +/- 3 %
Terminals description ISO n°1 L1-T1
L2-T2
Width 3.1 in
